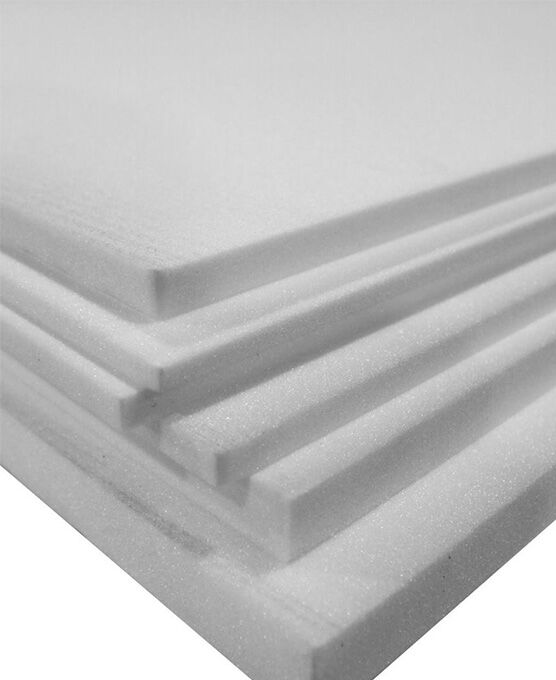

Rohacell - Foam Core - IGF 31kg/m^3 - 24 x 48 x 0.710 inch

Name: Rohacell - Foam Core - IGF 31kg/m^3 - 24 x 48 x 0.710 inch
SKU: roh-igf31-0710-24-d
Price: 235.99 USD
Availability: InStock

P/N: ROH-IGF31-0710-24-D

Available On Backorder

0.710" x 24" x 48" ◾ IGF 31kg/m^3

1 - 2

$235.99

3 - 7

$226.79

8 +

$216.79

Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.

Rohacell - Foam Core - IGF 31kg/m^3 - 24 x 48 x 0.710 inch

Additional Information

Units:

Cell Size	0.01
Width	24.0
Thickness	0.71
Length	48
Length (max continuous)	48.0
Areal Density	0.115
Volumetric Density	0.00112
Weight	0.916

Engineering Properties

All laminate properties and mechanical calculations are based on Classical Lamination Theory and should be used as a reference only. Rock West Composites does not guarantee these properties or calculations.

Units:

Avg EX Young's Modulus	5220.0
Avg EY Young's Modulus	5220.0
GXY Shear Modulus	1885.0
X Tensile Yield Strength	58.0
X Compressive Yield Strength	58.0
XY Shear Strength	58.0

Note:

"X" is along the length of a tube, rod, plate, or panel.
"Y" is around the perimeter of a tube, perpendicular to the length of pultruded parts, or along the width of a plate or panel.

Layup Orientation

ROH-IGF31-0710-24-D

Ply #	Orientation (degrees)	Location

0° fibers maximize bending stiffness and run along the length of the part. Consider bending a tube over your knee.
45° fibers maximize torsional stiffness and are typically plied together in an opposing manner, i.e. ±45°. Consider twisting a tube like a vehicle's driveshaft.
90° (or "hoop") fibers maximize crushing stiffness and generally assist in overall durability. Consider laying a tube on the ground and stepping on it.
