Tube - Pultruded Unidirectional - 0.039 x 0.079 x 78 Inch

Name: Tube - Pultruded Unidirectional - 0.039 x 0.079 x 78 Inch
SKU: t-rnd-078
Availability: InStock

P/N: T-RND-078

Availability: 348

P/N: T-RND-078

Availability: 348

1 - 43

$14.99

44 - 101

$11.79

102 - 258

$10.59

259 +

$9.39

Quantity

Contact Info

First Name

Last Name

Phone Number

Company

Units:

Project Details

Quantity Needed

Quantity must be greater than 1.

Full Length

Custom Length

Length ([tolerance value] max)

Please select a valid length.

Precision of Measurement

±[tolerance value]

Please select a tolerance option.

No Sanding - Product comes in original finish
Standard Sanding - Matte, smooth finish that is paint/bond ready
- ~0.005 reduction on outer diameter (OD)."
- This removes the outer cello wrap gloss finish.
Custom Sanding - Need to meet a specific outer diameter
- Sand outer diameter to specified thickness.
- Patterns will likely distort in appearance
Final OD ([min] - [max])
Please select a value within the allowed range.
Sanding Tolerance Options:
- ±[tolerance value]
Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Additional Notes or Services Needed (Assembly, Bonding, Etc.) Timeline

Description

Pultruded unidirectional tubes are manufactured through a pultrusion process whereby all fibers are oriented in the "0" degree direction. Because of the fiber orientation this tube provides strength and rigidity along the axis of rod however these products are not good for torque transfer OR crush resistance. Pultruded tube is great for reinforcing structures. The pultrusion process guarantees an accurate design and measurement control, perfectly aligned fibers and a smooth surface.

Features & Benefits

The pultrusion process shows great similarities with the extrusion of e.g. aluminum and thermoplastic plastics. However, instead of injection molding the plastic material, the pultrusion process continuously pulls fibers from rolls, which are then wetted with a matrix material (usually a thermosetting resin like epoxy resin). Subsequently, they are pulled through a heated die, which determines the shape of the profile. Polymerisation of the resin takes place in the die, forming a rigid profile with a diameter corresponding to that of the die and a length that is endless, in theory.

The technology is suitable for all types of fibers or a combination of fiber types. A high fiber-volume content is feasible, which makes it possible to reach a high specific rigidity and strength of the profiles. The serial character and the controllability of the process ensure a good price/quality ratio.

Additional Information

Units:

P/N	T-RND-078
Application	Bending
Finish	Sanded Smooth Matte
HTS - Harmonized Tariff Code	6815.13.0000

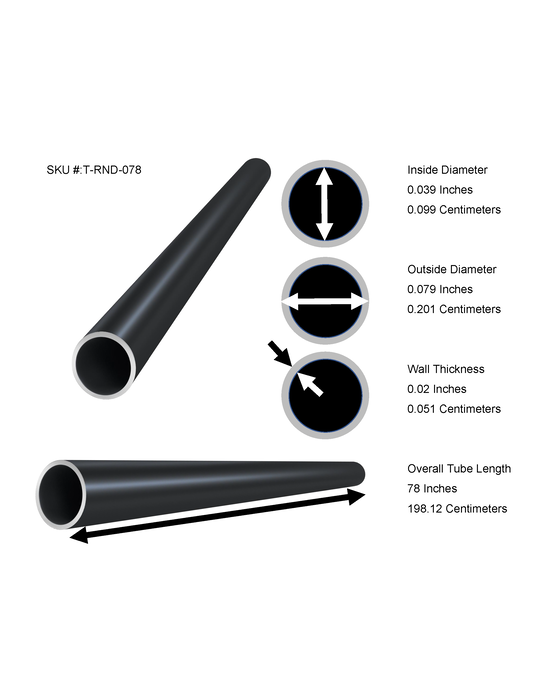

Inside Dimension	0.039
Length	78
Materials	Standard Modulus Carbon
OD	0.079
Outside Dimension	0.079
Thickness	0.02
Weight	0.02

Technical Data

We cannot supply test or strength data for this product.

Material Data Sheet

Download PDF
