Plate - Carbon Fiber - Quasi Unidirectional 0.055" / 1.4mm thick
Click to view and choose plate sizes available. For plates 24" x 48" or larger, base shipping charge will satisfies most orders, addt'l charges may be required.
Carbon Fiber "Quasi - Directional" Plate
Rock West's resin infused quasi-directional plate offers superior stiffness in the 0° direction and a very unique aesthetic while maintaining some structural properties in the 90° direction to reduce the chance of the plate splitting. This plate is ~2x stiffer than our standard all fabric plate when tested in the 0° direction. In the 90° direction, stiffness reduces by a factor of 0.6x.

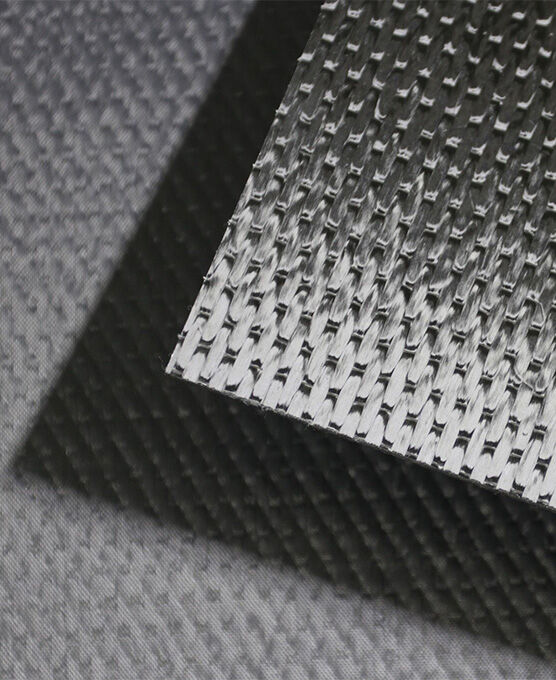

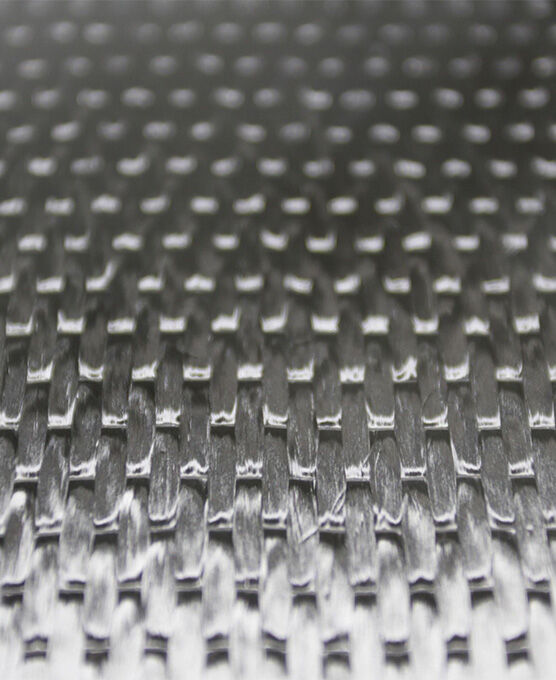

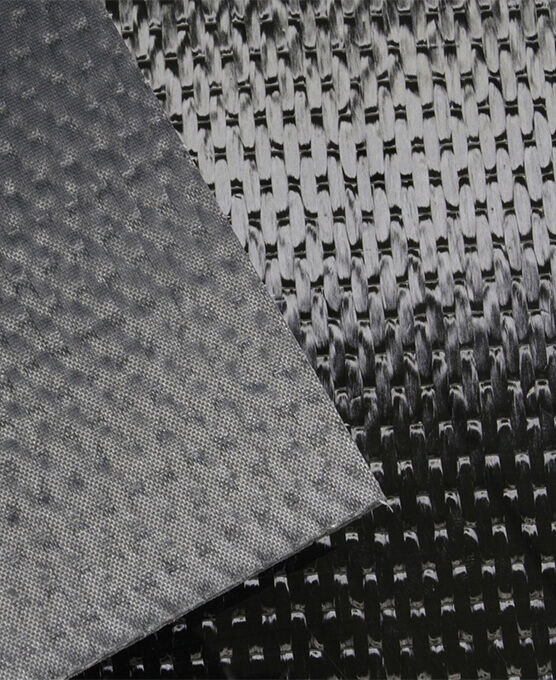

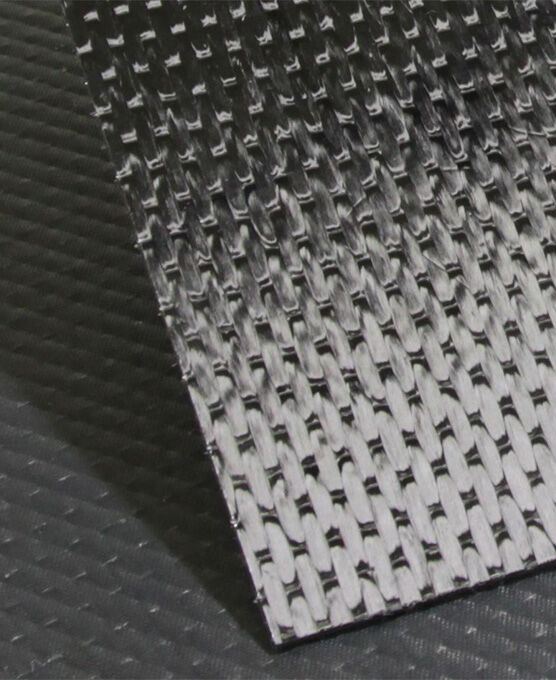

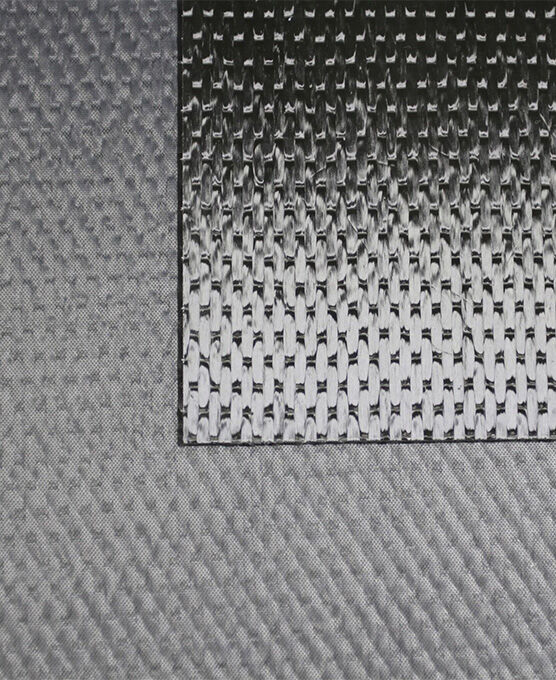

The first thing you may notice about this plate is its unique aesthetic. It has a woven plate appearance since the individual "tows" of carbon fiber are held in place with a very small plastic"string". This string is necessary for the uni fiber to maintain straightness during the resin infusion process.

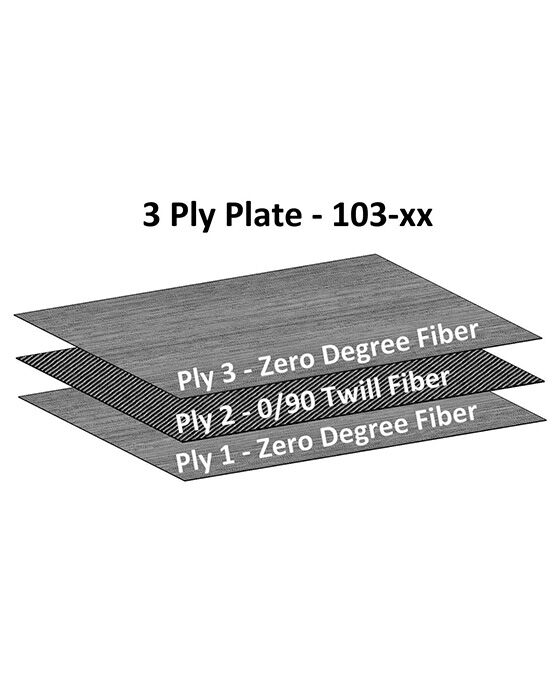

Our 103-xx plate product has 3 plies of carbon fiber. [0/(0/90/0] where the middle ply is our 12k woven twill carbon fiber fabric.
You may also need
Additional Information
| P/N | 103-66 | 103-11 | 103-22 | 103-44 | 103-410 |
|---|---|---|---|---|---|
| Materials | Standard Modulus Carbon | Standard Modulus Carbon | Standard Modulus Carbon | Standard Modulus Carbon | Standard Modulus Carbon |
| Pattern | Unidirectional | Unidirectional | Unidirectional | Unidirectional | Unidirectional |
| Color | Black | Black | Black | Black | Black |
| Finish | Gloss / Matte | Gloss / Matte | Gloss / Matte | Gloss / Matte | Gloss / Matte |
| Panel Thickness | 0.055000 | 0.055000 | 0.055000 | 0.055000 | 0.055000 |
| Plate / Panel Size | 6" x 6" / 152.4mm x 152.4mm | 12" x 12" / 304.8mm x 304.8 mm | 24" x 24" / 609.6mm x 609.6mm | 955 | 48" x 120" / 1219.2mm x 3048mm |
| Width | 6.0 | 12.0 | 24.0 | 48.0 | 48.0 |
| Thickness | 0.055 | 0.055 | 0.055 | 0.055 | 0.055 |
| Length | 6 | 12 | 24 | 48 | 120 |
| Length (max continuous) | 6.0 | 12.0 | 24.0 | 48.0 | 120.0 |
| Areal Density | 0.436 | 0.436 | 0.436 | 0.436 | 0.436 |
| Volumetric Density | 0.055 | 0.055 | 0.055 | 0.055 | 0.055 |
| Weight | 0.109 | 0.436 | 1.742 | 6.97 | 17.424 |
| Primary Fiber | Tenax HTS40 | Tenax HTS40 | Tenax HTS40 | Tenax HTS40 | Tenax HTS40 |
| Primary Resin / Hardener | Rhino 1411/4111 | Rhino 1411/4111 | Rhino 1411/4111 | Rhino 1411/4111 | Rhino 1411/4111 |
Engineering Properties
All laminate properties and mechanical calculations are based on Classical Lamination Theory and should be used as a reference only. Rock West Composites does not guarantee these properties or calculations.
| P/N | 103-66 | 103-11 | 103-22 | 103-44 | 103-410 |
|---|---|---|---|---|---|
| Avg EX Young's Modulus | 1.4E7 | 1.4E7 | 1.4E7 | 1.4E7 | 1.4E7 |
| Avg EY Young's Modulus | 5590000.0 | 5590000.0 | 5590000.0 | 5590000.0 | 5590000.0 |
| GXY Shear Modulus | 692300.0 | 692300.0 | 692300.0 | 692300.0 | 692300.0 |
| X Tensile Yield Strength | 152600.0 | 152600.0 | 152600.0 | 152600.0 | 152600.0 |
| X Compressive Yield Strength | 132300.0 | 132300.0 | 132300.0 | 132300.0 | 132300.0 |
| Y Tensile Yield Strength | 40770.0 | 40770.0 | 40770.0 | 40770.0 | 40770.0 |
| Y Compressive Yield Strength | 53480.0 | 53480.0 | 53480.0 | 53480.0 | 53480.0 |
| XY Shear Strength | 12120.0 | 12120.0 | 12120.0 | 12120.0 | 12120.0 |
| CTEX | 5.17E-07 | 5.17E-07 | 5.17E-07 | 5.17E-07 | 5.17E-07 |
| CTEY | 3.37E-06 | 3.37E-06 | 3.37E-06 | 3.37E-06 | 3.37E-06 |
| Poisson's Ratio vXY | 0.062 | 0.062 | 0.062 | 0.062 | 0.062 |
| Poisson's Ratio vYX | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 |
- "X" is along the length of a tube, rod, plate, or panel.
- "Y" is around the perimeter of a tube, perpendicular to the length of pultruded parts, or along the width of a plate or panel.
