Dry Woven Fabric – Carbon Fiber – BIMAX “Heavy-Heavy” Bi-axial +/-45 Twill – 713 gsm – 52” Wide
Pricing Listed Is Per Yard - Sold In Continuous Format
1
$113.99
2
-
4
$108.79
5
-
9
$102.59
10
+
$97.39
~50 LYD Roll (52" wide x 1800" long)
1
$4,231.99
2
-
3
$4,069.79
4
+
$3,893.59
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.

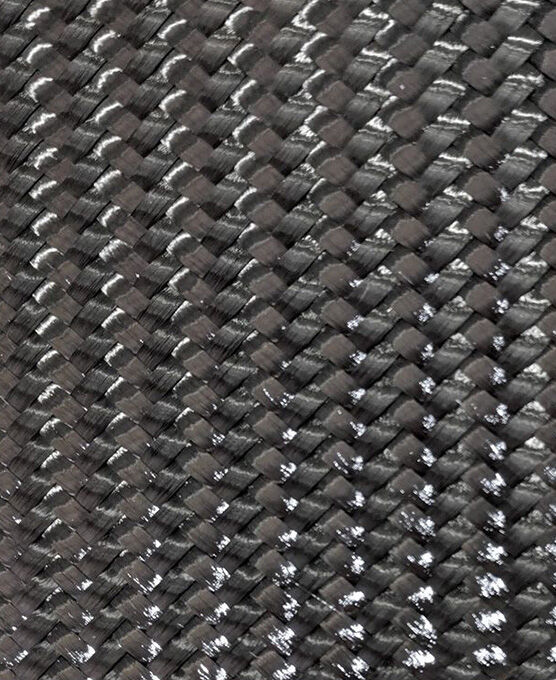

BIMAX Carbon Fiber Fabric

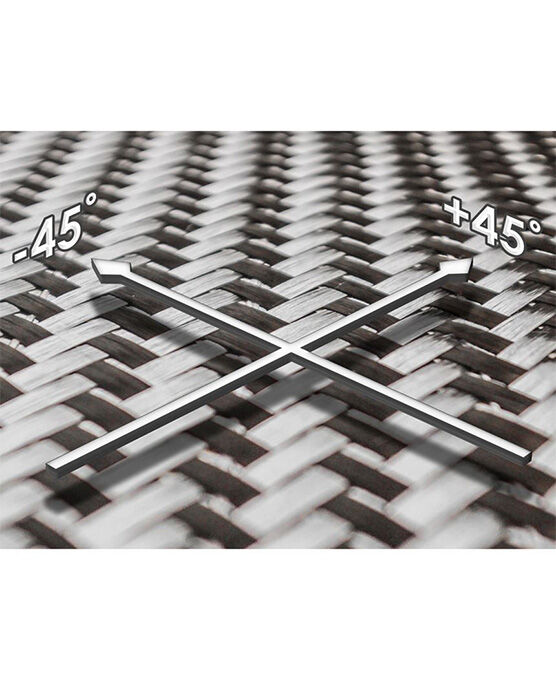

A&P's BIMAX™ "Heavy-Heavy" fabric is a great "heavy weight, ie thick "off-axis" braid with fibers running +45° and -45°. In this configuration, one can quickly and easily layup fibers along axis otherwise made difficult with traditional 0° & 90° twill woven fabrics. With this material one is able to more quickly build up thickness while also being afforded the flexibility of more easily matching common layup configurations where quasi-isotropic laminates are commonly required.
Stronger, lighter and more efficient, BIMAX™ enables significant cost savings and superior performance.
You may also need
Additional Information
| P/N | 13033-D | 13033-D-FULLROLL |
|---|---|---|
| Materials | Standard Modulus Carbon | Standard Modulus Carbon |
| Pattern | Braided | Braided |
| Color | Black | Black |
| Thickness | 0.04 | 0.04 |
| Length | 0 | 0 |
| Weight | 3.0 | 65.0 |
