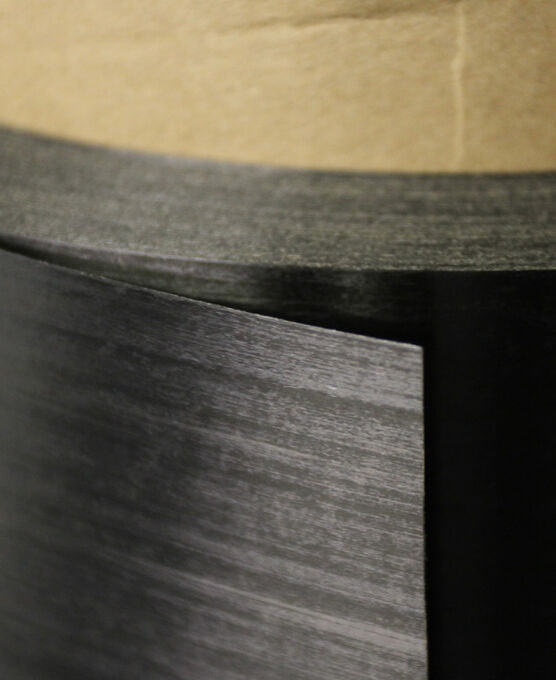

Prepreg - Carbon Fiber + 250F Resin System - 39.37" Wide x 0.006" Thick - Standard Modulus - Unidirectional

productname image number 0
productname image number 0
6" x 6" Swatch ◾ Ships Insulated & Frozen
P/N: 14002-SAMPLE
$28.99
LYD. x Roll Width ◾ Provided In Continuous Length
P/N: 14002-LYD
Available Now: 1
1
$49.99
2 - 4
$47.79
5 - 9
$45.59
10 +
$43.39
Full Roll ◾ 61 Lb. Per Roll
P/N: 14002-D-FULLROLL
Available Now: 1
1
$2,576.99
2 - 3
$2,478.79
4 - 7
$2,370.59
8 +
$2,266.39
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
Efficient, Clean & Easy to Use - Full Rolls Available

You may also need

Features & Benefits

PROPreg is a prepreg that processes like the best of our aerospace prepregs. This carbon fiber + resin system is designed to imitate the properties, tack and match the superb out-life afforded by costlier prepregs but at an approachable price point. In some cases, our PROPreg might even beat a "qualified aerospace" prepreg!

You can use our prepregs any number of ways including, but not limited to, autoclave, press, vacuum, and compaction tapes. Since most shops do not have access to an autoclave or heated press, the latter two options are mostly used for smaller operations. Due to this prepreg’s specific uni-directional fiber orientation, you would use this prepreg in designs that need increased strength and stiffness in one direction. The fiber gives you medium stiffness, medium strength and maximum versatility.



Prepregs have special policies related to returns and shipping. Please review them here prior to order.

Product Specifications

Common Conversions:

Per Linear Yard (1 lyd =) 0.46 lbs (w/out backing paper)
9.84 ft2
0.91 m2



Per Full Roll (1 =) 133 lyds
122 m
61 lbs (w/out backing paper)
1312 ft2
122 m2



Additional Information

P/N 14002-SAMPLE 14002-LYD 14002-D-FULLROLL
Materials Standard Modulus Carbon Standard Modulus Carbon Standard Modulus Carbon
Pattern Unidirectional Unidirectional Unidirectional
Color Black Black Black
Length 0 0 0
Weight 0.01 0.46 61.0
Width 39.37 39.37
Cure Ply Thickness (CPT) 0.006" 0.006"
Fiber Areal Weight 150 GSM 150 GSM
Prepreg Overall Weight 227 GSM 227 GSM
Fiber Type (brand) T700 (Toray) T700 (Toray)
Recommended Cure Temperature 250F (121C) 250F (121C)
Shelf Life @ 0°F / 40°F / 70°F 6 Mo / 90 Days / 21 Days 6 Mo / 90 Days / 21 Days
Resin Content 35% 35%
Resin System Propreg 250F Propreg 250F

Technical Specifications

Fiber Data Sheet

Download PDF

FIBER & RESIN SYSTEM DATA SHEET

Download PDF
