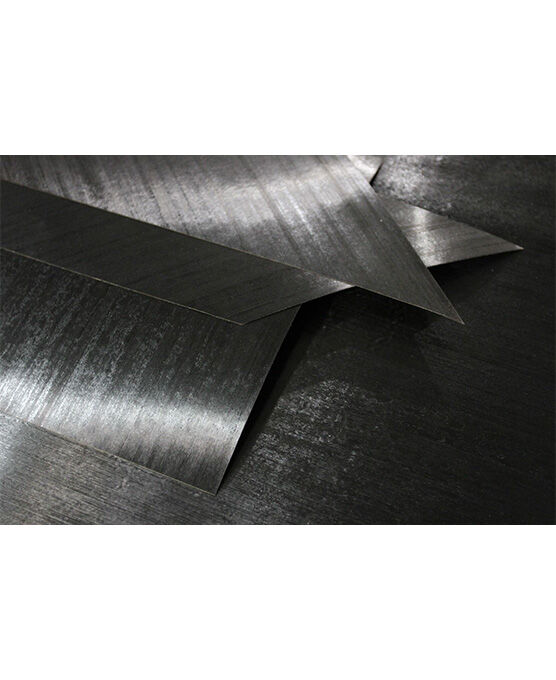

Prepreg - Carbon Fiber (Grafil TR50S) & Epoxy (Newport 301) - 39.37" Wide x 0.0046" Thick - Standard Modulus - Unidirectional - (190 gsm OAW) - 250F Resin - EXPIRED MATERIAL

78 Lb. Roll ◾ 40" Wide
P/N: 14003-D-FULLROLL
$4,248.99
Linear Yard. x Roll Width ◾ Provided In Continuous Length
P/N: 14003-LYD
$49.99
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
Efficient, Clean & Easy to Use - Full Rolls Available

EXPIRED MATERIAL.

If New material is desired, it can be available with 4-6 week lead time. Please call Customer Service at (801)566-3402 for details.

Features & Benefits

You can use our prepregs any number of ways including, but not limited to, autoclave, press, vacuum, and compaction tapes. Since most shops do not have access to an autoclave or heated press, the latter two options are mostly used for smaller operations. Due to this prepreg’s specific uni-directional fiber orientation, you would use this prepreg in designs that need increased strength and stiffness in one direction. The fiber gives you medium stiffness, medium strength and maximum versatility.



Prepregs have special policies related to returns and shipping. Please review them here prior to order.

Product Specifications

Common Conversions:

Per Linear Yard (1 lyd =) 0.38 lbs (w/out backing paper)
9.84 ft2
0.91 m2



Per Full Roll (1 =) 204 lyds
186 m
78 lbs (w/out backing paper)
2004 ft2
186 m2



Additional Information

P/N 14003-D-FULLROLL 14003-LYD
Materials Standard Modulus Carbon Standard Modulus Carbon
Pattern Unidirectional Unidirectional
Color Black Black
Width 39.37 39.37
Cure Ply Thickness (CPT) 0.0046" 0.0046"
Length 0 0
Fiber Areal Weight 120 GSM 120 GSM
Prepreg Overall Weight 190 GSM 190 GSM
Weight 78.0 0.38
Fiber Type (brand) TR50S (Grafil) TR50S (Grafil)
Recommended Cure Temperature 250F (121C) 250F (121C)
Shelf Life @ 0°F / 40°F / 70°F 6 Mo / 90 Days / 21 Days 6 Mo / 90 Days / 21 Days
Resin Content 35% 35%
Resin System Newport 301 Newport 301

Technical Specifications

TR50S Standard Modulus Carbon Fiber Data Sheet

Download PDF

Newport 301 - Resin System Data Sheet

Download PDF
