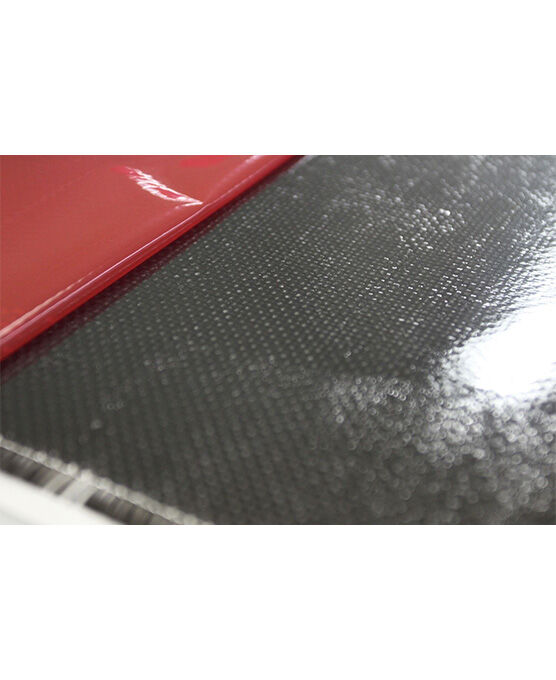

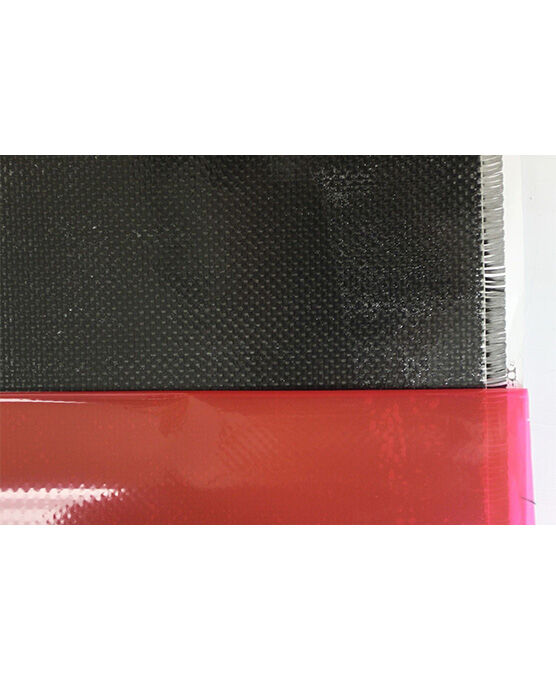

Prepreg - Carbon Fiber (Hexcel AS4) Epoxy (Newport 321) - 50" Wide x 0.01" Thick - Standard Modulus - 3k Plain Weave (356 gsm OAW)

productname image number 0
productname image number 1
productname image number 2
productname image number 0
productname image number 1
productname image number 2
Linear Yard x Roll Width Increments ◾ Provided In Continuous Length
P/N: 14014-LYD
Available Now: 55
1
$171.99
2 - 4
$165.79
5 - 9
$155.59
10 +
$149.39
Full Roll ◾ ~50 LYD per Roll◾ ~150 Lft. Per Roll ◾ 600 to 650 Sqft.
P/N: 14014-D-FULLROLL
1
$6,496.99
2 - 3
$6,247.79
4 +
$5,976.59
Estimated lead time for quantities greater than what is Available Now is expected to be under 2 weeks.
All material expires 08/16 ◾ Efficient, Clean & Easy to Use ◾ Full Rolls Available

You may also need

Features & Benefits

You can use our 3K plain weave prepregs any number of ways including, but not limited to, autoclave, press, vacuum, and compaction tapes. Since most shops do not have access to an autoclave or heated press, the latter two options are mostly used for smaller operations. Due to this plain weave prepreg’s specific weave fiber orientation, you would use this prepreg in designs that need increased strength and stiffness in 0° & 90° directions. The fiber gives you medium stiffness, medium strength and maximum versatility.


Prepregs have special policies related to returns and shipping. Please review them here prior to order.

Product Specifications

Common Conversions:

Per Linear Yard (1 lyd =) 0.91 lbs (w/out backing paper)
12.5 ft2
1.16 m2



Per Full Roll (1 =) 50 lyds
46 m
46 lbs (w/out backing paper)
625 ft2
58 m2



Additional Information

P/N 14014-LYD 14014-D-FULLROLL
Materials Standard Modulus Carbon Standard Modulus Carbon
Pattern 3k Plain Weave 3k Plain Weave
Color Black Black
Width 50.0 50.0
Cure Ply Thickness (CPT) 0.010" 0.010"
Length 0 0
Fiber Areal Weight 196 GSM 196 GSM
Prepreg Overall Weight 356 GSM 356 GSM
Weight 0.91 46.0
Fiber Type (brand) AS4 (Hexcel) AS4 (Hexcel)
Recommended Cure Temperature 250F (121C) 250F (121C)
Shelf Life @ 0°F / 40°F / 70°F 6 Mo / 90 Days / 21 Days 6 Mo / 90 Days / 21 Days
Resin Content 45% 45%
Resin System Newport 321 Newport 321

Technical Data

AS-4 3K Plain Weave Carbon Fiber Data Sheet

Download PDF

Newport 321 - Resin System Data Sheet

Download PDF
