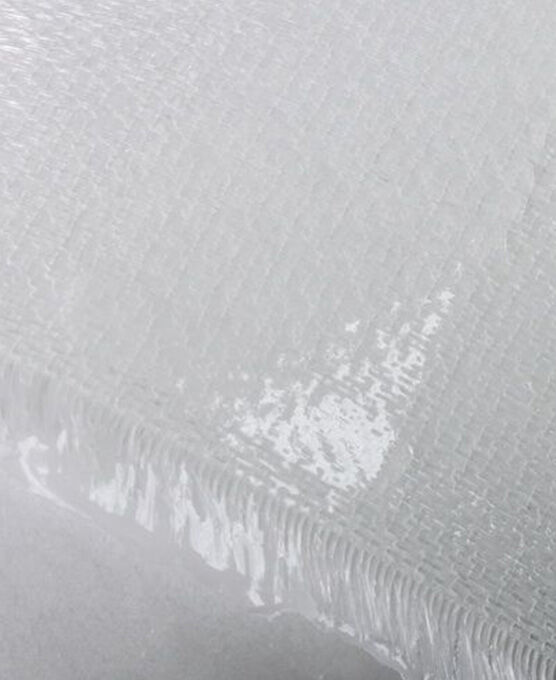

You can use our prepregs any number of ways including, but not limited to, autoclave, press, vacuum, and compaction tapes. Since most shops do not have access to an autoclave or heated press, the latter two options are mostly used for smaller operations. This Prepreg material is ideal for use as an isolative inner or outer ply on any project helping to prevent galvanic corrosion. At just 0.005" ply thickness, this woven scrim will also help eliminate "breakout" when drilling or machining your laminates. We use this material on the ID of all of our INFINITubeV tubes since most of these tubes will be drilled for button clips or locking pins of some kind.
Common Conversions:
| Per Linear Yard (1 lyd =) | 0.36 lbs (w/out backing paper) |
| 9.5 ft2 | |
| 0.88 m2 |
| Per Full Roll (1 =) | 60 lyds |
| 55 m | |
| 21.6 lbs (w/out backing paper) | |
| 570 ft2 | |
| 53 m2 |
| P/N | 14015-SAMPLE | 14015-LYD | 14015-D-FULLROLL |
|---|---|---|---|
| Materials | Fiberglass | Fiberglass | Fiberglass |
| Color | Clear | Clear | Clear |
| Length | 0 | 0 | 0 |
| Weight | 0.009 | 0.36 | 29.0 |
| Width | 38.0 | 38.0 | |
| Cure Ply Thickness (CPT) | 0.005" | 0.005" | |
| Fiber Areal Weight | 111 GSM | 111 GSM | |
| Prepreg Overall Weight | 185 GSM | 185 GSM | |
| Fiber Type (brand) | E-Glass (generic) | E-Glass (generic) | |
| Recommended Cure Temperature | 250F (121C) | 250F (121C) | |
| Shelf Life @ 0°F / 40°F / 70°F | 6 Mo / 90 Days / 21 Days | 6 Mo / 90 Days / 21 Days | |
| Resin Content | 40% | 40% | |
| Resin System | Newport 301 | Newport 301 |
