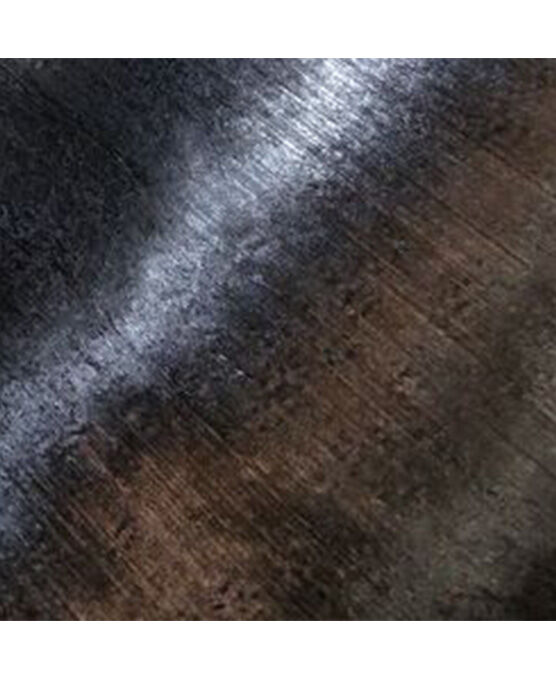

Prepreg - Carbon Fiber (Grafil MR60H) Epoxy (Newport 301) - 39.7" x 0.0046" Thick - Unidirectional Intermediate Modulus (174 gsm OAW) - 6" x 6" Swatch

productname image number 0
productname image number 0
P/N: 14019-SAMPLE
Available Now: 28

6" x 6" Swatch ◾ Ships Insulated & Frozen

P/N: 14019-SAMPLE
Available Now: 28
$29.99
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.
Efficient, Clean & Easy to Use - Full Rolls Available
Prepreg - Carbon Fiber (Grafil MR60H) Epoxy (Newport 301) - 39.7" x 0.0046" Thick - Unidirectional Intermediate Modulus (174 gsm OAW) - 6" x 6" Swatch

Additional Information

P/N 14019-SAMPLE
Brand Mitsubishi / Newport
Cure Ply Thickness (CPT) 0.0046"
Exportable No
Fiber Areal Weight 109 GSM
Fiber Type (brand) MR60H (Grafil)
Materials Intermediate Modulus Carbon
Prepreg Overall Weight 174 GSM
Recommended Cure Temperature 250F (121C)
Resin Content 37%
Resin System Newport 301
Shelf Life @ 0°F / 40°F / 70°F 6 Mo / 90 Days / 21 Days
Tensile Modulus, msi 42.0
Tensile Strength (ksi) 825.0
Weight 0.009
Width 39.37

Technical Data

MR60H FIBER DATA SHEET

Download PDF

RESIN SYSTEM DATA SHEET

Download PDF
