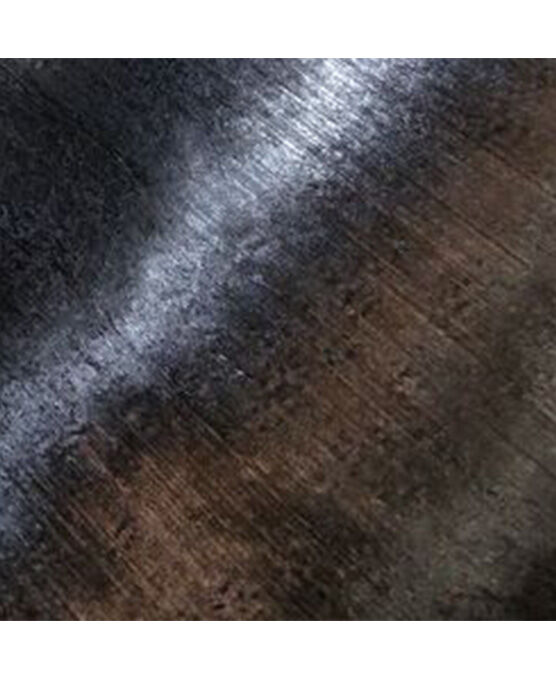

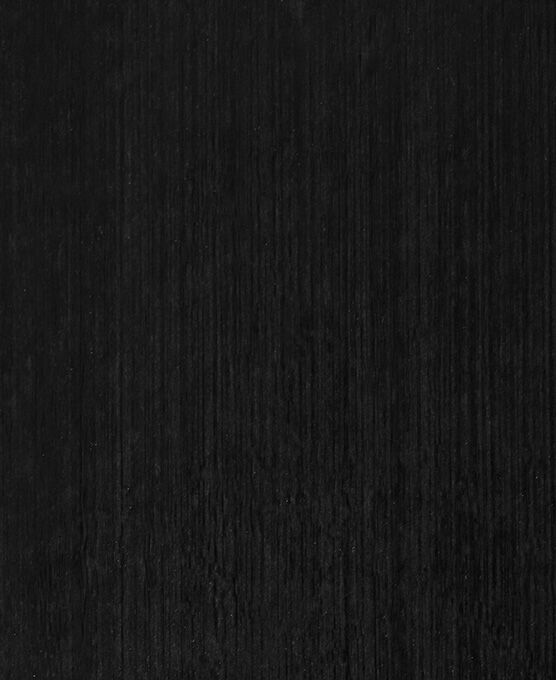

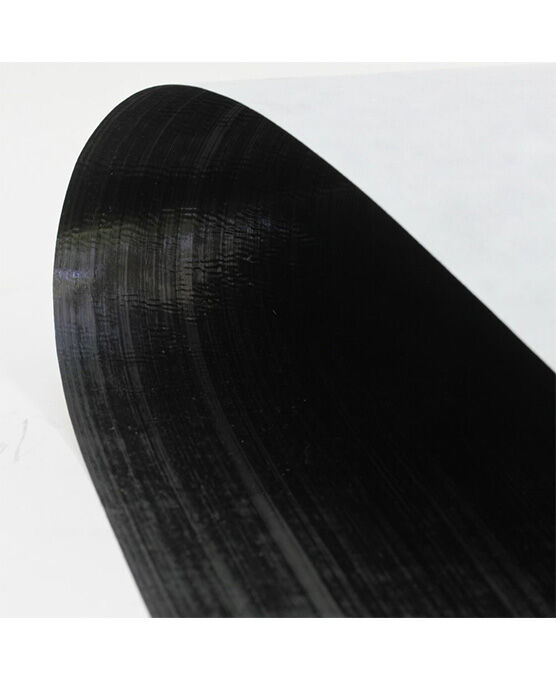

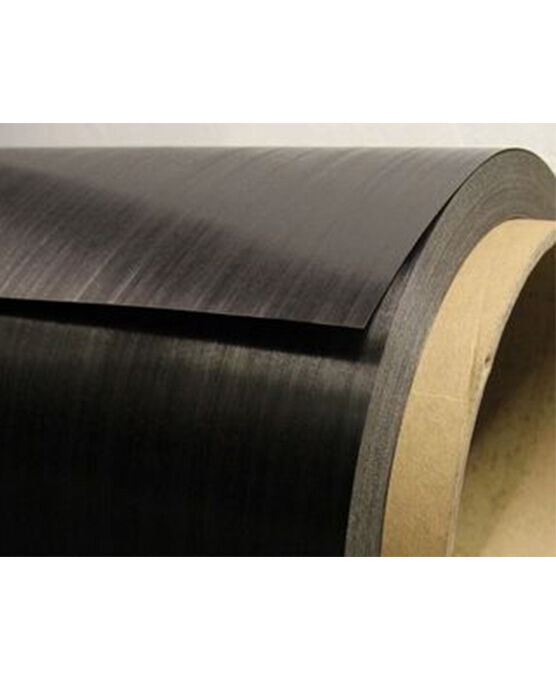

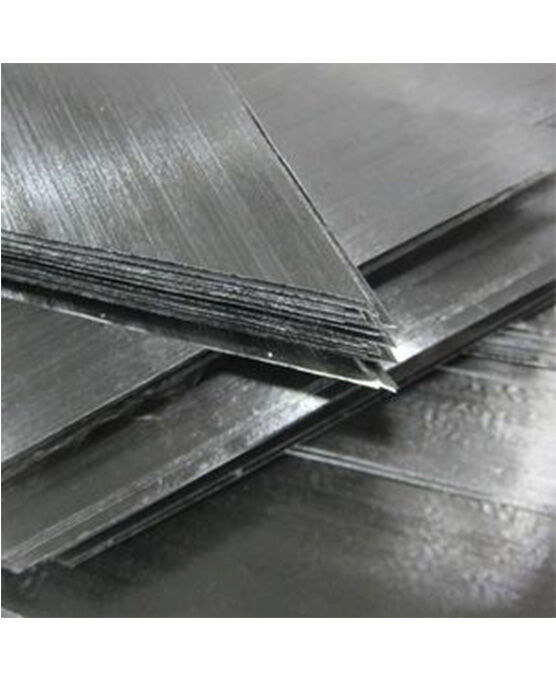

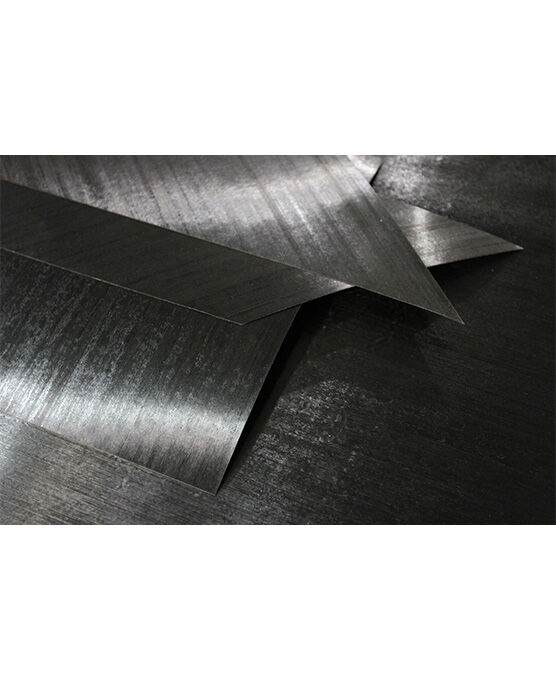

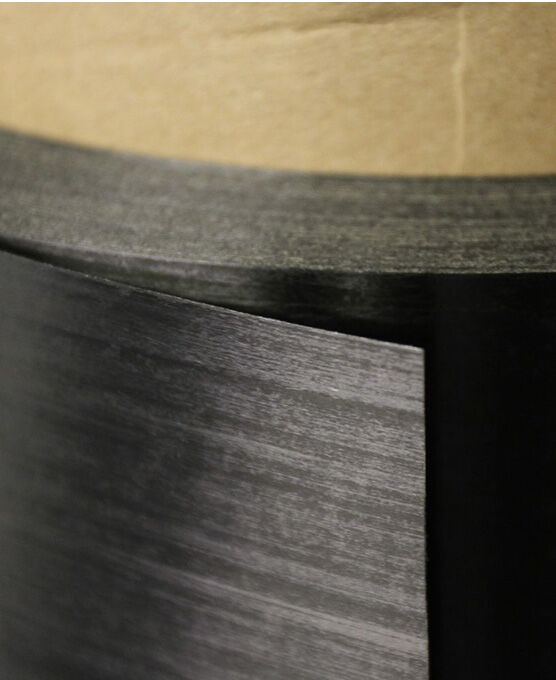

You can use our intermediate modulus prepregs any number of ways including, but not limited to, autoclave, press, vacuum, and compaction tapes. Since most shops do not have access to an autoclave or heated press, the latter two options are mostly used for smaller operations. Due to this unidirectional prepreg’s specific uni-directional fiber orientation, you would use this prepreg in designs that need increased strength and stiffness in one direction. The fiber is similar to our standard modulus with all the structural qualities but the intermediate modulus unidirectional fibers add increased stiffness and strength.
Common Conversions:
| Per Linear Yard (1 lyd =) | 0.47 lbs (w/out backing paper) |
| 9.84 ft2 | |
| 0.91 m2 |
| Per Full Roll (1 =) | 133 lyds |
| 122 m | |
| 63 lbs (w/out backing paper) | |
| 1320 ft2 | |
| 122 m2 |
| P/N | 14029-SAMPLE | 14029-LYD | 14029-D-FULLROLL |
|---|---|---|---|
| Application | |||
| Brand | Rock West Composites | Rock West Composites | Rock West Composites |
| Clearance | |||
| Color | |||
| Cure Ply Thickness (CPT) | 0.006" | 0.006" | |
| Exportable | Yes | Yes | Yes |
| Fiber Areal Weight | 150 GSM | 150 GSM | |
| Fiber Type (brand) | T800 (Toray) | T800 (Toray) | |
| Finish | |||
| Glass Transition (Tg, DMA) | |||
| Height | |||
| Major ID | |||
| Major OD | |||
| Materials | Intermediate Modulus Carbon | Intermediate Modulus Carbon | Intermediate Modulus Carbon |
| Minor ID | |||
| Minor OD | |||
| Prepreg Overall Weight | 233 GSM | 233 GSM | |
| Recommended Cure Temperature | 250F (121C) | 250F (121C) | |
| Resin Content | 37% | 37% | |
| Resin System | Propreg 250F | Propreg 250F | |
| Shelf Life @ 0°F / 40°F / 70°F | 6 Mo / 90 Days / 21 Days | 6 Mo / 90 Days / 21 Days | |
| Shipping Weight per Unit (includes backing paper and or core) | |||
| Tensile Modulus, msi | 42.7 | 42.7 | |
| Tensile Strength (ksi) | 850.0 | 850.0 | |
| Weight | 0.012 | 0.47 | 63.0 |
| Width | 39.37 | 39.37 |
