Efficient, Clean & Easy to Use, Standard Modulus

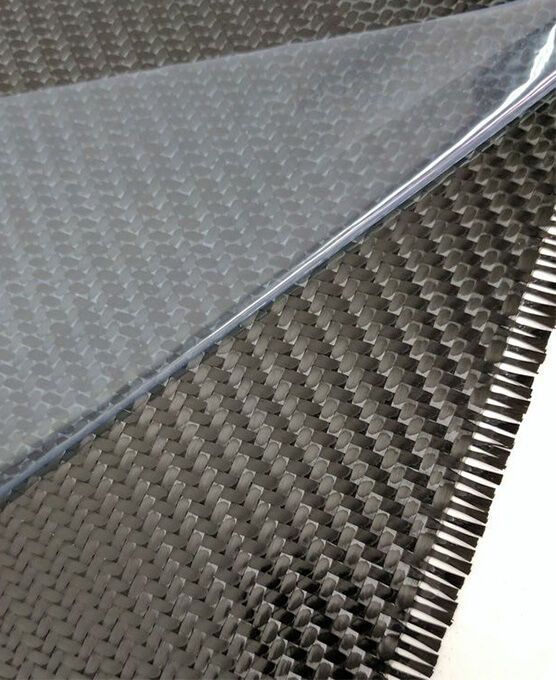

250F Resin ◾ 2x2 Twill Weave ◾ 0.011" Thick ◾ 39.4"(100cm) wide Efficient, Clean & Easy to Use
This product may require a 4-6 week lead time.
This amazing PROPreg (yes, it is a prepreg) processes like the best of our aerospace prepregs. Comparable to standard modulus carbon fiber prepregs with 250F cures, (eg. Newport 301 resin system etc.), this carbon fiber + resin system is designed to imitate the properties, tack and match the superb out-life afforded by the costlier prepregs. In many cases, our PROPreg might even beat other typical 250F cure systems out there!
You can use our prepregs any number of ways including, but not limited to, autoclave, press, vacuum, and compaction tapes. Since most shops do not have access to an autoclave or heated press, the latter two options are mostly used for smaller operations. Due to this prepreg’s specific 2x2 weave fiber orientation, you would use this prepreg in designs that need increased strength and stiffness in 0° & 90° directions. The fiber gives you medium stiffness, medium strength and maximum versatility.
Prepregs have special policies related to returns and shipping. Please review them here prior to order.
Common Conversions:
| Per Linear Yard (1 lyd =) | 0.94 lbs (w/out backing paper) |
| 12.5 ft2 | |
| 1.16 m2 |
| Per Half Roll (1 =) | 60 lyds |
| 55 m | |
| 44 lbs (w/out backing paper) | |
| 591 ft2 | |
| 55 m2 |
| P/N | 14033-SAMPLE | 14033-LYD | 14033-D-HALFROLL |
|---|---|---|---|
| Application | |||
| Brand | Rock West Composites | Rock West Composites | Rock West Composites |
| Clearance | |||
| Color | |||
| Cure Ply Thickness (CPT) | 0.011" | 0.011" | |
| Exportable | Yes | Yes | Yes |
| Fiber Areal Weight | 201 GSM | 201 GSM | |
| Fiber Type (brand) | T300 (Toray) | T300 (Toray) | |
| Finish | |||
| Glass Transition (Tg, DMA) | |||
| Height | |||
| Major ID | |||
| Major OD | |||
| Materials | Standard Modulus Carbon | Standard Modulus Carbon | Standard Modulus Carbon |
| Minor ID | |||
| Minor OD | |||
| Prepreg Overall Weight | 366 GSM | 366 GSM | |
| Recommended Cure Temperature | 250F (121C) | 250F (121C) | |
| Resin Content | 45% | 45% | |
| Resin System | Propreg 250F | Propreg 250F | |
| Shelf Life @ 0°F / 40°F / 70°F | 6 Mo / 90 Days / 21 Days | 6 Mo / 90 Days / 21 Days | |
| Shipping Weight per Unit (includes backing paper and or core) | |||
| Tensile Modulus, msi | 33.4 | 33.4 | |
| Tensile Strength (ksi) | 512.0 | 512.0 | |
| Weight | 0.02 | 0.94 | 44.0 |
| Width | 39.37 | 39.37 |
