Roll Wrapping Compaction Tape - Stage 2 - Cello Tape - 300F Nylon (Yellow) - 1 Roll (~2 lbs) - 0.75" wide

productname image number 0
productname image number 1
productname image number 0
productname image number 1
P/N: 1538-D
Generally Available

1 - 2
$26.99
3 - 5
$24.79
6 +
$23.59
This product is generally available to ship quickly except in large quantities.

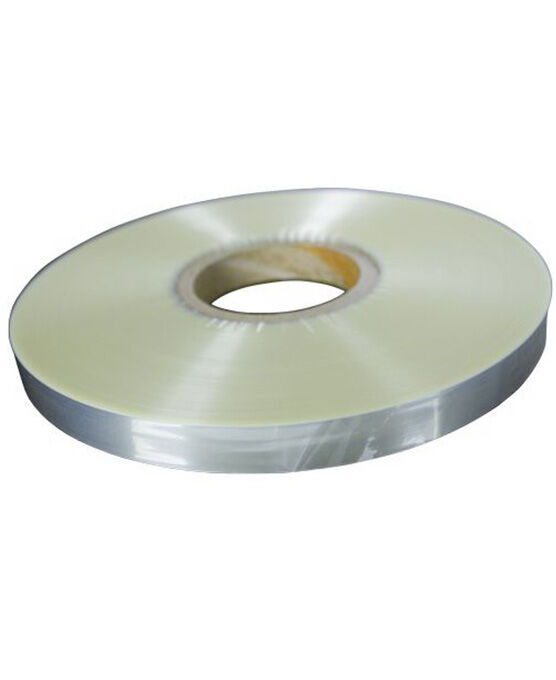

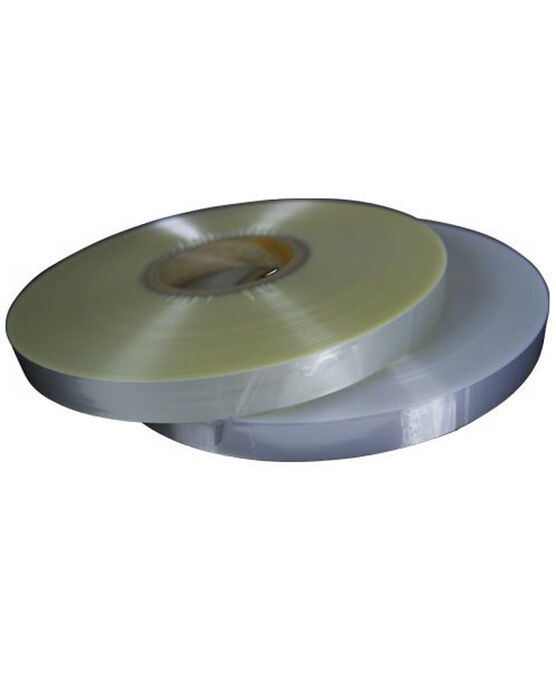

Yellow compaction tape

Dartek T-420 is a uniaxially oriented nylon 66 film designed for use as a mold release sheet for creating composite parts. Dartek nylon offers good release,  excellent tensile strength, high heat resistance and shrink characteristics.

FILM DESCRIPTION: DARTEK T-420 IS A UNIAXIALLY ORIENTED NYLON 66 FILM DESIGNED FOR THE USE AS MOLD RELEASE SHEET FOR THE COMPOSITE TUBING INDUSTRY. DARTEK NYLON OFFERS GOOD RELEASE, EXCELLENT TENSILE STRENGTH, HIGH HEAT RESISTANCE AND SHRINK CHARACTERISTICS. THE

TECHNICAL PROPERTIES (100 GA)

THICKNESS: 1 MIL (25 MIC)

TENSION PROPERTIES: 5/8” WIDTH

ULTIMATE TENSILE: 18.29

TENSILE STRENGTH (@BREAK PSI): 24390

ELONGATION: 13.6%

MELT POINT: 258 DEGREES C

TREATMENT: NO TREATMENT (42 DYNE LEVEL)

SHRINK: (1 HOUR @ 250 DEGREE F) 1.84%

You may also need

Additional Information

Color Yellow
Thickness 0.039
Length 0
Weight 1.92

Technical Data
