White/Clear

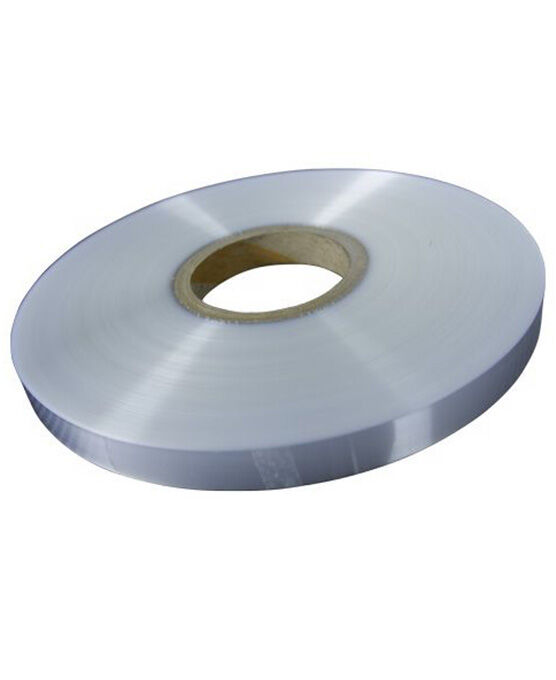

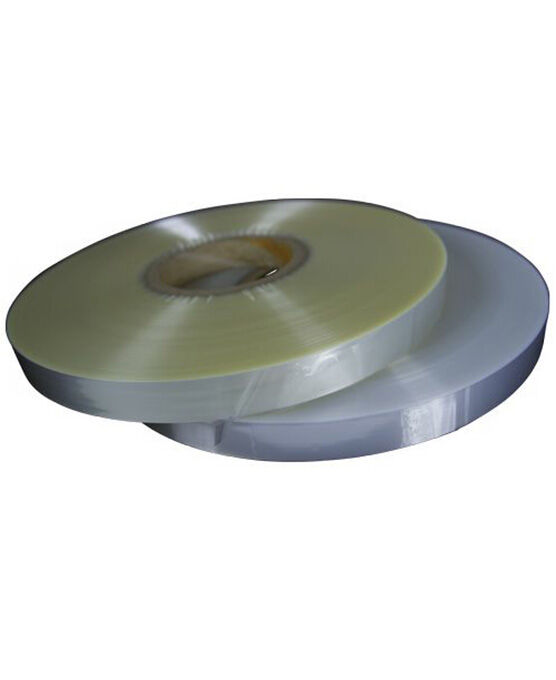

Use our Shrink Tape Stage 1 directly against prepreg in your curing process. Stage 1 is naturally non-stick so it will release easily off of cured prepreg post cure. Stage 2 then is applied on top in order to provide even more shrinking force (where stage 2 can be wrapped tighter during the application process prior to cure)
FILM DESCRIPTION: B120-456 IS A BIAXALLY ORIENTED POLYPROPYLENE FILM DESIGNED TO BE USED IN THE MANUFACTURE OF CARBON FIBER COMPOSITE TUBING, IE: FISHING RODS, GOLF SHAFTS,
ARROWS, AEROSPACE, INDUSTRIAL TUBES, SAILING PARTS. THE FILM WAS DEVELOPED WHERE YOU NEED A THIN FILM TO WRAP COMPOSITE TUBES FOR CURING.
TECHNICAL PROPERTIES (120 GA) 30 MIC
THICKNESS: 1.2 MIL (30 MIC)
TENSION PROPERTIES: 5/8” WIDTH
ULTIMATE TENSILE: 26,400
TENSILE STRENGTH (@BREAK PSI): 24390
ELONGATION: 150
MELT POINT: 285 F (140 C)
TREATMENT: NO TREATMENT (32 DYNE LEVEL)
SHRINK: (1 HOUR @ 250 DEGREE F) 1.84%
P/N | 1536-D |
---|---|
Brand | Rock West Composites |
Exportable | No |
Weight | 1.54 |
