Unlike metals which have similar properties in all directions (isotropic), the properties of composites are varying, dependent on the orientation of the fibers in each layer.
*This diagram illustrates a "generic" layup. The SKU being viewed may not have the layup schedule shown in this diagram. To view this SKU's particular layup please check out the "LAYUP ORIENTATION" tab.

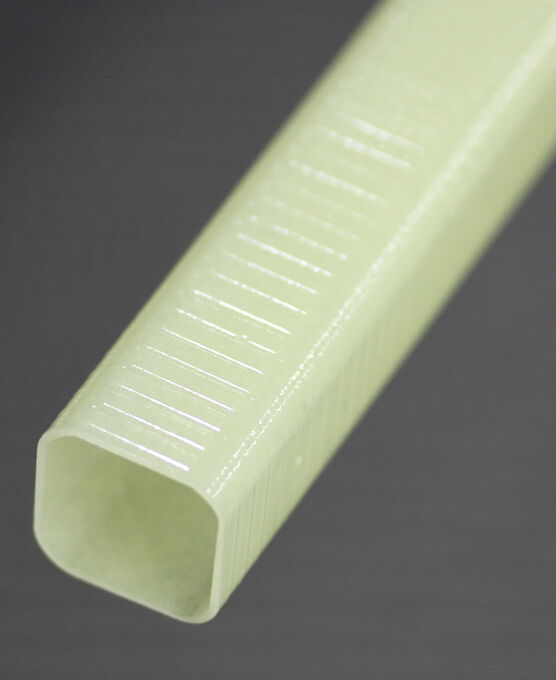

P/N | 25483-FG |
---|---|
Finish | Cello Wrap Gloss |
Height | 0.83 |
Inside Dimension | 0.75 |
Length | 66 |
Major ID | 0.75 |
Major OD | 0.83 |
Materials | Fiberglass |
Minor ID | 0.75 |
Minor OD | 0.83 |
Outside Dimension | 0.83 |
Shape | Square |
Tensile Modulus, msi | 3.02 |
Thickness | 0.04 |
Wall Thickness | 0.04 |
Weight | 0.32 |
Width | 0.83 |
We cannot supply theoretical values for this tube at this time. For specification sheets and other data we can supply please review our Technical Spec page.
SKU: 25483-FG Rev A |
||
Ply # | Orientation | Location |
1 | 0/90 | Inside |
2 | 45 | ↓ |
3 | -45 | |
4 | 0 | |
5 | 0/90 | Outside |
