Tube - Square - Plain Weave - High Modulus - Fabric - 1.00 x 1.09 x 66 in

productname image number 0
productname image number 0
P/N: 25487-HM
Available Now: 15

P/N: 25487-HM
Available Now: 15
1 - 5
$330.99
6 - 24
$297.79
25 - 49
$280.59
50 +
$257.39
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.

Not eligible for return or exchange.

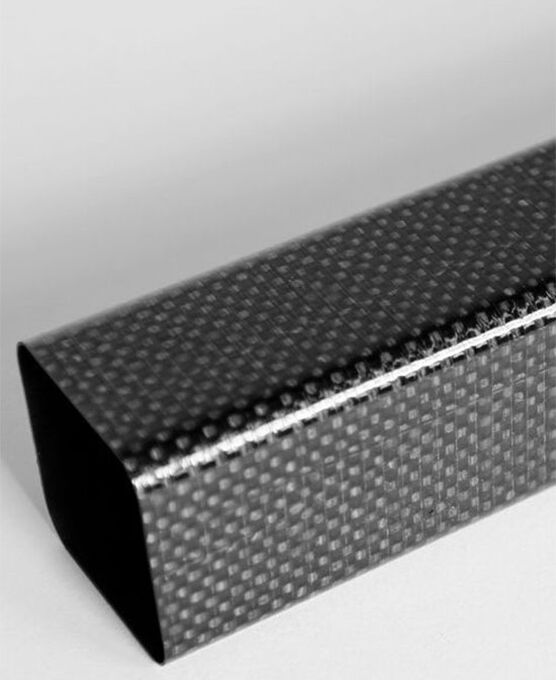

Void of compromise and full of intense performance! Rock West's high modulus tubing utilizes high modulus (55 Msi) fibers with a strength of 640 ksi. This combination yields an astounding product comprised of a multi-directional layup of only high modulus fibers with a higher temperature resin system. Our high modulus tubing lineup is generally designated by using an outer layer of a 3k plain weave fabric.

  • 55 msi Unidirectional carbon fiber throughout with a
  • Standard Modulus plain weave outer woven layer for increased performance when machining and hole drilling
  • Can easily be trimmed into shorter lengths for your complete build
  • Nearly 2x stiffer than all standard modulus tubes
  • *Estimated to have a composite elastic modulus of ~19Msi

*This value varies depending on the specific layup orientation, tube diameters and shape. Representing a theoretical modulus assigned to a general composite round tube (not the fiber alone)

Additional Information

P/N 25487-HM
Application General Purpose
Finish Cello Wrap Gloss
Height 1.08
Inside Dimension 1.0
Length 66
Major ID 1.0
Major OD 1.08
Materials High Modulus Carbon
Minor ID 1.0
Minor OD 1.08
Outside Dimension 1.08
Shape Square
Thickness 0.04
Wall Thickness 0.04
Weight 0.58
Width 1.08

Technical Data

Radius of Tubing

The inner and external corner radii are measured by hand with a radius gauge with no tolerance called out.

  • Internal Radius: 7/32”
  • External Radius: 1/4”.



Estimated Laminate Stiffness Properties (psi)

EX EY GXY EXB EYB
1.661E+07 5.074E+06

5.359E+06

 1.787E+07

6.209E+06

Estimated Laminate CTE Properties (ppm/°F)

CTE-X CTE-Y CTE-XY
3.81E-07

5.64E-06

 -3.38E-07

Estimated Laminate Strength Properties (psi)

X-Axis
Tension		 X-Axis
Compression		 Y-Axis
Tension		 Y-Axis
Compression		 XY-Shear
9.817E+04

-8.404E+04

 2.267E+04

-3.573E+04

 9.933E+03

Tolerances

STOCK TOLERANCE SHEET

Download PDF
