Unlike metals which have similar properties in all directions (isotropic), the properties of composites are varying, dependent on the orientation of the fibers in each layer.

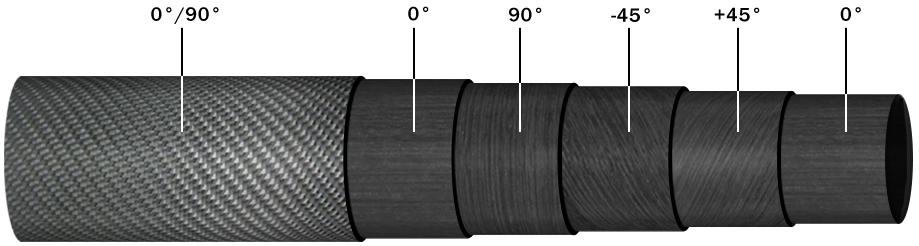

*This diagram illustrates a "generic" layup. The SKU being viewed may not have the layup schedule shown in this diagram. To view this SKU's particular layup please check out the "LAYUP ORIENTATION" tab.

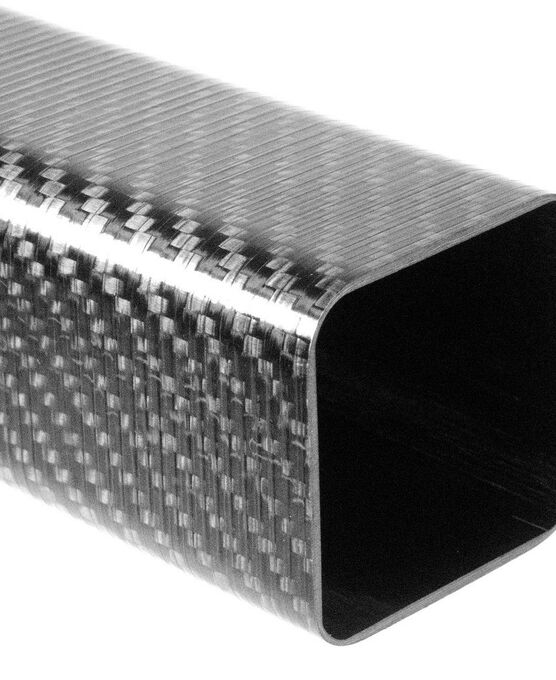

P/N | 25490 |
---|---|
Application | General Purpose |
Finish | Cello Wrap Gloss |
Height | 1.245 |
Inside Dimension | 1.125 |
Length | 66 |
Major ID | 1.125 |
Major OD | 1.245 |
Materials | Standard Modulus Carbon |
Minor ID | 1.125 |
Minor OD | 1.245 |
Outside Dimension | 1.245 |
Shape | Square |
Tensile Modulus, msi | 8.53 |
Thickness | 0.06 |
Wall Thickness | 0.06 |
Weight | 1.04 |
Width | 1.245 |
We cannot supply theoretical values for this tube at this time. For specification sheets and other data we can supply please review our Technical Spec page.
SKU : 25490 Rev NC |
||
Ply # | Orientation | Location |
1 | 0 | Inside |
2 | 0 | ↓ |
3 | 45 | |
4 | -45 | |
5 | 45 | |
6 | -45 | |
7 | 0 | |
8 | 0 | |
9 | 0/90 | Outside |
