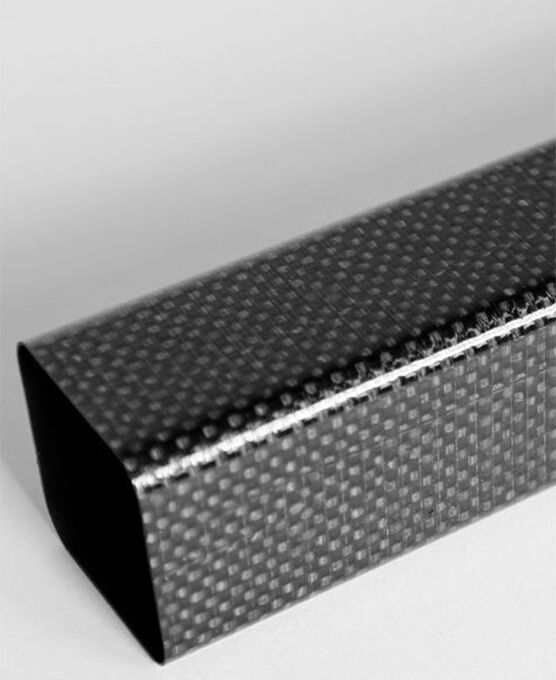

Tube - Square - Plain Weave - High Modulus - 1.50 x 1.58 x 66 inch

productname image number 0
productname image number 0
P/N: 25497-HM
Available Now: 59

P/N: 25497-HM
Available Now: 59
1
$619.99
2 - 4
$474.79
5 +
$390.59
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Create a Rock West Composites account to build your own customizations.
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.

Void of compromise and full of intense performance! Rock West's high modulus tubing utilizes high modulus (55 Msi) fibers with a strength of 640 ksi. This combination yields an astounding product comprised of a multi-directional layup of only high modulus fibers with a higher temperature resin system. Our high modulus tubing lineup is generally designated by using an outer layer of a 3k plain weave fabric.

  • 55 msi Unidirectional carbon fiber throughout with a
  • Standard Modulus plain weave outer woven layer for increased performance when machining and hole drilling
  • Can easily be trimmed into shorter lengths for your complete build
  • Nearly 2x stiffer than all standard modulus tubes
  • *Estimated to have a composite elastic modulus of ~19Msi

*This value varies depending on the specific layup orientation, tube diameters and shape. Representing a theoretical modulus assigned to a general composite round tube (not the fiber alone)

Additional Information

Application General Purpose
Shape Square
Materials High Modulus Carbon
Pattern 1k Plain Weave
Color Black
Finish Cello Wrap Gloss
Inside Diameter 1.5
Outside Diameter 1.58
Wall Thickness 0.040
Inner Corner Radius (approximate) 0.1875
Outer Corner Radius (approximate) 0.25
Length 66
Length (max continuous) 66.0
Linear Density 0.169
Volumetric Density 0.057
Weight 0.927
Primary Fiber Toray M40J
Primary Resin / Hardener Eporite EHM82

Layup Orientation

25497-HM Rev E

Ply # Orientation (degrees) Location
1 0 Inside
2 0 ↓
3 45
4 -45
5 0
6 0/90 Outside
  • 0° fibers maximize bending stiffness and run along the length of the part. Consider bending a tube over your knee.
  • 45° fibers maximize torsional stiffness and are typically plied together in an opposing manner, i.e. ±45°. Consider twisting a tube like a vehicle's driveshaft.
  • 90° (or "hoop") fibers maximize crushing stiffness and generally assist in overall durability. Consider laying a tube on the ground and stepping on it.

Technical Data

Radius of Tubing

The inner and external corner radii are measured by hand with a radius gauge with no tolerance called out.
  • Internal Radius: 3/16”
  • External Radius: 1/4”.

We cannot supply theoretical values for this tube at this time. For specification sheets and other data we can supply please review our Technical Spec page.

Tolerances

STOCK TOLERANCE SHEET

Download PDF

Layup Orientation

25497-HM Rev E

Ply # Orientation (degrees) Location
1 0 Inside
2 0 ↓
3 45
4 -45
5 0
6 0/90 Outside
  • 0° fibers maximize bending stiffness and run along the length of the part. Consider bending a tube over your knee.
  • 45° fibers maximize torsional stiffness and are typically plied together in an opposing manner, i.e. ±45°. Consider twisting a tube like a vehicle's driveshaft.
  • 90° (or "hoop") fibers maximize crushing stiffness and generally assist in overall durability. Consider laying a tube on the ground and stepping on it.
