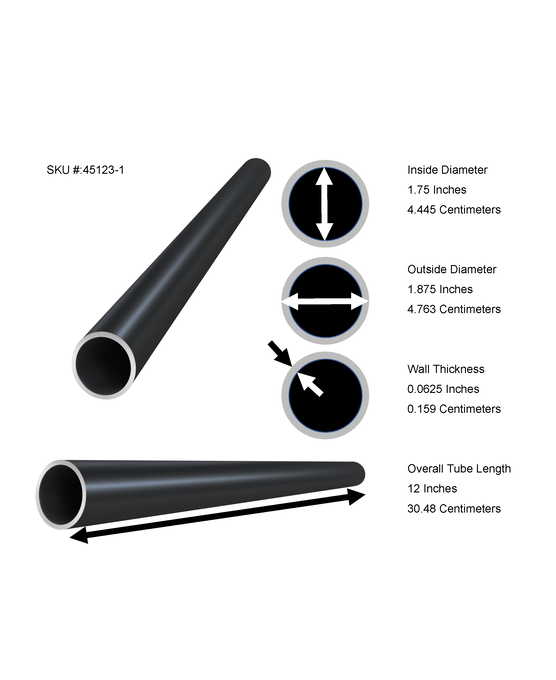

Carbon Fiber Tube, 1-7/8" Od, 1-3/4" Id, 1/16" Wall Thick, 1' Length
$75.60
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.
Manufactured using multiple layers of prepreg carbon fiber. Each layer is about 0.006 inches thick which means that a tube with a wall thickness of 0.060 inches will typically be composed of 9-10 individual layers of carbon fiber. The number of layers (plies) allows us to vary the orientation of the fibers throughout the thickness, creating an engineered high performance product.
Additional Information
| P/N | 45123-1 |
|---|---|
| Finish | Sanded Smooth Matte |
| HTS - Harmonized Tariff Code | 6815.13.0000 |
| Inside Dimension | 1.75 |
| Length | 12 |
| Materials | Standard Modulus Carbon |
| OD | 1.88 |
| Outside Dimension | 1.88 |
| Tensile Modulus, msi | 14.86 |
| Thickness | 0.06 |
