Tube - Octagonal - Fabric - 1.770 x 1.922 x 70 inch

productname image number 0
productname image number 0
P/N: 46312
Availability: 1

P/N: 46312
Availability: 1
1 - 5
$333.99
6 - 24
$300.79
25 - 49
$284.59
50 +
$259.39
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

The Available Quantity listed above is what we have in inventory for this item. Provided there has not been a prior sale, you can expect an order placed today, for this quantity or less, to ship the next business day. For quantities over the number available:
Generally available to ship in two to four weeks.
Inner Corner Radius: 0.25"

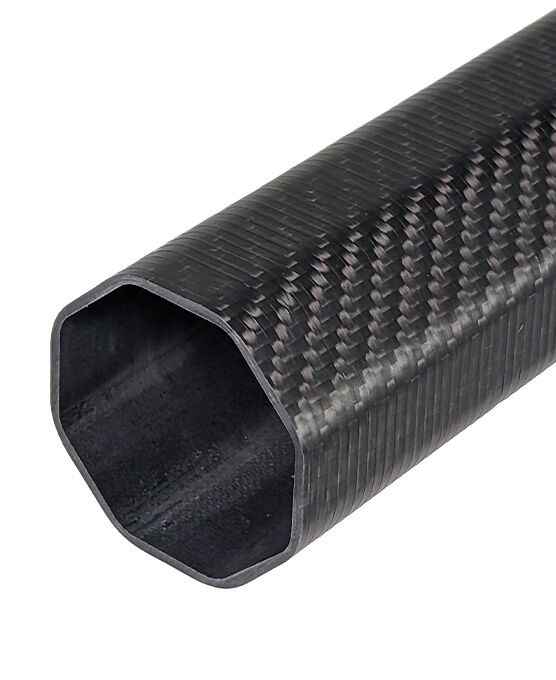

Unlike metals which have similar properties in all directions (isotropic), the properties of composites are varying, dependent on the orientation of the fibers in each layer. This particular carbon fiber fabric square tube has an internal diameter (ID) of 1.770" and an outer diameter (OD) of 1.922" The outer ply of material on this tube is a 2x2 twill weave (diagonal appearance seen below) which will prevent fiber breakout better than unidirectional material. Thus, fabric tubes provide an ideal surface for machining. The core of this tube is almost always comprised of multi-directional "uni" plies which makes most carbon fiber fabric & unidirectional tubes ideal for bending and compression applications.

Square 1.770" ID Roll Wrapped Fabric Tubing Facts

  • Ideal for bending and compression applications
  • 2x2 twill weave provides a traditional carbon fiber aesthetic
  • 1.770" ID x 1.922" OD x 70" Long
  • Gloss Finish
  • Learn about our Roll Wrapping Process

Additional Information

P/N 46312
Application General Purpose
Finish Cello Wrap Gloss
Height 1.922
Inside Dimension 1.77
Length 70
Major ID 1.77
Major OD 1.922
Materials Standard Modulus Carbon
Minor ID 1.77
Minor OD 1.922
Outside Dimension 1.922
Shape Octagonal
Wall Thickness 0.076
Weight 2.09
Width 1.922

Technical Data

Radius of Tubing

The inner and external corner radii are measured by hand with a radius gauge with no tolerance called out.
  • Internal Radius: 9/32"
  • External Radius: 23/64"

We cannot supply theoretical values for this tube at this time. For specification sheets and other data we can supply please review our Technical Spec page.

Tolerances

STOCK TOLERANCE SHEET

Download PDF

Layup Orientation



SKU : 46312 Rev E
Ply # Orientation Location
1 0/90 Inside
2 0 ↓
3 0
4 +45
5 -45
6 90
7 90
8 -45
9 +45
10 0
11 0/90 Outside

  • 0° Fibers maximize bending stiffness. Consider bending the tube over your knee.
  • 45° Fibers maximize torsional stiffness. Typically plied together in an opposing manner, i.e. ±45°. Consider twisting the tube like a vehicle's driveshaft.
  • 90° Fibers maximize crushing stiffness and generally assist in overall tube strength. Consider laying the tube on the ground and stepping on it.
Contact Info
Tube - Octagonal - Fabric - 1.770 x 1.922 x 70 inch
P/N 46312
