Tube - Fiberglass - 2.000 x 2.06 x 72 Inch

productname image number 0
productname image number 1
productname image number 0
productname image number 1
P/N: 46323-FG
Availability: 1

P/N: 46323-FG
Availability: 1
1
$452.99
2 - 4
$320.79
5 - 9
$241.59
10 +
$179.39
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

The Available Quantity listed above is what we have in inventory for this item. Provided there has not been a prior sale, you can expect an order placed today, for this quantity or less, to ship the next business day. For quantities over the number available:
Generally available to ship in two to four weeks.

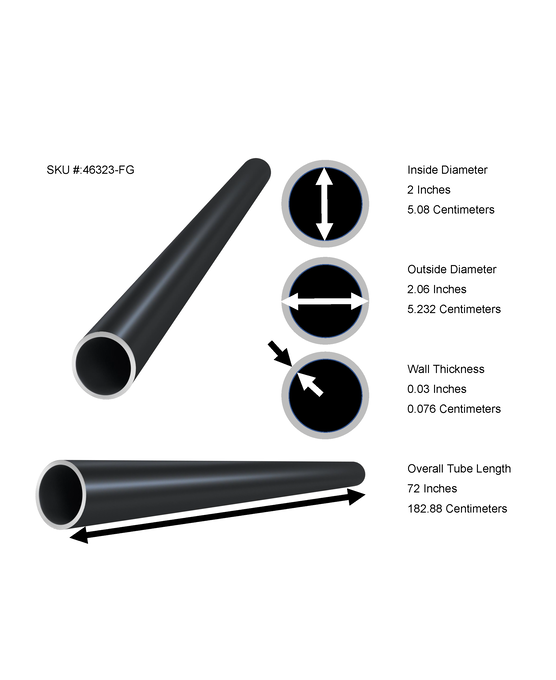

Tube - Fiberglass - 2.000 x 2.06 x 72 inch

Additional Information

P/N 46323-FG
Application Non-Conductive
Built To Order Yes
Finish Cello Wrap Gloss
HTS - Harmonized Tariff Code 7019.90.1100
Inside Dimension 2.0
Length 72
Materials Fiberglass
OD 2.06
Outside Dimension 2.06
Tensile Modulus, msi 6.152
Thickness 0.03
Weight 0.89

Technical Data

We cannot supply theoretical values for this tube at this time. For specification sheets and other data we can supply please review our Technical Spec page.

Tolerances

STOCK TOLERANCE SHEET

Download PDF

Layup Orientation

Orientation of Layers in Tubing Exposed



SKU:  rev
Ply # Orientation Location
1  0/90 Inside
2 0  ↓
3 90
4 0/90  Outside

  • 0° Fibers maximize bending stiffness. Consider bending the tube over your knee.
  • 45° Fibers maximize torsional stiffness. Typically plied together in an opposing manner, i.e. ±45°. Consider twisting the tube like a vehicle's driveshaft.
  • 90° Fibers maximize crushing stiffness and generally assist in overall tube strength. Consider laying the tube on the ground and stepping on it.
