INFINITubeV - Blue - Standard Modulus Tube - Twill - Size 12 - 1.750 X 1.856 X 74 Inch

productname image number 0
productname image number 1
productname image number 2
productname image number 3
productname image number 0
productname image number 1
productname image number 2
productname image number 3
P/N: 46412-BLUE
Availability: 1

Blue ◾ General Use ◾ 1.750" x 1.856" x 74"

P/N: 46412-BLUE
Availability: 1
$409.99
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

The Available Quantity listed above is what we have in inventory for this item. Provided there has not been a prior sale, you can expect an order placed today, for this quantity or less, to ship the next business day. For quantities over the number available:
Generally available to ship in two to four weeks.

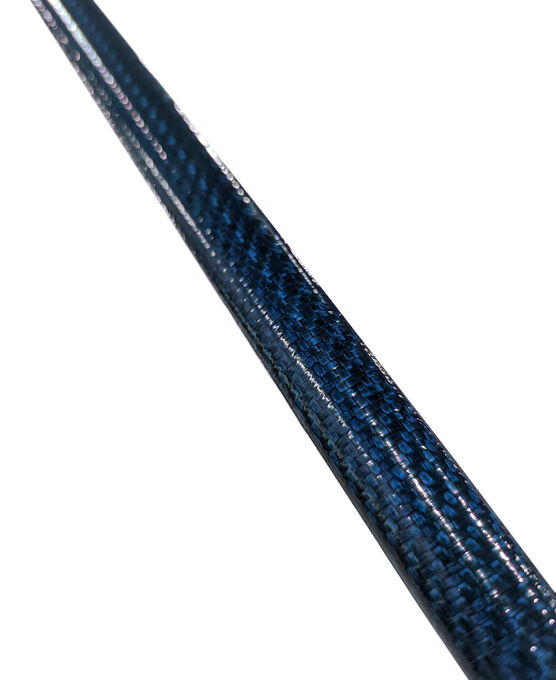

Unlike metals which have similar properties in all directions (isotropic), the properties of composites are varying, dependent on the orientation of the fibers in each layer. This particular carbon fiber fabric tube has an internal diameter (ID) of 1.75" and an outer diameter (OD) of 1.856". The outer ply of material on this tube is a 2x2 Blue twill weave which will prevent fiber breakout better than unidirectional material. Thus, fabric tubes provide an ideal surface for machining. The core of this tube is comprised of multi-directional "uni" plies which makes most carbon fiber fabric & unidirectional tubes ideal for bending and compression applications.

Lead times for this built-to-order product are 3-4 weeks. Higher volume orders may be 8-10 weeks.

Features & Benefits

Example of INFINITubeV Size 00 & Size 01

  • (A): INFINITubeV Size 12
  • (B): INFINITubeV Size 13
  • (C): Low friction tape

Low Friction Tape and Infinitube line

How to Build Your Own Telescoping System

INFINITubeV Specs

Additional Information

P/N 46412-BLUE
Finish Cello Wrap Gloss
HTS - Harmonized Tariff Code 6815.13.0000
Inside Dimension 1.75
Length 74
Materials Standard Modulus Carbon
OD 1.86
Outside Dimension 1.86
Tensile Modulus, msi 13.5
Thickness 0.05
Weight 1.14

Tolerances

STOCK TOLERANCE SHEET

Download PDF

Layup Orientation



SKU : 46412 Rev C
Ply # Orientation Location
1  0/90 Inside
2 90 ↓
3 90
4 0
5 0
6 0
7 0
8 0/90 Outside

  • 0° Fibers maximize bending stiffness. Consider bending the tube over your knee.
  • 45° Fibers maximize torsional stiffness. Typically plied together in an opposing manner, i.e. ±45°. Consider twisting the tube like a vehicle's driveshaft.
  • 90° Fibers maximize crushing stiffness and generally assist in overall tube strength. Consider laying the tube on the ground and stepping on it.
