INFINITubeV - Forged - Standard Modulus Tube - Twill - Size 13 - 1.875 X 1.981 X 74 Inch

productname image number 0
productname image number 1
productname image number 0
productname image number 1
P/N: 46413-FORGED

Forged ◾ General Use ◾ 1.875" x 1.981" x 74"

P/N: 46413-FORGED
$349.99
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.

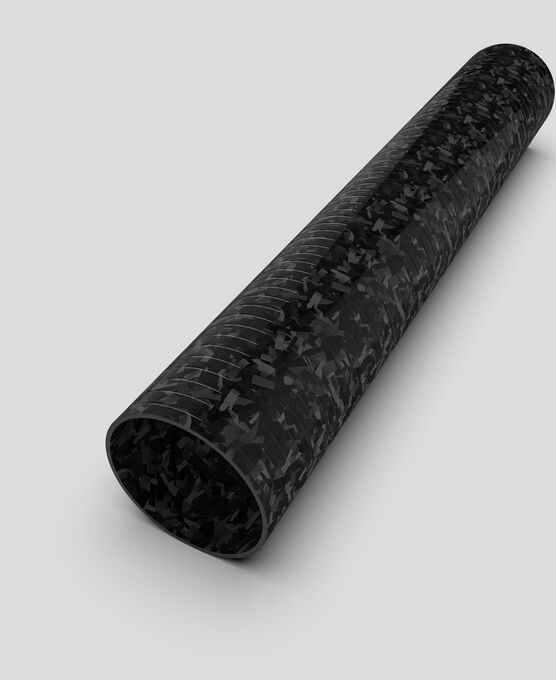

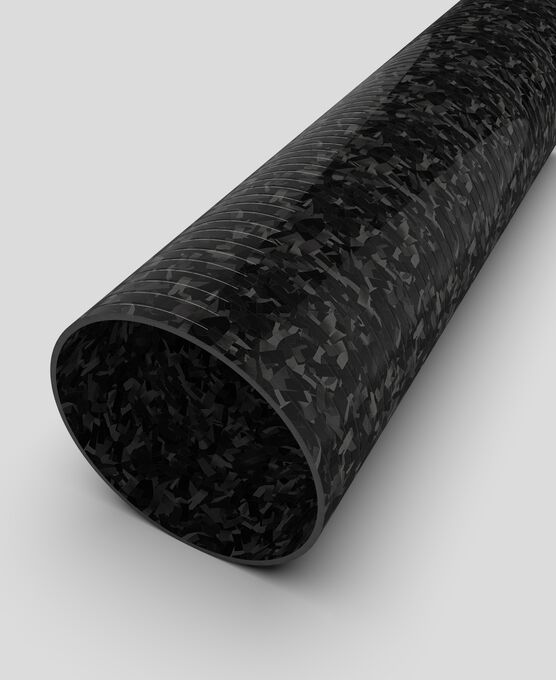

Unlike metals which have similar properties in all directions (isotropic), the properties of composites are varying, dependent on the orientation of the fibers in each layer. This particular carbon fiber fabric tube has an internal diameter (ID) of 1.875" and an outer diameter (OD) of 1.981". The outer ply of material on this tube is a forged carbon fiber prepreg, made with 24mm individual carbon fiber strands, giving it a unique esthetic and isotropic strength. The core of this tube is almost always comprised of multi-directional "uni" plies which makes most carbon fiber fabric & unidirectional tubes ideal for bending and compression applications.

Lead time for this built-to-order tube is 3-4 weeks. Higher volume orders may be 8-10 weeks.

Features & Benefits

Example of INFINITubeV Size 00 & Size 01

  • (A): INFINITubeV Size 13
  • (B): INFINITubeV Size 14
  • (C): Low friction tape

Low Friction Tape and Infinitube line

How to Build Your Own Telescoping System

INFINITubeV Specs

Additional Information

Telescoping Tube Family INFINITubeV - Design Your Own
Pattern Forged / Marbled
Finish Cello Wrap Gloss
Inside Diameter 1.88
Outside Diameter 1.98
Thickness 0.05
Length 74
Weight 1.26
HTS - Harmonized Tariff Code 6815.13.0000

Layup Orientation

46413-FORGED Rev C

Ply # Orientation (degrees) Location
1 0/90 Inside
2 90 ↓
3 90
4 0
5 0
6 0
7 0
8 0/90 Outside
  • 0° fibers maximize bending stiffness and run along the length of the part. Consider bending a tube over your knee.
  • 45° fibers maximize torsional stiffness and are typically plied together in an opposing manner, i.e. ±45°. Consider twisting a tube like a vehicle's driveshaft.
  • 90° (or "hoop") fibers maximize crushing stiffness and generally assist in overall durability. Consider laying a tube on the ground and stepping on it.

Tolerances

STOCK TOLERANCE SHEET

Download PDF
