Tube - 1k Plain Weave - Ultra High Modulus - 0.875 x 1.143 x 96 Inch

productname image number 0
productname image number 1
productname image number 0
productname image number 1
P/N: 46603-UHM-LONG
Available Now: 1

P/N: 46603-UHM-LONG
Available Now: 1
1
$844.99
2 - 4
$672.79
5 +
$573.59
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Create a Rock West Composites account to build your own customizations.
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.

Click "add/ customize" to add full lengths or to select your custom cut lengths & sanding preferences

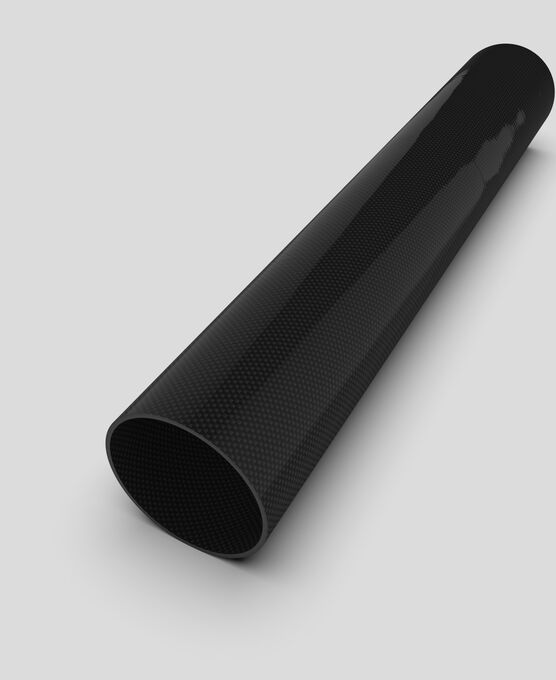

Introducing extreme. Rock West's ultra high modulus tubing utilizes pitch based carbon fibers in the 0 degree orientation to yield the stiffest composite tube yet. Our ultra high modulus tubing lineup is designated generally by using an outer layer of a 1k plain weave fabric.

You may also need

Tube - Fabric - 0.875 x 1.125 x 72 Inch
Tube - Fabric - 0.875 x 1.125 x 72 Inch
$269.99
5 out of 5 Customer Rating

Features & Benefits

Carbon Fiber Material | Modulus, Strength | Benefits, Features & Notes

  • Standard Modulus | 34 msi, 700 ksi | Good structural properties - Stiffer than aluminum - Readily available
  • Intermediate Modulus | 42 msi, 825 ksi | Great structural properties - Highest strength option - Great balance of stiffness and strength
  • High Modulus | 57 msi, 670 ksi | Very stiff - Good thermal conductivity / stability - Typically used in all 0° & 90° (or off-axis) plies throughout the ply sequence / laminate orientation.
  • Ultra High Modulus | 94 msi, 414 ksi | Stiffest option available - Great thermal conductivity - Used primarily as 0° plies in combination with lower modulus / higher strength fibers in the 90° orientation to create a well-balanced and functional composite structure.

*Values listed above are reflective only of the fiber NOT the composite matrix (fiber + resin) and are listed only for tensile modulus and strength. ***Theoretical values are currently not available for this tube but testing can be performed upon request for a fee

Additional Information

Shape Round
Materials Ultra High Modulus Carbon
Pattern 1k Plain Weave
Color Black
Finish Cello Wrap Gloss
Inside Diameter 0.875
Outside Diameter 1.143
Wall Thickness 0.134
Length 96
Length (max continuous) 96.0
Linear Density 0.306
Volumetric Density 0.06
Weight 2.447
Primary Fiber Pyrofil K63712
Primary Resin / Hardener Newport 301
HTS - Harmonized Tariff Code 6815.13.0000

Layup Orientation

46603-UHM-LONG Rev NC

Ply # Orientation (degrees) Location
1 0 Inside
2 0 ↓
3 90
4 90
5 0
6 0
7 90
8 90
9 0
10 0
11 90
12 90
13 0
14 0
15 0/90 Outside
  • 0° fibers maximize bending stiffness and run along the length of the part. Consider bending a tube over your knee.
  • 45° fibers maximize torsional stiffness and are typically plied together in an opposing manner, i.e. ±45°. Consider twisting a tube like a vehicle's driveshaft.
  • 90° (or "hoop") fibers maximize crushing stiffness and generally assist in overall durability. Consider laying a tube on the ground and stepping on it.

Technical Data

Round Roll Wrapped Ultra High Modulus Tubing Facts

  • Gloss Finish
  • 94 msi Unidirectional carbon fiber throughout with a
  • 1k Plain weave outer woven layer for increased performance when machining and hole drilling
  • Can easily be trimmed into shorter lengths for your complete build
  • Learn about our Roll Wrapping Process

*Theoretical values are currently not available for this tube but testing can be performed upon request for a fee

Tolerances

STOCK TOLERANCE SHEET

Download PDF

Layup Orientation

46603-UHM-LONG Rev NC

Ply # Orientation (degrees) Location
1 0 Inside
2 0 ↓
3 90
4 90
5 0
6 0
7 90
8 90
9 0
10 0
11 90
12 90
13 0
14 0
15 0/90 Outside
  • 0° fibers maximize bending stiffness and run along the length of the part. Consider bending a tube over your knee.
  • 45° fibers maximize torsional stiffness and are typically plied together in an opposing manner, i.e. ±45°. Consider twisting a tube like a vehicle's driveshaft.
  • 90° (or "hoop") fibers maximize crushing stiffness and generally assist in overall durability. Consider laying a tube on the ground and stepping on it.
