Plate - Carbon/Kevlar - Red - Twill - Gloss/Matte - 24 x 48 x 0.05" / 1.2mm thick - BLOWOUT

Click to view and choose plate sizes available

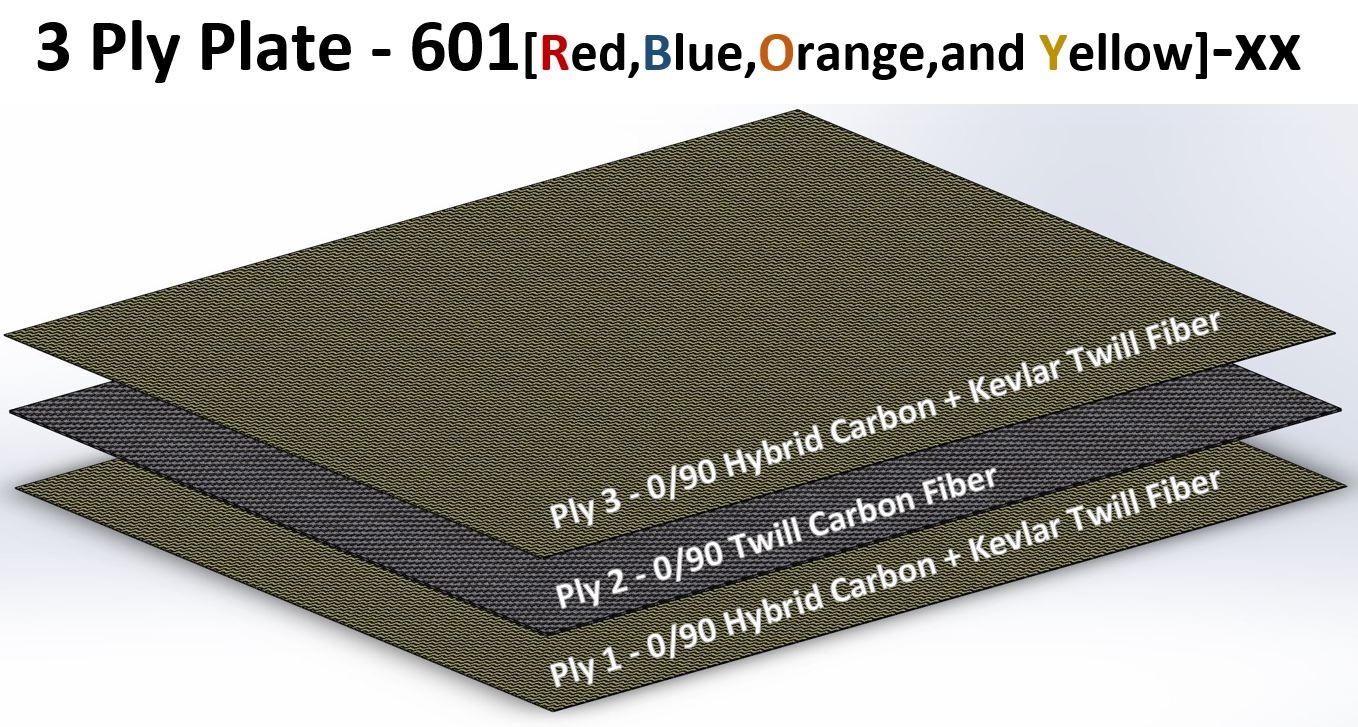

When it comes to strength, there is not much out there stronger than aramid (a.k.a. Kevlar). Our 24" x 48" x 0.05" thick plate is made through a process called resin infusion in combination with vacuum bagging to achieve near perfection, porous free laminates! Our 0.05" carbon fiber/red Kevlar hybrid laminates consist of two layers of 13010-RED-D and a single layer of 13000-D in between. Carbon/red Kevlar plates are ideal for strength and striking good looks!

• Top side carbon/Kevlar® - gloss surface
• Bottom side carbon/Kevlar® - matte textured surface
• Carbon core - 670 GSM 12k twill fabric (13000-D)
• 0.05 lbs / in^3 OR 1.39 grams / cm^3
• Ready for machining or waterjet cutting
• Minimal to zero fatigue failures
• Structurally sound and cosmetically stunning
• Ideal for RC models including multi-rotor airframes
• Service temperatures easily exceed 200°F

Special Return Policy - Blowout/Blemished;

Rock West Composites will NOT return or refund blowout or blemished items. This applies to all materials listed as a -blowout or a -blem.
