Plate - Carbon/Kevlar - Blue - Twill - Gloss/Matte - 12 x 12 x 0.08" / 2.0mm thick - BLOWOUT

Name: Plate - Carbon/Kevlar - Blue - Twill - Gloss/Matte - 12 x 12 x 0.08" / 2.0mm thick - BLOWOUT
SKU: 602b-11
Price: 79.99 USD
Availability: InStock

P/N: 602B-11

Available Now: 3

12" x 12" ◾ 304mm x 304mm - BLOWOUT

P/N: 602B-11

Available Now: 3

$79.99

Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.

If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.

Click to view and choose plate sizes available

When it comes to strength, there is not much out there stronger than aramid (a.k.a. Kevlar). Our 12" x 12" x 0.08" thick plate is made through a process called resin infusion in combination with vacuum bagging to achieve near perfection, porous free laminates! Our 0.08" carbon fiber/blue Kevlar hybrid laminates consist of two layers of 13010-BLUE-D and a two layers of 13000-D in between. Carbon/red Kevlar plates are ideal for strength and striking good looks!

Quick Facts for our 12" x 12" x 0.08" Thick Carbon/Blue Kevlar Gloss/Matte Plate

Top side carbon/Kevlar® - gloss surface
Bottom side carbon/Kevlar® - matte textured surface
2 layers of Carbon core - 670 GSM 12k twill fabric (13000-D)
0.10 lbs / in^3 OR 1.39 grams / cm^3
Ready for machining or waterjet cutting
Minimal to zero fatigue failures
Structurally sound and cosmetically stunning
Ideal for RC models including multi-rotor airframes
Service temperatures easily exceed 200°F

Additional Information

Units:

P/N	602B-11
Clearance	Yes
Finish	Gloss / Matte
HTS - Harmonized Tariff Code	6815.13.0000
Materials	Standard Modulus Carbon + Kevlar
Plate / Panel Size	12" x 12" / 304.8mm x 304.8 mm
Thickness	0.08
Weight	0.06
Width	12.0

Tolerances

STOCK TOLERANCE SHEET

Download PDF

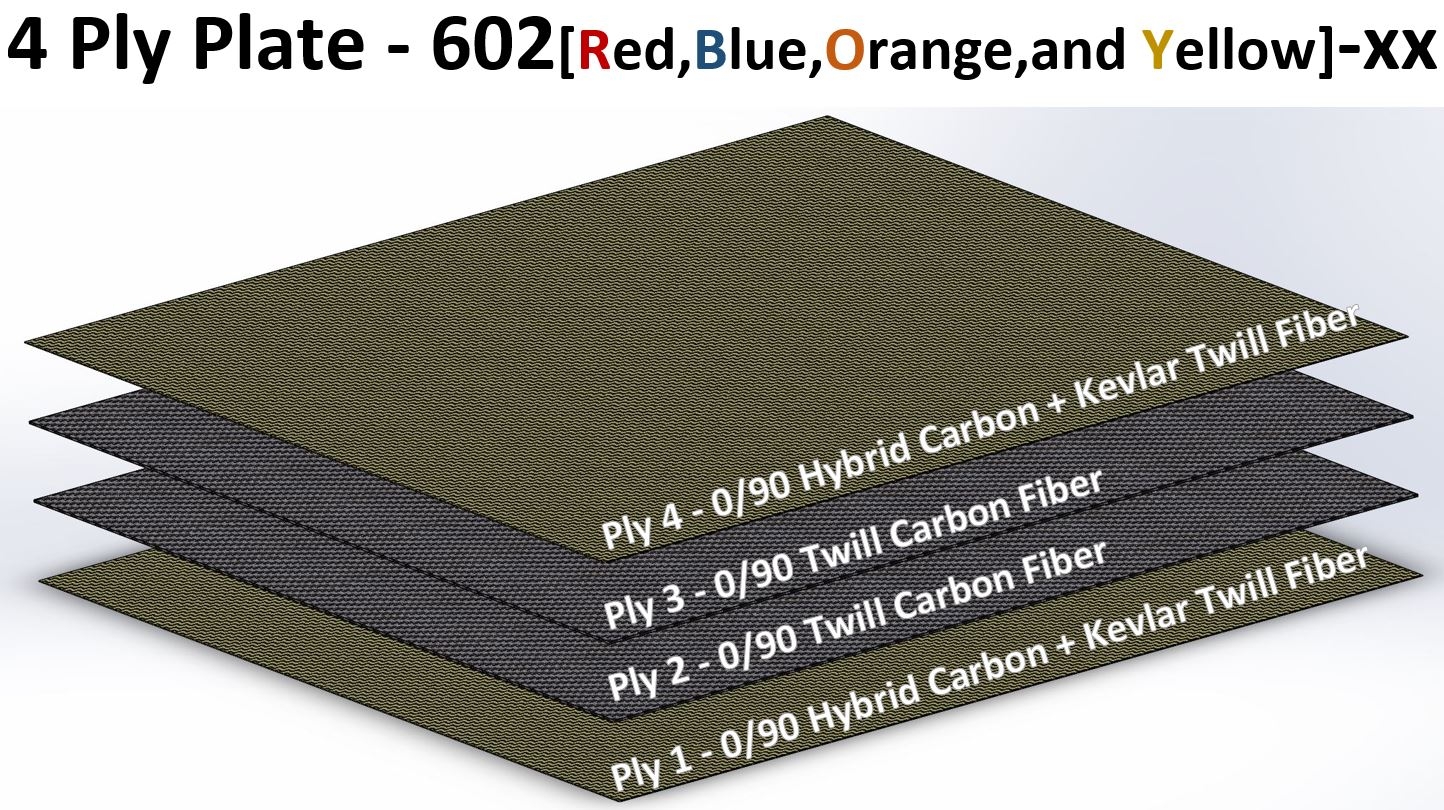

Layup Orientation
