P/N: 702-33-12
Available Now: 1

12 Inch Long Piece - 3" Legs - 0.06" Thick

P/N: 702-33-12
Available Now: 1
$111.99
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.

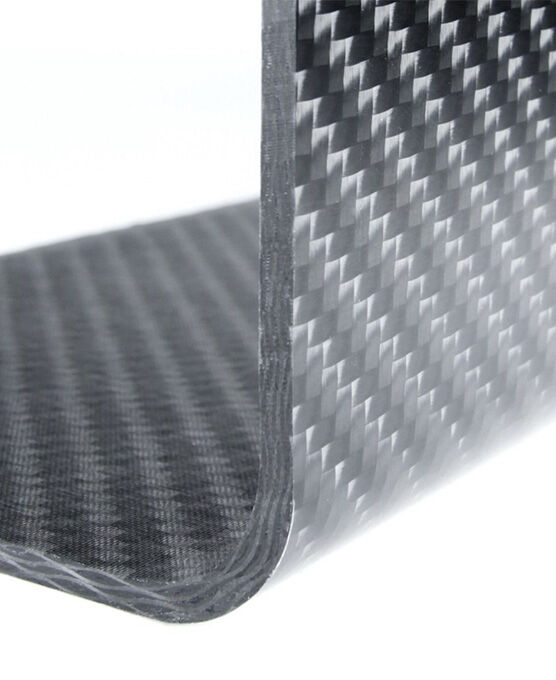

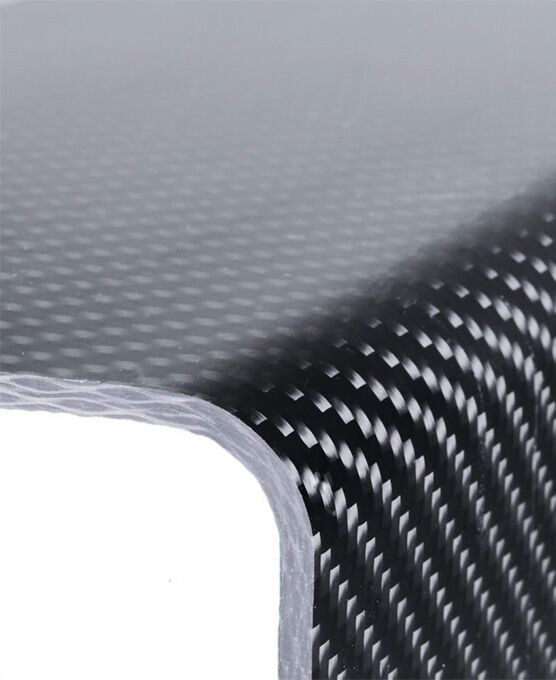

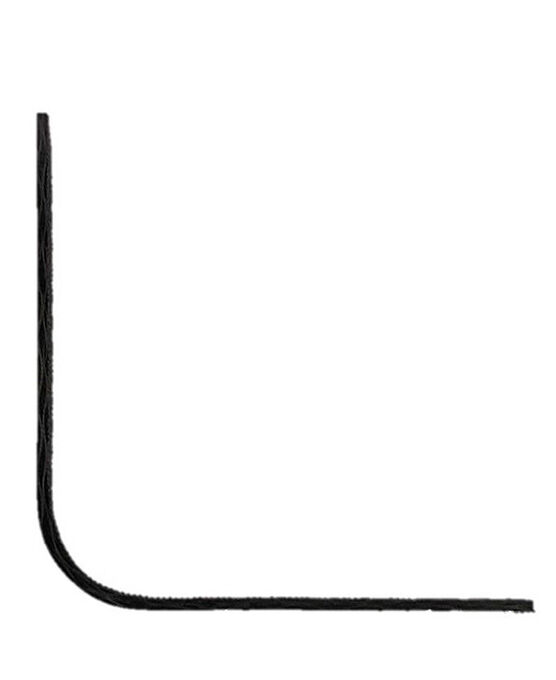

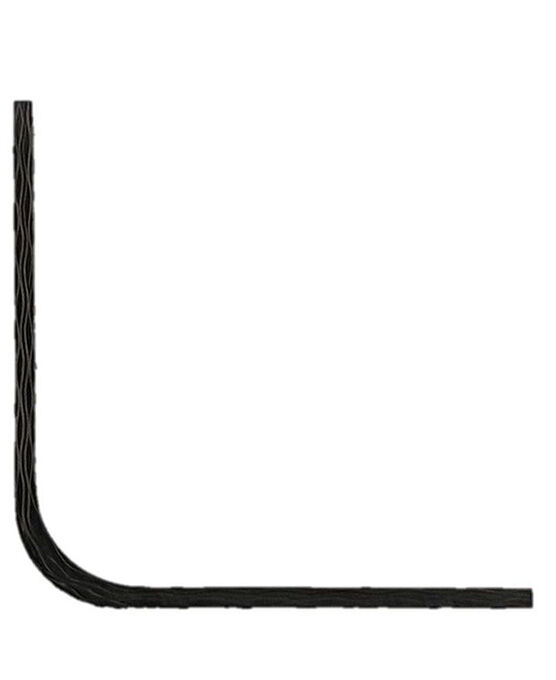

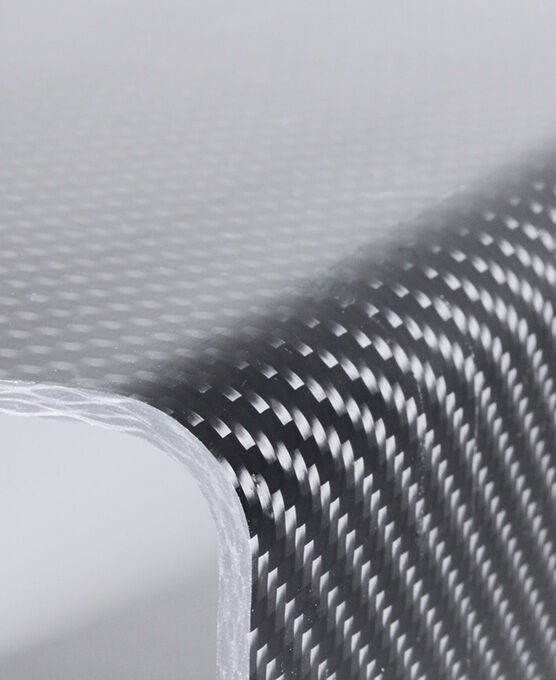

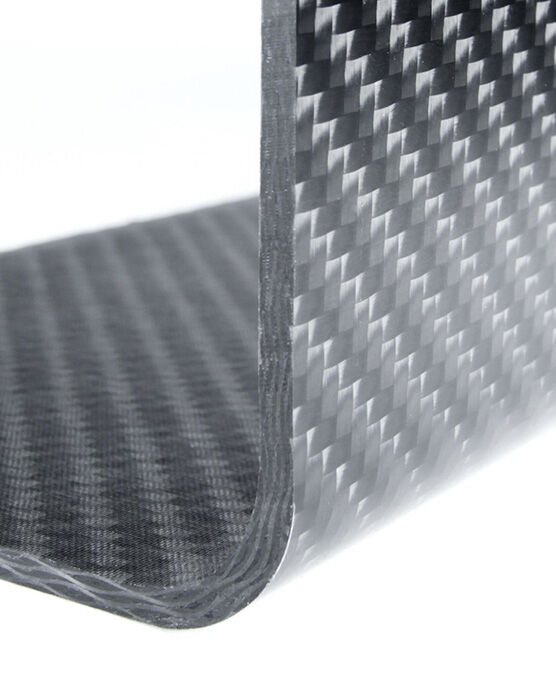

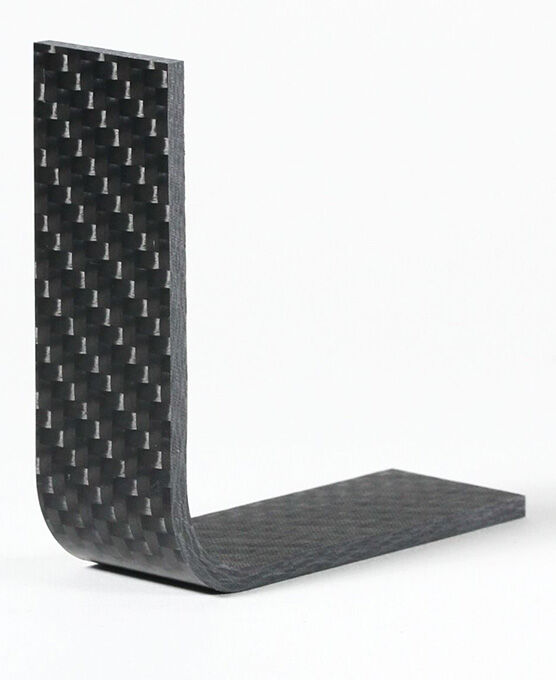

Angle - 90 Degree w/radius - 3.0" legs x ~0.06" Thick x 12 inch

  • All fabric layup - 2 plies of 12k twill
  • Inside Angle Radius = ~??
  • Outside Angle Radius = ~??
  • Twill throughout for improved machineability and aesthetics
  • Outside features a matte smooth surface and inside has a textured peel ply surface finish
  • *Straightness & dimensional tolerances not called out at this time

Additional Information

Materials Standard Modulus Carbon
Pattern 12k 2X2 Twill Weave
Angle Corner Style With Radius
Angle Degree 90
Angle Finish Smooth Matte Outside / Peel Ply Inside
Angle Leg Length 3.00
Angle Thickness 0.06" (1.5mm)
Thickness 0.03
Length 12
Length (max continuous) 12.0
Weight 0.01
Max Operating Temp- (Tg) 150F to 174F
HTS - Harmonized Tariff Code 6815.13.0000
