Sandwich Panel – Mill Finish - Aluminum 3.6lb Honeycomb Core (3/8" cell) - Aluminum Skins (0.040") - 12" X 60" x 0.75"

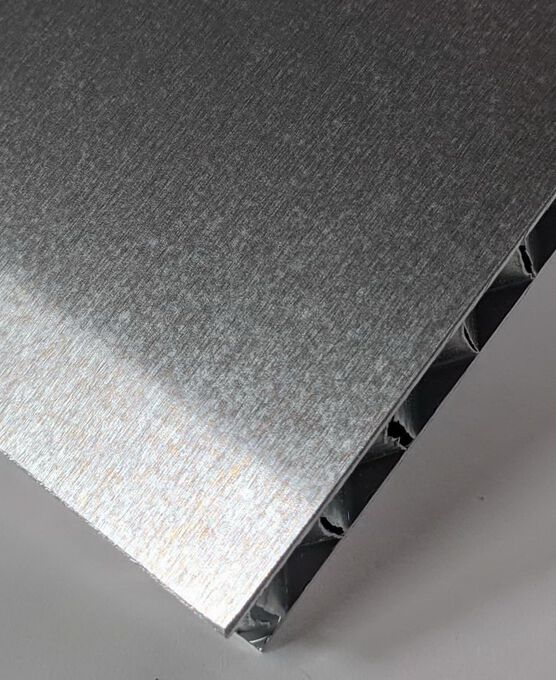

Sandwich Panel – Mill Finish - Aluminum 3.6lb Honeycomb Core (3/8" cell) - Aluminum Skins (0.040") - 12" X 60" x 0.75" image number 0

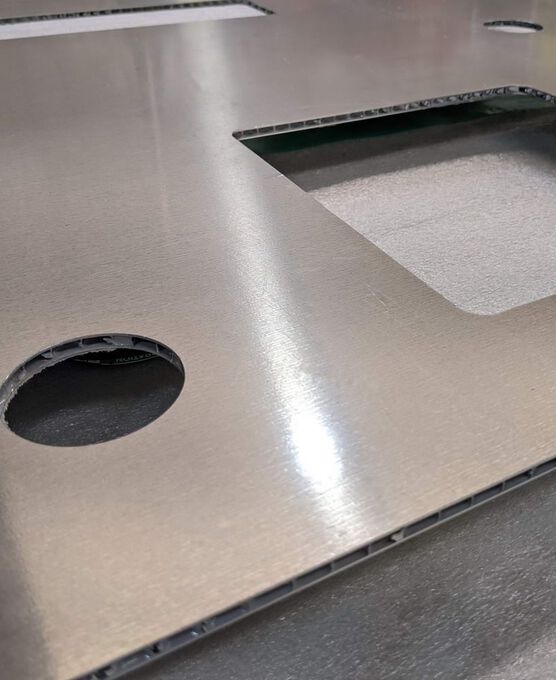

Sandwich Panel – Mill Finish - Aluminum 3.6lb Honeycomb Core (3/8" cell) - Aluminum Skins (0.040") - 12" X 60" x 0.75" image number 1
Sandwich Panel – Mill Finish - Aluminum 3.6lb Honeycomb Core (3/8" cell) - Aluminum Skins (0.040") - 12" X 60" x 0.75" image number 0
Sandwich Panel – Mill Finish - Aluminum 3.6lb Honeycomb Core (3/8" cell) - Aluminum Skins (0.040") - 12" X 60" x 0.75" image number 1
P/N: 74019-1260

3/4" Thick ◾ 12" x 60" ◾ Mill Finish

P/N: 74019-1260
$404.00
Aluminum honeycomb, Aluminum Skin rigid panel

Description

Stock Aluminum Honeycomb Panels are comprised of 5052-H32 Mill Finish PVC masked Face Sheets laminated to a 3/8” cell - 3003 alloy 3.6 lbs./FTᶟ Aluminum Honeycomb Core. A two-part commercial grade epoxy with a service temperature between -50°F and 250°F is used as the bonding agent. The average Lap Shear strength for our stock panels is 900-psi at 73°F and 1205-psi at -40°F.

Additional Information

P/N 74019-1260
Core Thickness 0.375
Panel Thickness 0.75
Skin Thickness 0.04
Skin Thickness V2 0.02" (2 Plies)
Thickness 0.75
