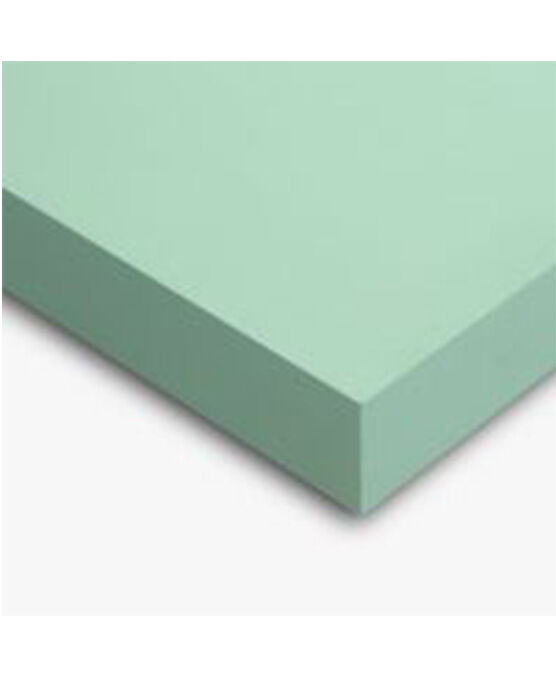

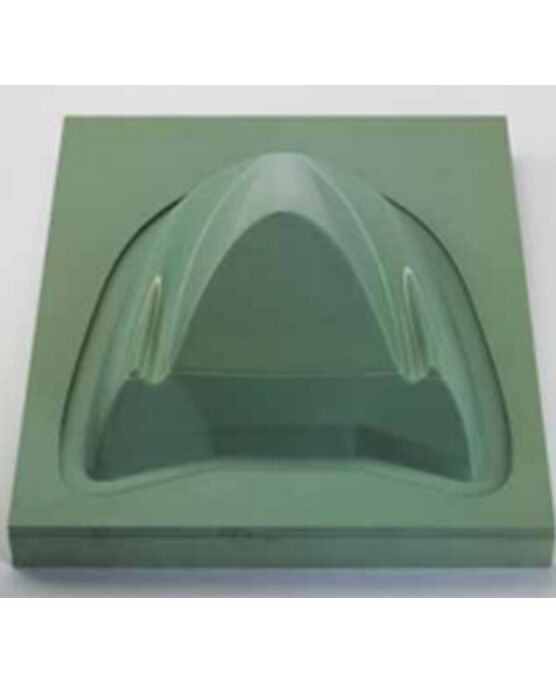

This Epoxy Tooling Board has very high temperature resistance and low coefficient of thermal expansion. Designed for prepreg lay-up molds, vacuum form tools, and laminating patterns and tools.
Necuron®-boards should be stored on a flat underground surface and in a dry space at a temperature between 64.4°F and 77°F. Variations in temperature should be avoided during transport and storage.
Color: | Green |
Coefficient of thermal expansion: | approx. 23.33 x 10^-6 F-1 |
Temp. resistance: | approx. 287°F |
Shore D: | approx. 74 |
Compressive strength: | approx. 8,267 psi |
Flexural strength: | approx. 5,076 psi |
Density: | approx. 48lb/Ft^3 |
Materials | Epoxy |
---|---|
Color | Green |
Width | 24.0 |
Thickness | 2.0 |
Length | 0 |
Weight | 82.2 |
