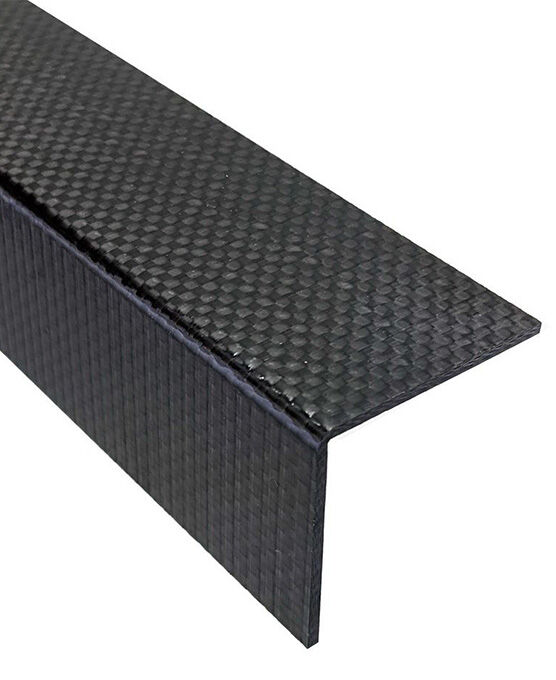

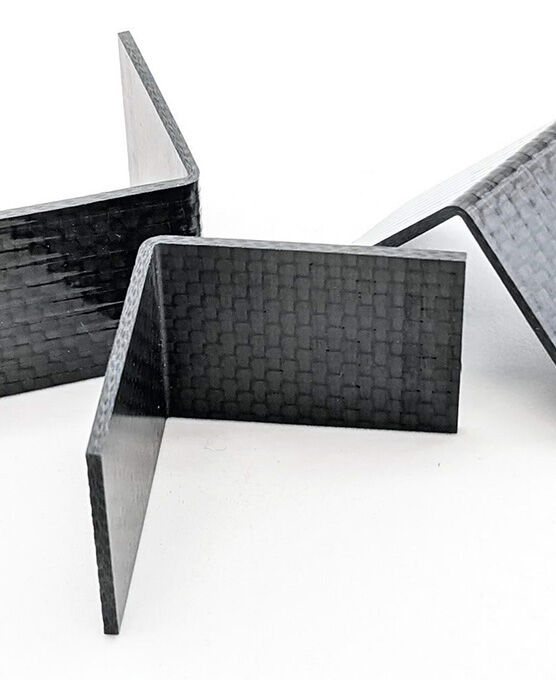

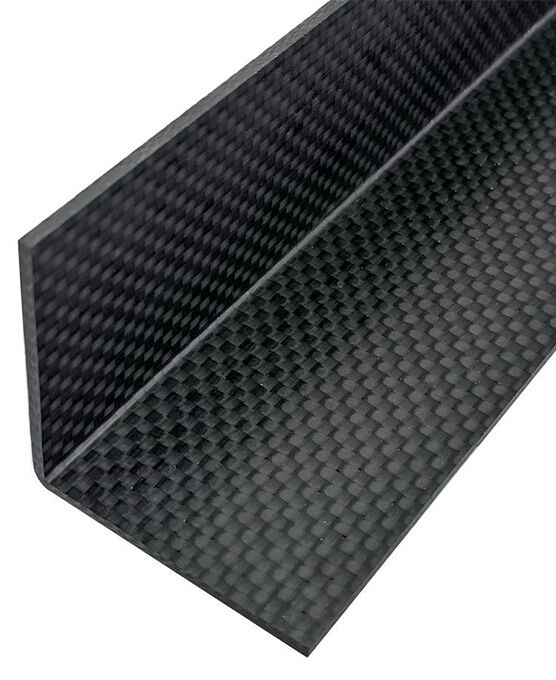

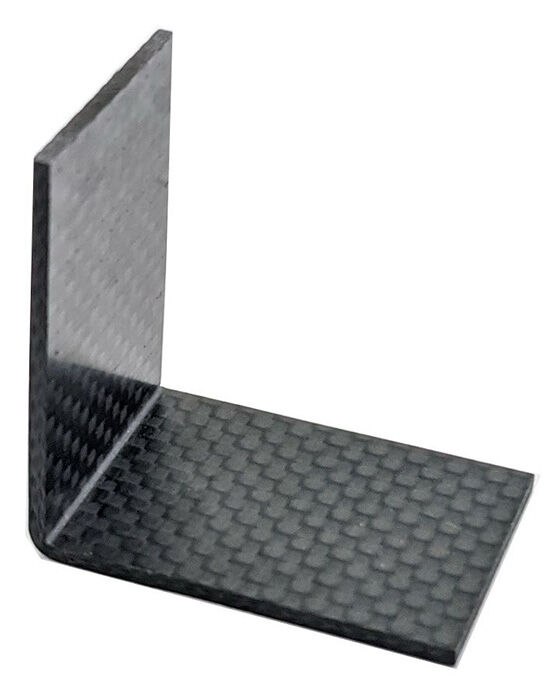

These angles are now a plain weave construction instead of the previous twill weave construction. Our Carbon Fiber all Fabric 90° sharp radius angle makes for very lightweight mounting brackets or other hardware. You can even use it to join plates and other items. The layup consists of 8 plies of a 3k Plain Weave. The epoxy resin used is a 250F system. Plain weave throughout the entire angle provides a beautiful aesthetic and a better surface for machining.
| P/N | 808-150-12 | 808-150-36 | 808-150-72 | 808-150-90 |
|---|---|---|---|---|
| Angle Corner Style | Sharp | Sharp | Sharp | Sharp |
| Angle Degree | 90 | 90 | 90 | 90 |
| Angle Finish | Cello Gloss Outside / Smooth Matte Inside | Cello Gloss Outside / Smooth Matte Inside | Cello Gloss Outside / Smooth Matte Inside | Cello Gloss Outside / Smooth Matte Inside |
| Angle Leg Length | 1.50 | 1.50 | 1.50 | 1.50 |
| Angle Thickness | 0.08 | 0.08 | 0.08 | 0.08 |
| Application | General Purpose | General Purpose | General Purpose | |
| Built To Order | ||||
| ECCN | ||||
| Finish | ||||
| Height | ||||
| HTS - Harmonized Tariff Code | 6815.13.0000 | 6815.13.0000 | 6815.13.0000 | 6815.13.0000 |
| Inside Dimension | ||||
| Length | 12 | 36 | 72 | 90 |
| Major ID | ||||
| Major OD | ||||
| Materials | Carbon Fiber | Carbon Fiber | Carbon Fiber | Carbon Fiber |
| Minor ID | ||||
| Minor OD | ||||
| Outside Dimension | ||||
| REACH | ||||
| RoHS | ||||
| Schedule B | ||||
| Thickness | 0.08 | 0.08 | 0.08 | 0.08 |
| USMCA Criterion | ||||
| Weight | 0.14 | 0.42 | 0.84 | 1.06 |
| Width |
