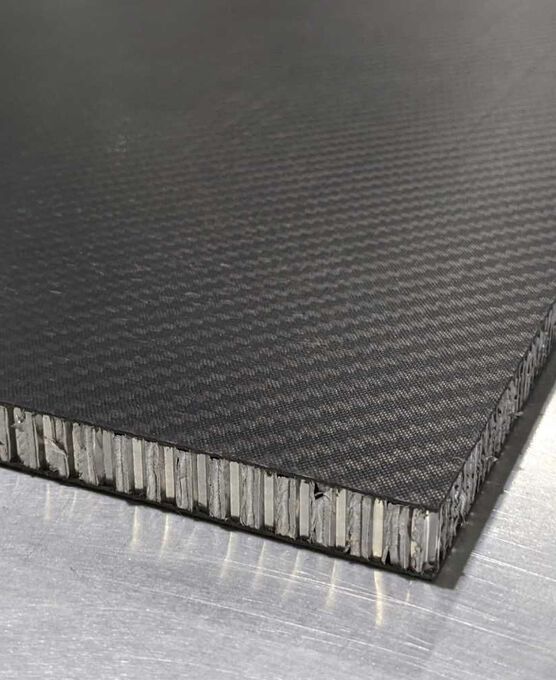

Sandwich Panel - Aluminum 3.1 Cubic ft Honeycomb Core (0.960") - Twill Carbon Fiber Skins (0.04") - Matte/Matte - 24 x 24 x 1.040 inch
1.04" Thick ◾ 0.04" Skins ◾ 24" x 24" / 609mm x 609mm
1
-
19
$893.99
20
+
$847.79
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
Lightweight, rigid structure with woven smooth matte finish
Sandwich Panel - Aluminum 3.1lb/ft^3 Honeycomb Core (0.960") - Twill Carbon Fiber Skins (0.04") - Matte/Matte - 24 x 24 x 1.040 inch
Additional Information
| Materials | Carbon Fiber Skins / Aluminum Honeycomb Core |
|---|---|
| Pattern | 3k 2X2 Twill Weave |
| Color | Black |
| Finish | Matte / Matte |
| Panel Size | 24" x 24" |
| Panel Thickness | 1.040 |
| Skin Thickness | 0.04 |
| Skin Thickness V2 | 0.04" (4 Plies) |
| Skin Material | Standard Modulus Carbon |
| Core Material | Aluminum Honeycomb |
| Core Thickness | 0.96 |
| Core Thickness V2 | 0.960" |
| Plate / Panel Size | 24" x 24" / 609.6mm x 609.6mm |
| Length | 0 |
| Weight | 3.6 |
