CUSTOM BONDED ASSEMBLIES WITH CARBON FIBER TUBING


APPLICATION:

Custom bonded assemblies.

SOLUTION

Rock West assisted in design for manufacturing (DFM) for the machined metal parts and was able to source metal parts for our customer to reduce the customers supply chain to a single point for delivered assemblies. To reduce lead time and cost, Rock West used our in-house SLA 3D printer with off-the-shelf drill bushings to create low-cost custom drill jigs for machining clearance holes on our painted carbon tubes. The parts were then bonded into assemblies with sourced metal parts on precision machined aluminum fixtures for precise alignment and repeatability.

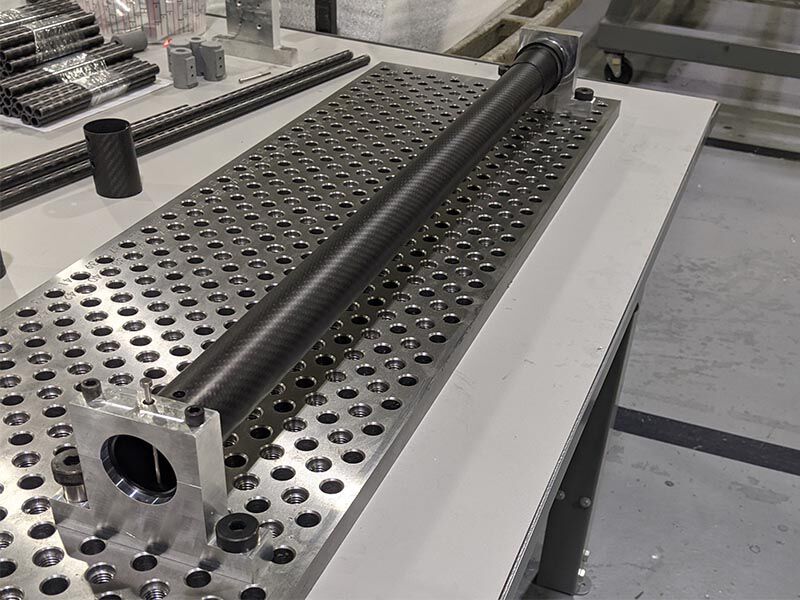

Image shows work surface with metallic tooling. A carbon fiber tube is held in place for precision drilling and assembly.

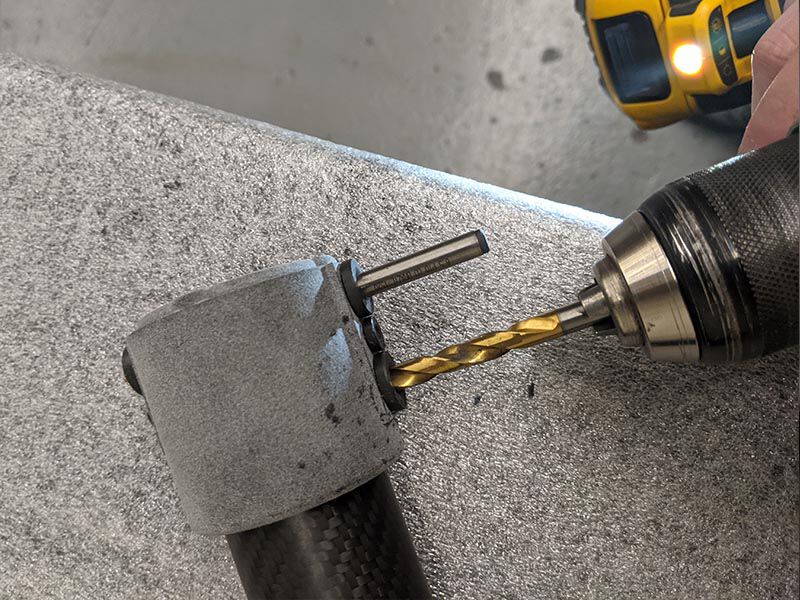

Carbon fiber tube with metallic end-cap bonded assembly on a work surface. Technician is drilling into an alignment fixture on the end-cap.

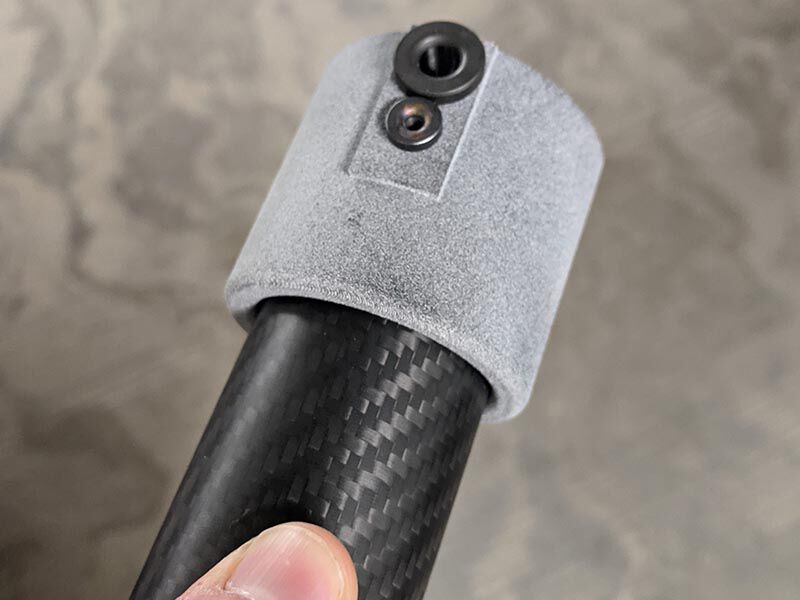

The custom assembly, a metallic grey fixture with two circular inserts, bonded to the end of a carbon fiber tube.

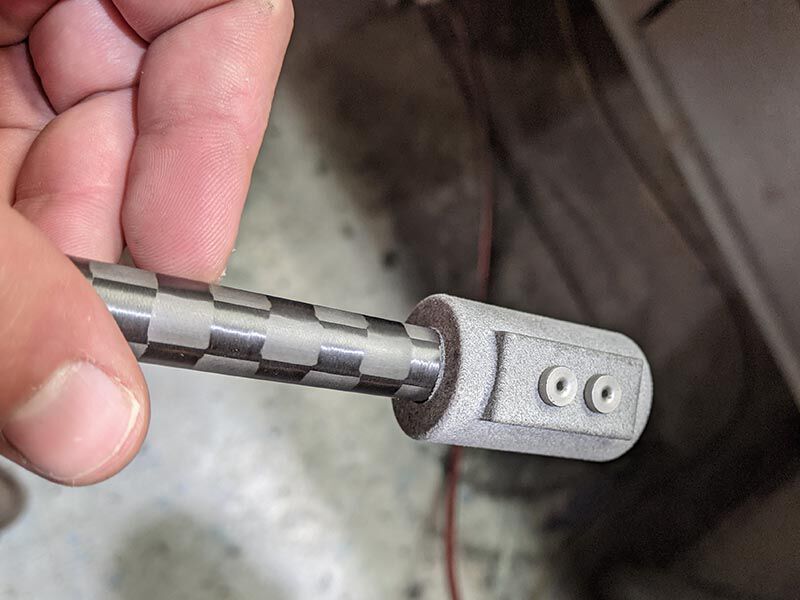

Image shows a fingers holding a small carbon fiber tube with an assembly fixture bonded to the end. The carbon tube has a checkboard surface and metallic grey fixture has two circular inserts.
