CARBONNect - Angle Connector Kit - Aluminum - For 1.0-inch ID Round Tubing with .06-inch Wall

P/N: CE10-AA-05

P/N: CE10-AA-05
1 - 99
$70.99
100 +
$58.79
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.

Don't forget the Drill Jig Kit if this is a first time order!

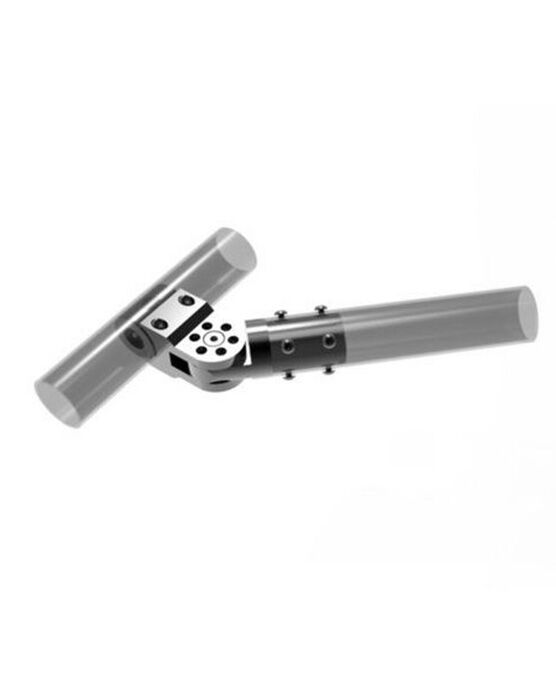

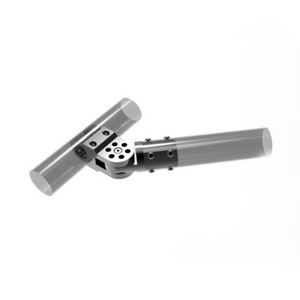

With this Angle Adapter Connector kit, you can add a 180° connection between two carbon tubes of 1", 1.5" or 2" ID. If set at 45° angles, bolts can be added to provide additional strength. Requires tubes with 1/16” wall thickness.

  • Use to connect two tubes to form an adjustable joint
  • Tighten in any position – 180° adjustability
  • Use for truss structures or any structure requiring other than 90° angles
Connectors are made of CNC-machined, black anodized, aircraft-grade, 6061-T6 Aluminum.


Matching screws with 170,000 PSI tensile strength are provided in the kit.

Allen wrench not supplied.

Additional Information

P/N CE10-AA-05
Brand Rock West Composites
Length 0
Panel Thickness 0.000000
Weight 0.181
