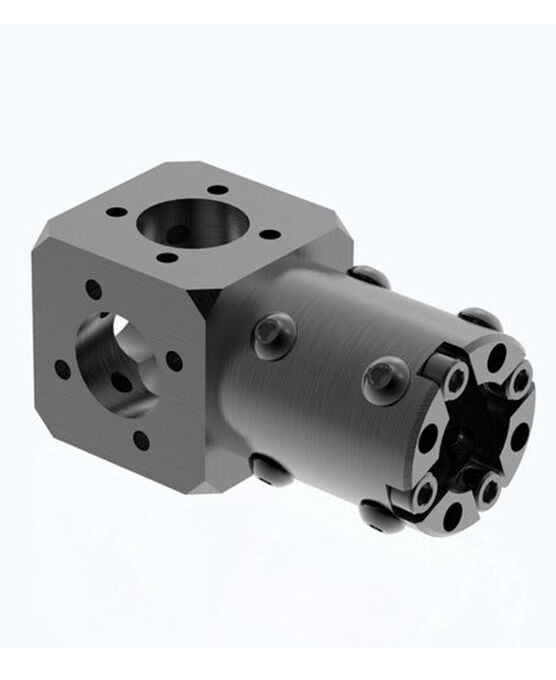

CARBONNect - Main Block with One Adapter - Aluminum - For 1.0-inch ID Round Tubing

P/N: CE10-MB-05

P/N: CE10-MB-05
1 - 99
$36.99
100 +
$30.79
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.

Don't forget the Drill Jig Kit if this is a first time order!

The kit components connect 1" ID Tubing. You can form almost any connection configuration using a combination of Main Blocks and Adapters. This kit includes the following:

  • (1) Main Block (CE10-MB-01)
  • (1) Adapter (CE10-AD-01)
  • (4) 6-32 X 1 1/2 Socket Head Cap Screw, Steel Black Oxide
  • (8) 6-32 X 3/8 Button Head Cap Screw, Steel Black Oxide
Connectors are made of CNC-machined, black anodized, aircraft-grade, 6061-T6 Aluminum.


Matching screws with 170,000 PSI tensile strength are provided in the kit.

Allen wrenches not supplied. Don't forget the Drill Jig Kit if this is a first time order!

Additional Information

P/N CE10-MB-05
Application General Purpose
Brand Rock West Composites
Length 0
Panel Thickness 0.000000
Weight 0.248

CAD Models

1.0" SYSTEM

Main Block

Download PDF

STP Download
