CARBONNect - Drill Jig Toolkit - 2.0" Round System (Includes Drill Jig, Allen Wrenches & Drill Bit)

P/N: CE20-DJ-05

For 2" ID Tubing with ~0.06" Wall

P/N: CE20-DJ-05
1 - 99
$57.99
100 +
$47.79
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.
CARBONNect - Drill Jig Toolkit - 2.0" Round System (Includes Drill Jig, Allen Wrenches & Drill Bit)

Building your CARBONNect™ assembly is simple! In order to do so, however, you will need to find the right kit for the system you are building:

1.0" System Toolkit:

  • (1) Drill Jig - 8 Holes specifically located to match the hole pattern of the 1.0" connector components
  • (1) Drill Bit - 5/32" carbide drill bit
  • (1) Allen Wrench - 5/64"
  • (1) Allen Wrench - 7/64"

1.5" System Toolkit:

  • (1) Drill Jig - 8 Holes specifically located to match the hole pattern of the 1.5" connector components
  • (1) Drill Bit - 7/32" carbide drill bit
  • (1) Allen Wrench - 1/8"
  • (1) Allen Wrench - 5/32"

2.0" System Toolkit:

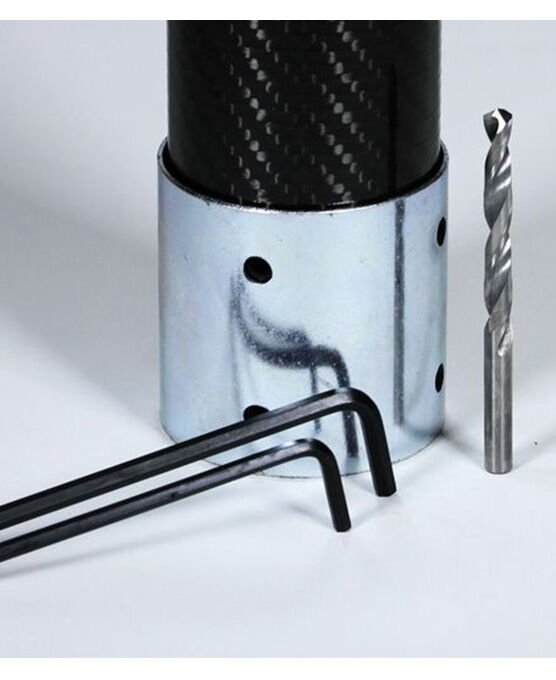

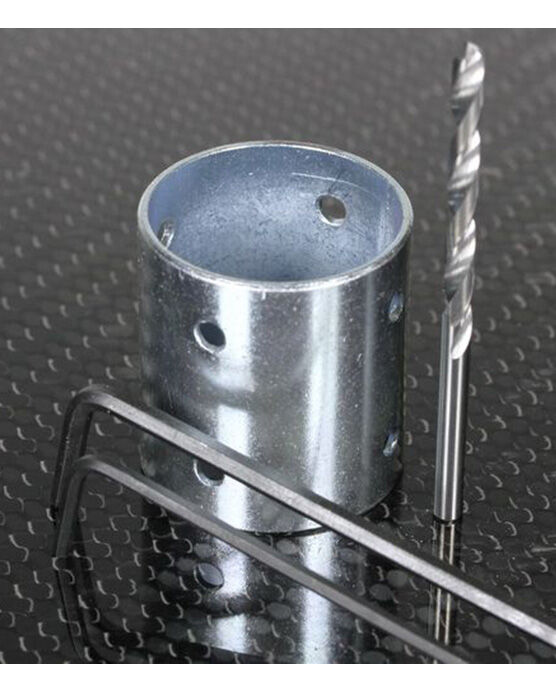

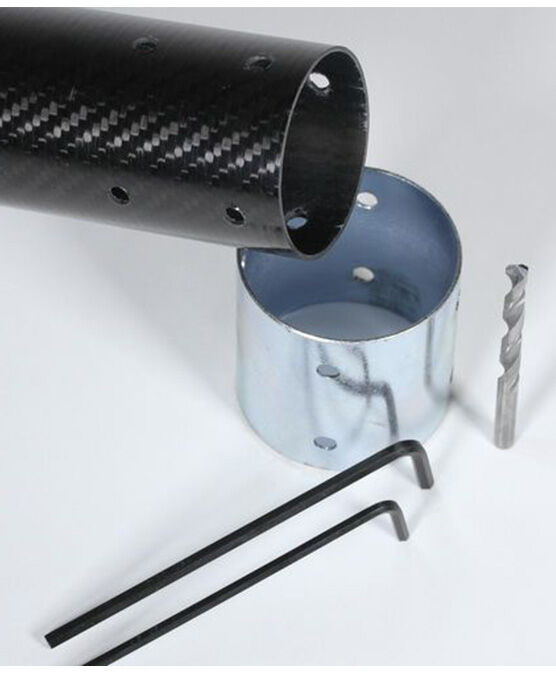

  • (1) Drill Jig - 8 Holes specifically located to match the hole pattern of the 2.0" connector components
  • (1) Drill Bit - 15/64" carbide drill bit
  • (1) Allen Wrench - 1/8"
  • (1) Allen Wrench - 5/32"

Additional Information

P/N CE20-DJ-05
Brand Rock West Composites
Length 0
Panel Thickness 0.000000
Weight 0.3
