CARBONNect - Side Wall Bracket Kit - Aluminum - For 2.0-inch ID Round Tubing with .06-inch Wall

P/N: CE20-WB-05

For 2" ID Tubing with ~0.06" Wall

P/N: CE20-WB-05
1 - 99
$32.99
100 +
$25.79
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.

Don't forget the Drill Jig Kit if this is a first time order!

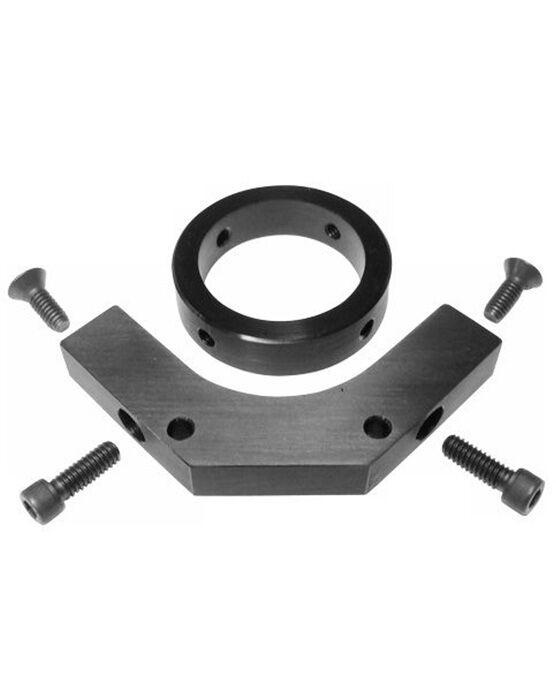

Side Wall Brackets connect to 1", 1.5", and 2" ID carbon tubes and plates. This 90º angle bracket allows for a composite sheet to be added to the carbon tubing to form a wall or enclosure.  Requires tubes with 1/16” wall thickness.

  • Used to attach panels to tubes
  • Add to a frame and create an enclosure
  • Also doubles as an attachment bracket
Connectors are made of CNC-machined, black anodized, aircraft-grade, 6061-T6 Aluminum.


Matching screws with 170,000 PSI tensile strength are provided in the kit.

Allen wrench not supplied.

Additional Information

P/N CE20-WB-05
Brand Rock West Composites
Length 0
Panel Thickness 0.000000
Weight 0.212

CAD Models

1.0" SYSTEM

Download PDF

STP Download



1.5" SYSTEM

Download PDF

STP Download



2.0" SYSTEM

Download PDF

STP Download
