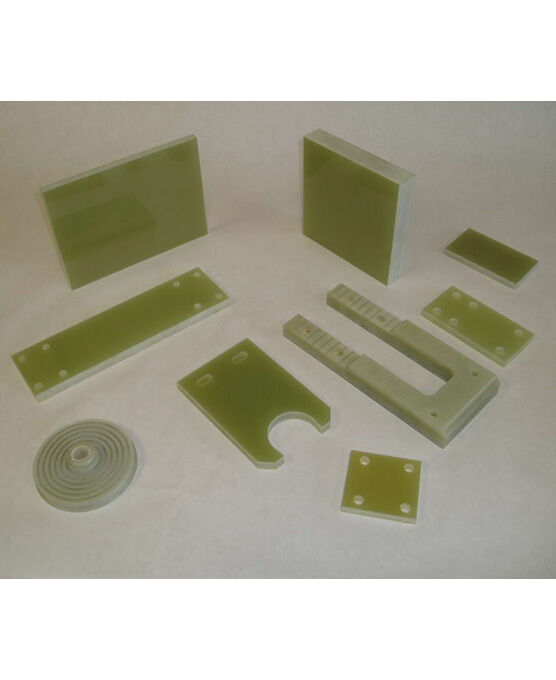

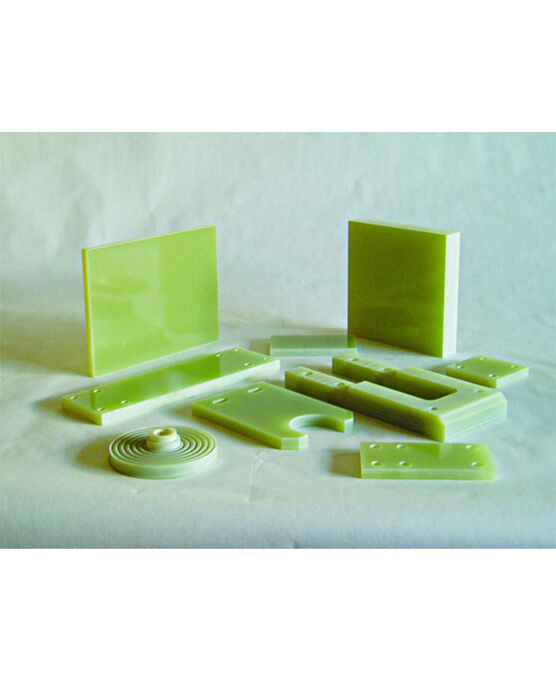

An industry standard material for use in many different industries, it has excellent machinibility and electrical insulative properties. This glass/epoxy laminate offers a superior strength/size ratio and self-extinguishing properties. In addition to its high mechanical strength, it exhibits good dielectric loss and electrical properties under a range of dry and humid conditions. The flame resistance is Class I in accordance with NEMA test method 7.11.

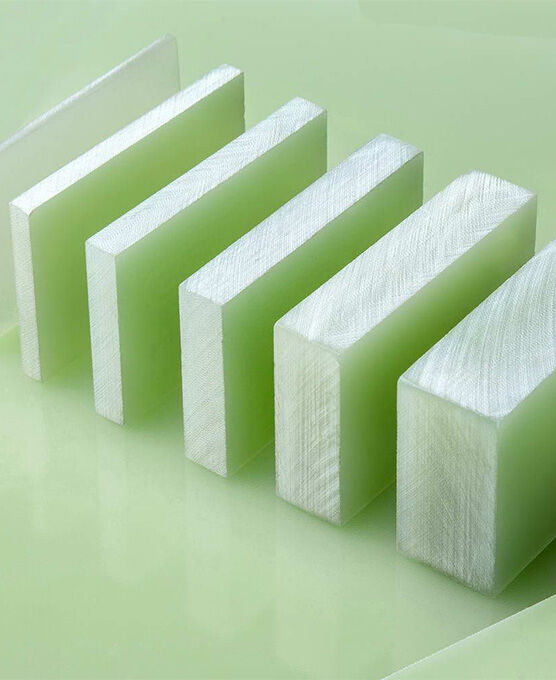

G-10 / FR-4 plates are rated at 140 degrees C (284 degrees F) continuous operating temperature. Being thermosets, no melting will occur with these grades; however, charring will be observed after extended periods above the temperature rating. It also has a flammability rating of 94V-0.
G-10 is also one of the most widely used non-metallics in cryogenic applications. This material should be noted as G-10CR and component specification should be reviewed before calling out.
Applications
Application | General Purpose |
---|---|
Materials | Fiberglass |
Pattern | Unidirectional |
Color | 913 |
Finish | Gloss / Gloss |
Panel Thickness | 1.000000 |
Plate / Panel Size | 24" x 24" / 609.6mm x 609.6mm |
Width | 24.0 |
Thickness | 1.0 |
Length | 24 |
Length (max continuous) | 24.0 |
Areal Density | 9.36 |
Volumetric Density | 0.065 |
Weight | 37.44 |
Primary Fiber | E-Glass |
HTS - Harmonized Tariff Code | 6815.13.0000 |
ECCN | 1A002 |
USMCA Criterion | B |
All laminate properties and mechanical calculations are based on Classical Lamination Theory and should be used as a reference only. Rock West Composites does not guarantee these properties or calculations.
Avg EX Young's Modulus | 4196000.0 |
---|---|
Avg EY Young's Modulus | 4196000.0 |
GXY Shear Modulus | 700000.0 |
X Tensile Yield Strength | 50000.0 |
X Compressive Yield Strength | 50000.0 |
Y Tensile Yield Strength | 50000.0 |
Y Compressive Yield Strength | 50000.0 |
XY Shear Strength | 13300.0 |
CTEX | 5.35E-06 |
CTEY | 5.35E-06 |
Poisson's Ratio vXY | 0.083 |
Poisson's Ratio vYX | 0.083 |
