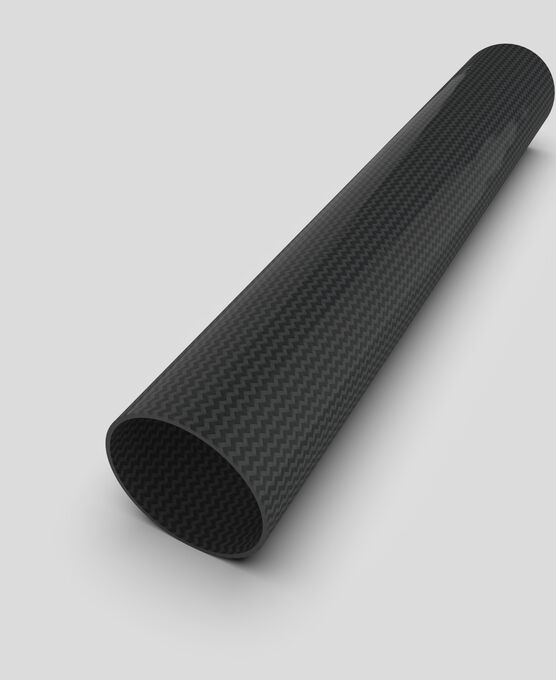

Pullbraided Carbon Fiber Tube - Smooth Matte - 1.063(27mm) x 1.181(30mm) x 78.74 (2m)

productname image number 0
productname image number 1
productname image number 2
productname image number 3
productname image number 4
productname image number 0
productname image number 1
productname image number 2
productname image number 3
productname image number 4
P/N: PBRT-2730
Availability: 3

27mm x 30mm x 2000mm

P/N: PBRT-2730
Availability: 3
1 - 9
$189.99
10 +
$184.89
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

The Available Quantity listed above is what we have in inventory for this item. Provided there has not been a prior sale, you can expect an order placed today, for this quantity or less, to ship the next business day. For quantities over the number available:
Lead time for shipment of this product is estimated to be at least 4 weeks. Large quantity orders may require more time.

Rock West Composites newest product is a blend of pultruded unidirectional tubes with a new process called pullbraiding. If the profile has to withstand stresses in more than one direction, standard pultrusion is not sufficient. These tubes are manufactured by rotating the fibers during the pultrusion process and then cured.

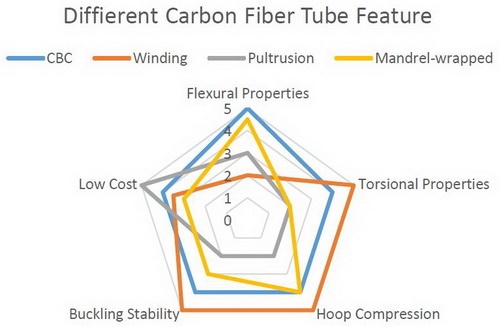

Features & Benefits

Pullbraided Tubing Features

Additional Information

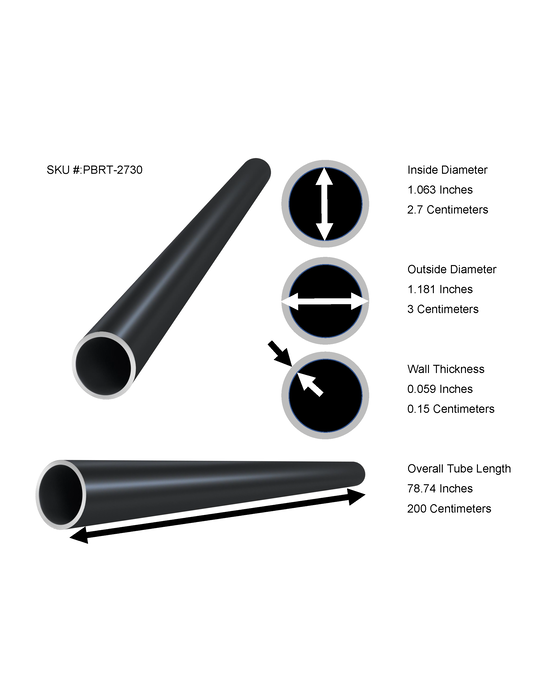

P/N PBRT-2730
Finish Sanded Smooth Matte
HTS - Harmonized Tariff Code 6815.13.0000
Inside Dimension 1.063
Length 78.74
Materials Standard Modulus Carbon
OD 1.181
Outside Dimension 1.181
Thickness 0.059
Weight 0.95

Layup Orientation



SKU:  PBRT-XXXX Tubing Line-up

[0°nt/90°mt/±45°t]
±45° bi-axial CF briad
90° unidirectional CF
0° unidirectional CF

  • 0° Fibers maximize bending stiffness. Consider bending the tube over your knee.
  • 45° Fibers maximize torsional stiffness. Typically plied together in an opposing manner, i.e. ±45°. Consider twisting the tube like a vehicle's driveshaft.
  • 90° Fibers maximize crushing stiffness and generally assist in overall tube strength. Consider laying the tube on the ground and stepping on it.
