Pullbraided Carbon Fiber Tube - Smooth Matte - 1.969 (50mm) x 2.126 (54mm) x 78.74 (2m)

P/N: PBRT-5054
Available Now: 3

50mm x 54mm x 2000mm

P/N: PBRT-5054
Available Now: 3
1 - 9
$317.99
10 +
$312.89
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.

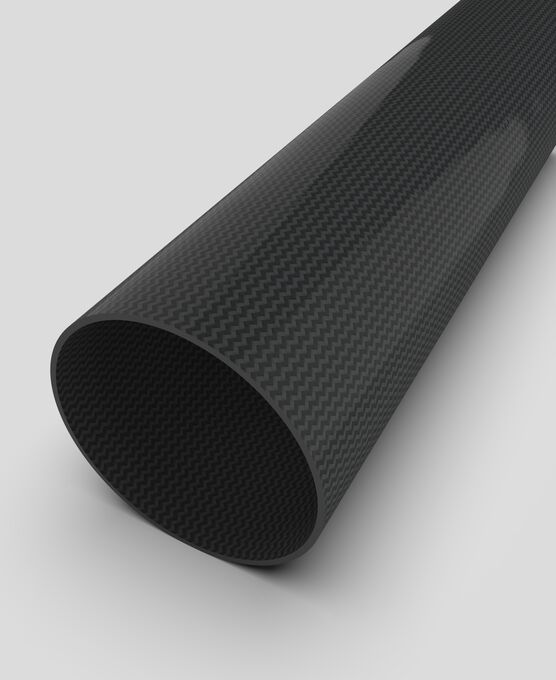

Rock West Composites newest product is a blend of pultruded unidirectional tubes with a new process called pullbraiding. If the profile has to withstand stresses in more than one direction, standard pultrusion is not sufficient. These tubes are manufactured by rotating the fibers during the pultrusion process and then cured.

Additional Information

Shape Round
Materials Standard Modulus Carbon
Pattern Braided
Finish Sanded Smooth Matte

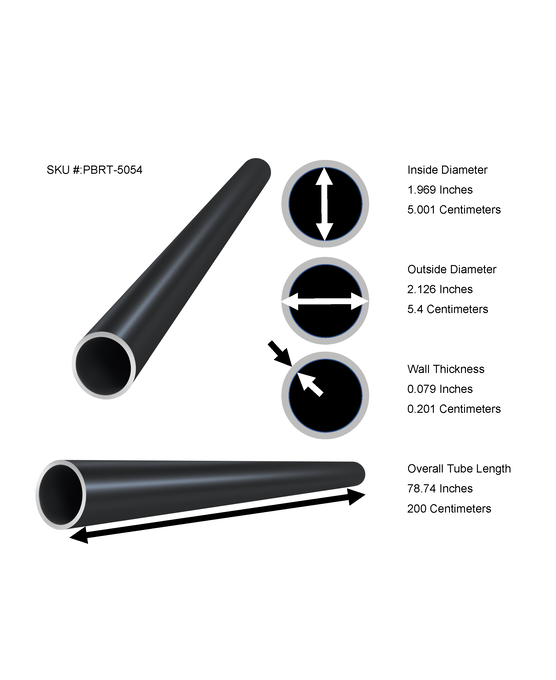

Inside Diameter 1.969
Outside Diameter 2.126
Thickness 0.079
Length 78.74
Length (max continuous) 78.74
Weight 2.27
Resin / Chemistry / Polymer Type Epoxy
HTS - Harmonized Tariff Code 6815.13.0000
Contact Info
Pullbraided Carbon Fiber Tube - Smooth Matte - 1.969 (50mm) x 2.126 (54mm) x 78.74 (2m)
P/N PBRT-5054
