Rod - Ellipse - Pultruded Unidirectional - 0.315 x 78 Inch- BLOWOUT

P/N: R-ELP-315
Availability: 1

P/N: R-ELP-315
Availability: 1
1 - 14
$56.99
15 - 36
$46.79
37 - 91
$43.59
92 +
$41.39
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Description

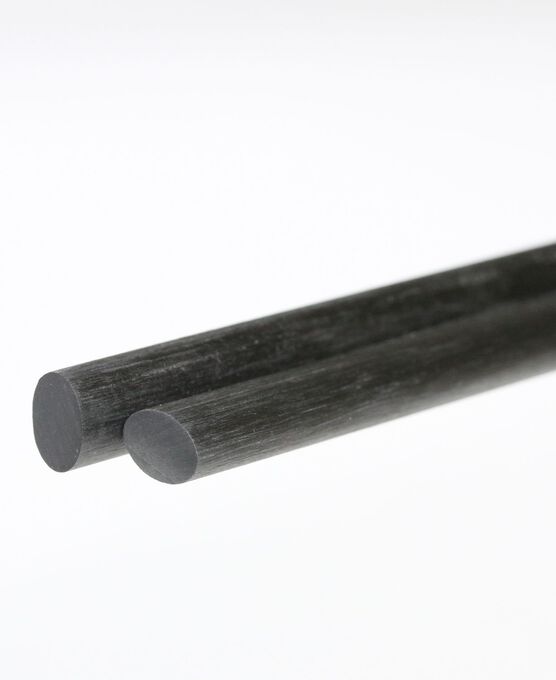

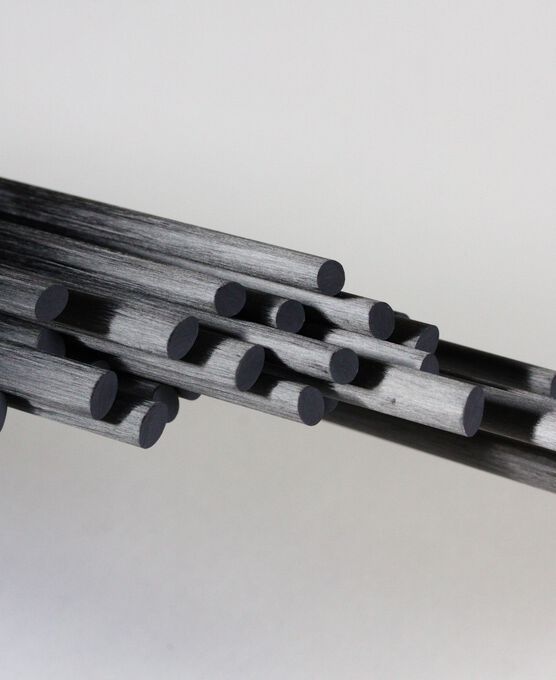

Pultruded ellipse unidirectional solid rods are manufactured through a pultrusion process. This carbon fiber rod measure at 0.22" on the small ellipse side and 0.315" on the large ellipse side. The length is 78” long. Because f the fiber orientation this tube provides strength and rigidity along the axis of rod. Pultruded tube is great for reinforcing structures. The pultrusion process guarantees an accurate design and measurement control, perfectly aligned fibers and a smooth surface.

The pultrusion process shows great similarities with the extrusion of e.g. aluminum and thermoplastic plastics. However, instead of injection molding the plastic material, the pultrusion process continuously pulls fibers from rolls, which are then wetted with a matrix material (usually a thermosetting resin like epoxy resin). Subsequently, they are pulled through a heated die, which determines the shape of the profile. Polymerisation of the resin takes place in the die, forming a rigid profile with a diameter corresponding to that of the die and a length that is endless, in theory.

The technology is suitable for all types of fibers or a combination of fiber types. A high fiber-volume content is feasible, which makes it possible to reach a high specific rigidity and strength of the profiles. The serial character and the controllability of the process ensure a good price/quality ratio.

Quick Facts For Pultruded Unidirectional 0.315" Ellipse Rod

Values provided here may vary slightly

  • Resin: High performance bisphenol A epoxy resin.
  • Standard Tg: 248 °F.
  • Standard Carbon Fiber: Torayca T700 or equivalent
  • Tensile strength (virgin fiber): 4900 Mpa
  • Tensile modulus (virgin fiber): 230 Gpa
  • Ultimate elongation: 2 %

Additional Information

P/N R-ELP-315
Application Bending / Tension
Finish Sanded Smooth Matte
Length 78
Materials Standard Modulus Carbon
OD 0.315
Outside Dimension 0.315
Shape Elliptical Rod
Weight 0.2438

Technical Data

We cannot supply test or strength data for this product.

Material Data Sheet

Download PDF

Tolerances

Diameter Tolerance: +/- 0.007"
