Rod - Rectangle/Strip - Pultruded Unidirectional - 0.040 x 0.166 x 96 Inches - BLOWOUT

productname image number 0
productname image number 0
P/N: R-REC-166-L96
Available Now: 66

P/N: R-REC-166-L96
Available Now: 66
1 - 9
$10.99
10 +
$9.79
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.

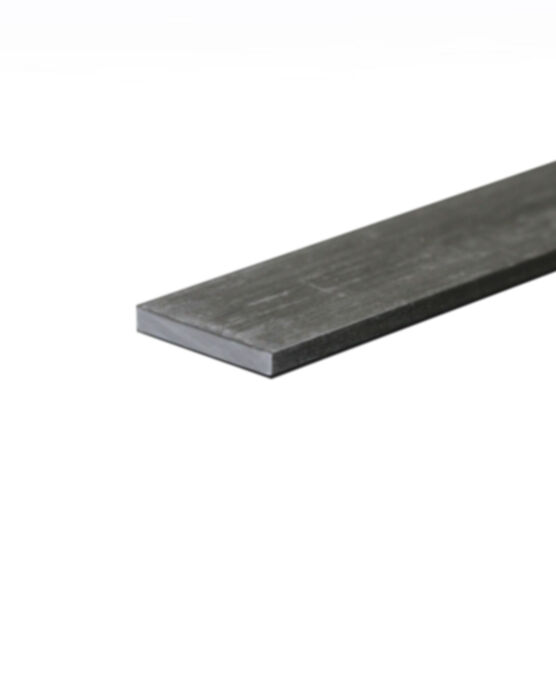

R-REC-166 Pultruded Solid Unidirectional Strip

Solid pultruded strips are great for reinforcing and strengthening small structures due to their flat surfaces. Like all other pultruded items Rock West offers, they perform incredibly well in bending and tension (pulling) applications since all the fibers are oriented along the length of the strip.

This strips features are:

  • 0.125" Thick
  • 0.166" Wide
  • 96" Long
  • smooth surface.

For detailed specifications please review the individual products technical tab.

Additional Information

Application Bending / Tension
Materials Standard Modulus Carbon
Pattern Unidirectional
Color Black
Finish Pultruded
Width 0.166
Thickness 0.04
Length 96
Length (max continuous) 96.0
Linear Density 0.004
Volumetric Density 0.055
Weight 0.035
Primary Fiber Toray T700S
Primary Resin / Hardener Bisphenol-F

Technical Specifications

Minimum Properties Solid Strip (Rectangle):

  • Tensile Strength: 320 ksi / 2.34 GPa
  • Compressive Strength: 270 ksi / 1.90 GPa
  • Fiber Volume: 65%
  • Matrix Material: Bisphenol Epoxy Vinyl Ester

Tolerances

Diameter Tolerance: +/- 0.007"
