This rod provides strength and rigidity along the long axis. This pultruded rod is great for reinforcing structures. The pultrusion process guarantees an accurate design and measurement control, perfectly aligned fibers and a smooth surface. Carbon fiber pultrusion is similar to the extrusion of aluminum and thermoplastics. However, instead of injection molding the plastic material, the pultrusion process continuously pulls fibers from rolls, which are then wetted with a matrix material (usually a thermosetting resin like epoxy resin). Subsequently, they are pulled through a heated die, which determines the shape of the profile. Polymerisation of the resin takes place in the die, forming a rigid profile with a diameter corresponding to that of the die and a length that is endless, in theory.
Quick Facts For Pultruded Unidirectional Rods
Values provided here may vary slightly:
Resin: <40% High performance bisphenol A epoxy resin. Fiber: >60% Torayca T700 or equivalent Standard Tg: 248 °F Tensile strength (virgin fiber): 4900 Mpa Tensile modulus (virgin fiber): 230 Gpa Ultimate elongation: 2 % Tensile strength at RT is ~2500 MPa.
P/N | R-RND-315 |
---|---|
Application | Bending / Tension |
Finish | Sanded Smooth Matte |
Length | 78 |
Materials | Standard Modulus Carbon |

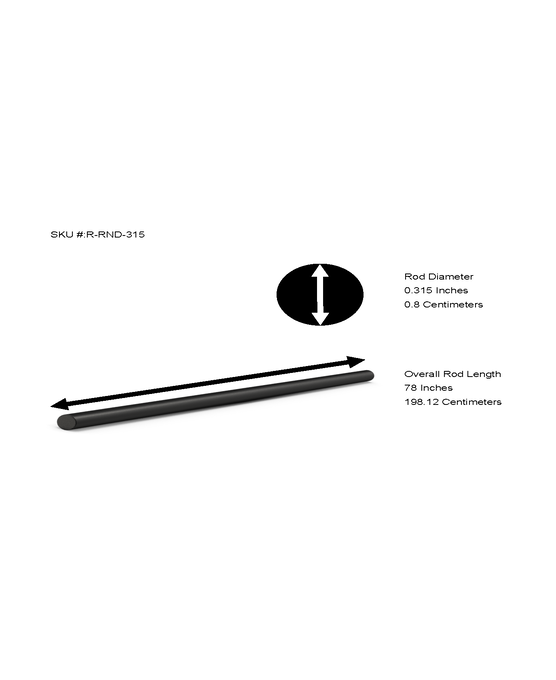

OD | 0.315 |
Outside Dimension | 0.315 |
Shape | Round Rod |
Weight | 0.3343 |
Diameter Tolerance: +/- 0.007"
