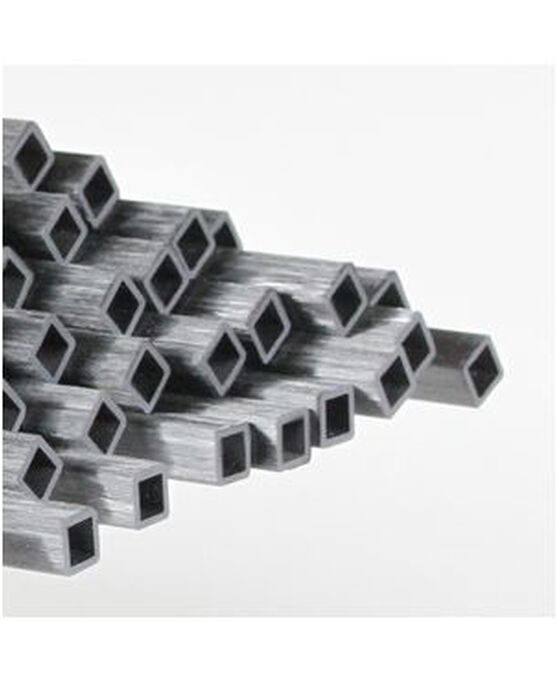

Tube - Square - Pultruded Unidirectional - 0.157 x 0.236 x 78 Inch

Tube - Square - Pultruded Unidirectional - 0.157 x 0.236 x 78 Inch image number 0
Tube - Square - Pultruded Unidirectional - 0.157 x 0.236 x 78 Inch image number 1
Tube - Square - Pultruded Unidirectional - 0.157 x 0.236 x 78 Inch image number 0
Tube - Square - Pultruded Unidirectional - 0.157 x 0.236 x 78 Inch image number 1
P/N: T-SQR-236

P/N: T-SQR-236
1 - 14
$29.99
15 - 36
$24.79
37 - 91
$23.59
92 +
$21.39
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Additional Information

P/N T-SQR-236
Application Bending
Finish Sanded Smooth
Height 0.236
Inside Dimension 0.157
Length 78
Major ID 0.157
Major OD 0.236
Materials Standard Modulus Carbon
Minor ID 0.157
Minor OD 0.236
Outside Dimension 0.236
Shape Square
Thickness 0.039
Wall Thickness 0.040
Width 0.236

Technical Data

Radius of Tubing

The inner and external corner radii are measured by hand with a radius gauge with no tolerance called out.
  • Internal Radius: 5/32”
  • External Radius: 3/16”.

We cannot supply theoretical values for this tube at this time. For specification sheets and other data we can supply please review our Technical Spec page.

Tolerances

STOCK TOLERANCE SHEET

Download PDF

Layup Orientation

We cannot supply any layup details at this time.
