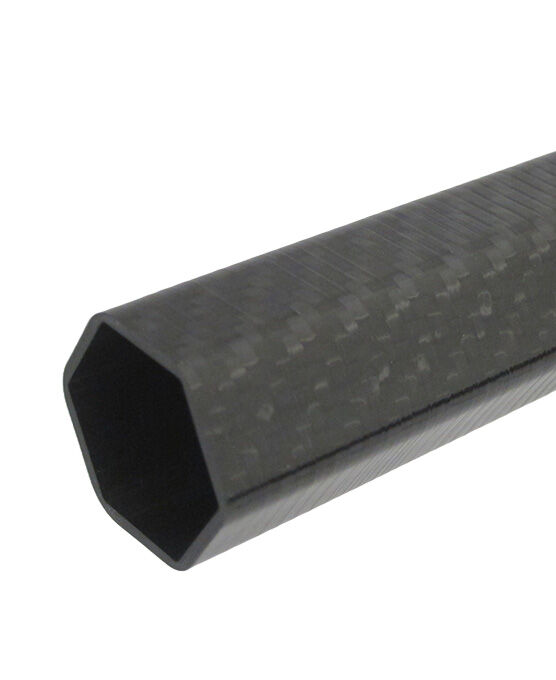

Hexagonal cross section tubing offers fabricators and designers alike the ease of affixing motors, accessories and machined features since there is always a flat surface to work with. Offered in a variety of diameters and wall thicknesses one is bound to find a product that will suit your application. And of course, if you don't see what you need, let us know. We can likely build it.
Unlike metals which have similar properties in all directions (isotropic), the properties of composites are varying, dependent on the orientation of the fibers in each layer.
Roll wrapped tubing is manufactured using multiple layers of pre-preg carbon fiber (and if noted, other) materials. In general each layer is about 0.006 inches thick which means that a tube with a wall thickness of 0.060 inches will typically be composed of 9-10 individual layers of carbon fiber. The number of layers(plys) allows us to vary the orientation of the fibers throughout the thickness, creating a high performance, engineered product.*This diagram illustrates a "generic" layup. The SKU being viewed may not have the layup schedule shown in this diagram. To view this SKU's particular layup please check out the "LAYUP ORIENTATION" tab.
P/N | 25601 |
---|---|
Application | General Purpose |
Finish | Cello Wrap Gloss |
Height | 1.24 |
HTS - Harmonized Tariff Code | 6815.13.0000 |
Inside Dimension | 1.0 |
Length | 66 |
Major ID | 1.0 |
Major OD | 1.24 |
Materials | Standard Modulus Carbon |
Minor ID | 1.0 |
Minor OD | 1.24 |
Outside Dimension | 1.24 |
Shape | Hexagonal |
Wall Thickness | 0.120 |
Weight | 1.59 |
Width | 1.24 |
We cannot supply theoretical values for this tube at this time. For specification sheets and other data we can supply please review our Technical Spec page.
SKU: 25601 Rev F |
||
Ply # | Orientation | Location |
1 | 0 | Inside |
2 | 0 | ↓ |
3 | 45 | |
4 | -45 | |
5 | 45 | |
6 | -45 | |
7 | 0 | |
8 | 90 | |
9 | 90 | |
10 | 0 | |
11 | -45 | |
12 | 45 | |
13 | -45 | |
14 | 45 | |
15 | 0 | |
16 | 0 | |
17 | 0/90 | Outside |
