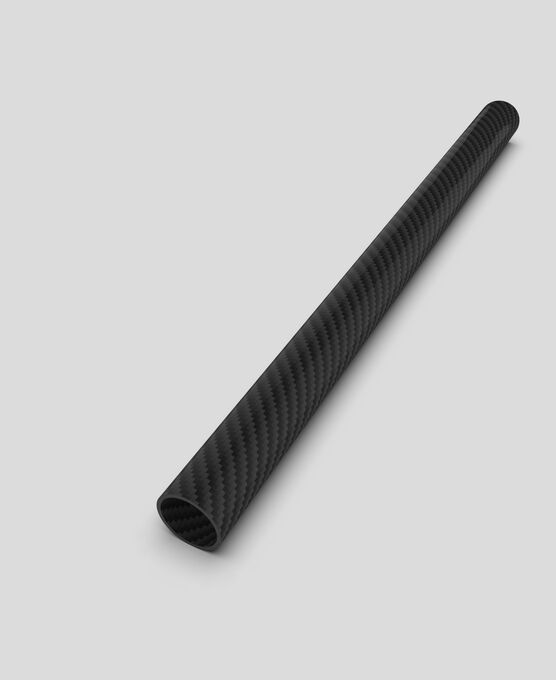

Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 01 - 0.375 (9.52mm) x 0.476 (12.1mm) x 74 Inch (1880mm) (Globally Sourced)

Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 01 - 0.375 (9.52mm) x 0.476 (12.1mm) x 74 Inch (1880mm) (Globally Sourced) image number 0
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 01 - 0.375 (9.52mm) x 0.476 (12.1mm) x 74 Inch (1880mm) (Globally Sourced) image number 1
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 01 - 0.375 (9.52mm) x 0.476 (12.1mm) x 74 Inch (1880mm) (Globally Sourced) image number 0
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 01 - 0.375 (9.52mm) x 0.476 (12.1mm) x 74 Inch (1880mm) (Globally Sourced) image number 1
P/N: 46401-G-DL
Availability: 203

P/N: 46401-G-DL
Availability: 203
1 - 9
$56.99
10 - 49
$46.79
50 - 99
$40.59
100 +
$38.39
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Description

Engineered tubing to the rescue! Use for making a quickly deploy-able tripod assembly, boom pole, and virtually anything else telescoping! This is a single tube. To make a complete telescoping assembly you will have to purchase additional tubes from the INFINITubeV system to create a telescoping pole.

To meet growing market demand, Rock West Composites is now selling an Economy line of tubes and plates. These products provide a lower bar for entry for customers looking to incorporate carbon fiber and other composites into their projects. This low-cost line is sourced internationally and is best utilized in applications that do not have engineering critical features, but has the convenience of shipping from our Utah operation for expedient delivery.

Our premium Rock West tubes and plates are manufactured to our exacting standards in-house. The result is greater strength and stiffness with guaranteed consistent layups, tolerances, and test results. If you need help deciding what is right for you, please contact us and we’ll assist you as best we can.

Features & Benefits

  • High gloss, smooth painted surface. (Can be sanded)
  • We suggest the use UHMW low friction tape to maintain snug fit. It is possible to use the same UHMW tape to prevent tubes from pulling apart at full extension (see graphic below).
  • Fabric outer ply minimize "breakout" typically associated with drilling into composites while giving the tubes the traditional carbon fiber look.
  • Fabric fiberglass scrim inner ply (~0.005") allows for higher abrasion resistance than carbon fiber as well as reduces fiber splintering typically associated with drilling / cutting into all carbon tubes.

    • Below are the items required to build a two tube telescoping system;

    • (A) Smaller of the two INFINITubeV tubes
    • (B) Larger of the two INFINITubeV tubes
    • (C):Low Friction Tape

    Low Friction Tape and Infinitube line

    Animated GIF shows the sliding action of the three parts. *Locking Mechanism will vary for each system.




    InfiniTubeTW GIF

    Additional Information

    P/N 46401-G-DL
    Application Telescoping
    Finish Painted Gloss
    HTS - Harmonized Tariff Code 6815.13.0000

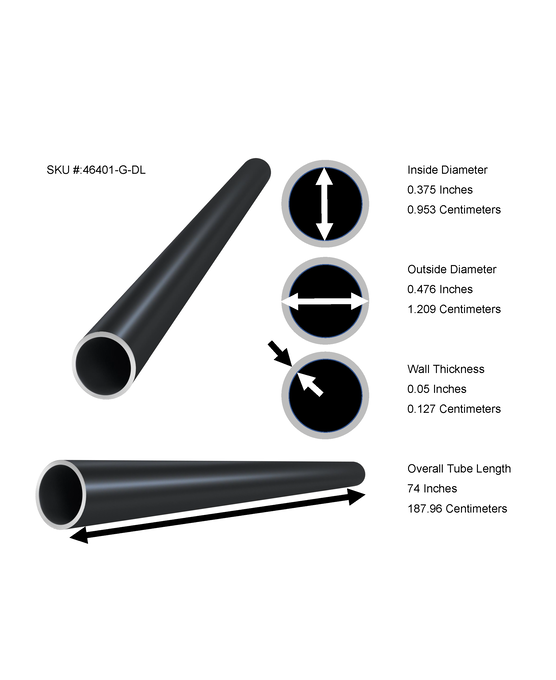

    Inside Dimension 0.375
    Length 74
    Materials Standard Modulus Carbon
    OD 0.476
    Outside Dimension 0.476
    Tensile Modulus, msi 13.5
    Thickness 0.05
    Weight 0.27

    Tolerances

    STOCK TOLERANCE SHEET

    Download PDF
