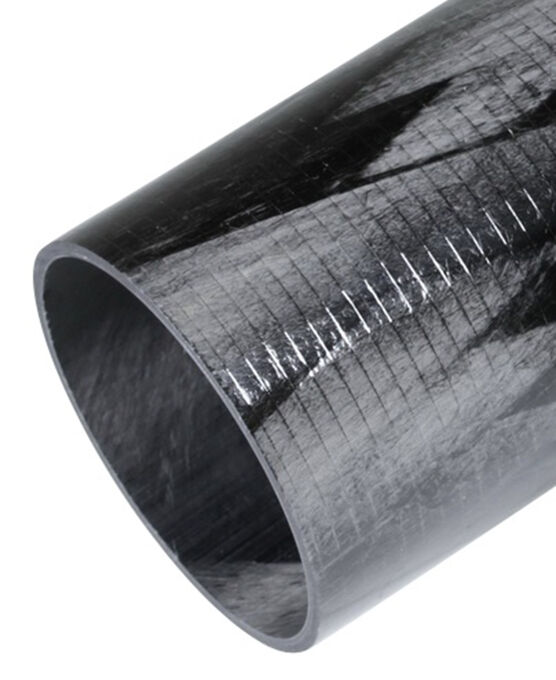

Tube - Filament Wound - Fallas SKU BP6264 Rev C - Unsanded - With step machining as on drawing - 1.875 x ~2.18 x 10.995 (+/-0.005) Inch
1
-
4
$406.99
5
-
9
$149.79
10
+
$120.59
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.
Please note we cannot control the OD of unsanded filament tubing as tightly as the sanded filament tubing. The listed OD is a theoretical value.
Very long continuous fibers add to strength and stiffness. Excellent for torsion, long single-piece tubes, and a unique aesthetic. Most economical for larger scale production.
Additional Information
| Shape | Round |
|---|---|
| Materials | Standard Modulus Carbon |
| Pattern | Filament Wound |
| Finish | Cello Wrap Gloss |
| Inside Diameter | 1.875 |
| Outside Diameter | 2.18 |
| Thickness | 0.152 |
| Length | 10.995 |
| Length (max continuous) | 10.995 |
| Weight | 0.5 |
| HTS - Harmonized Tariff Code | 6815.13.0000 |
Technical Data
We cannot supply theoretical values for this tube at this time. For specification sheets and other data we can supply please review our Technical Spec page.
Layup Orientation
BP6264
| Ply # | Orientation (degrees) | Location |
|---|
- 0° fibers maximize bending stiffness and run along the length of the part. Consider bending a tube over your knee.
- 45° fibers maximize torsional stiffness and are typically plied together in an opposing manner, i.e. ±45°. Consider twisting a tube like a vehicle's driveshaft.
- 90° (or "hoop") fibers maximize crushing stiffness and generally assist in overall durability. Consider laying a tube on the ground and stepping on it.
