Tube - Stock - Fabric - Fallas - 1.50 x 1.62 x 10.0 Inch

productname image number 0
productname image number 1
productname image number 0
productname image number 1
P/N: BP8202
Available Now: 1

Fallas ◾ 1.500" x 1.620" x 10"

P/N: BP8202
Available Now: 1
1 - 5
$75.99
6 - 24
$73.79
25 +
$69.59
Contact Info
Project Details
Quantity must be greater than 1.
or
Please select a valid length.
Precision of Measurement
Please select a tolerance option.
    • ~0.005 reduction on outer diameter (OD)."
    • This removes the outer cello wrap gloss finish.
    • Sand outer diameter to specified thickness.
    • Patterns will likely distort in appearance
    Please select a value within the allowed range.
    Sanding Tolerance Options:
    Please select a tolerance option.

If you are requesting bulk discounts, cutting, or standard sanding services only, we will send you a cart with your product selections. You may enter your shipping information and purchase directly at that time. Please note, the cart will not allow edits to the quote. Any changes will have to be completed by our team. If we do not have enough information to complete your quote we will reach out to you directly. If you are requesting additional services or custom sanding, a team member will reach out to you to finalize a quote.

If you request a custom length you will be charged for a full length item (or items if more than 1 is needed to meet your request) plus a cutting fee. You will then be shipped the item sized to your specification and any remaining length of the orginal item (drops). Sanding also incurs a fee which will be included in the quote. All items that have been sanded or cut may not be returned.

Create a Rock West Composites account to build your own customizations.
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.

You may also need

Features & Benefits

Fabric roll wrapped tubing offers many benefits over uni-directional and even filament wound tubing. That isn't to say it is the best however. Here are a few reasons you may wish to consider fabric roll wrapped tubing for your application.

  • Superior machine ability
  • Much better durability by reducing the potential extent of fiber breakout if drilled, machined or damaged
  • Typical aesthetic associated with carbon fiber products
  • Most "fabric" tubes contain a majority 0° plies in the layup allowing for the most effective bending load support. (whereas filament wound tubes cannot achieve angles less than ~7°

Additional Information

Materials Standard Modulus Carbon
Pattern 3k 2X2 Twill Weave
Finish Cello Wrap Gloss

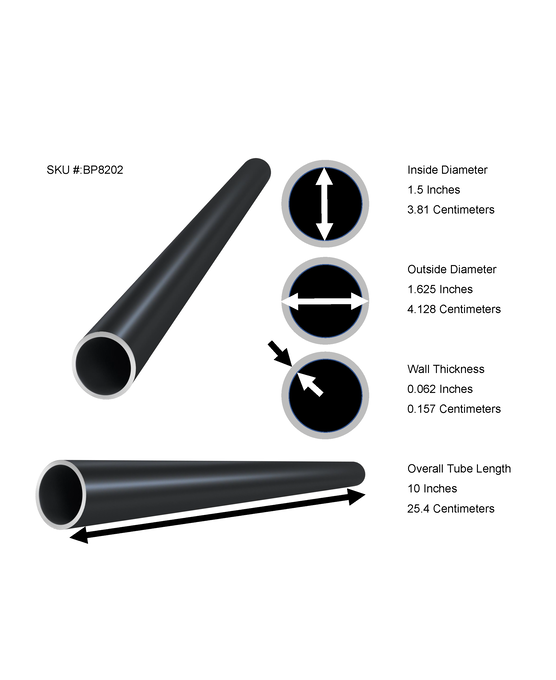

Inside Diameter 1.5
Outside Diameter 1.625
Thickness 0.062
Length 10
Length (max continuous) 10.0
Weight 0.17
HTS - Harmonized Tariff Code 6815.13.0000

Technical Data

We cannot supply theoretical values for this tube at this time. For specification sheets and other data we can supply please review our Technical Spec page.

Tolerances

STOCK TOLERANCE SHEET

Download PDF

Layup Orientation

BP8202

Ply # Orientation (degrees) Location
  • 0° fibers maximize bending stiffness and run along the length of the part. Consider bending a tube over your knee.
  • 45° fibers maximize torsional stiffness and are typically plied together in an opposing manner, i.e. ±45°. Consider twisting a tube like a vehicle's driveshaft.
  • 90° (or "hoop") fibers maximize crushing stiffness and generally assist in overall durability. Consider laying a tube on the ground and stepping on it.
