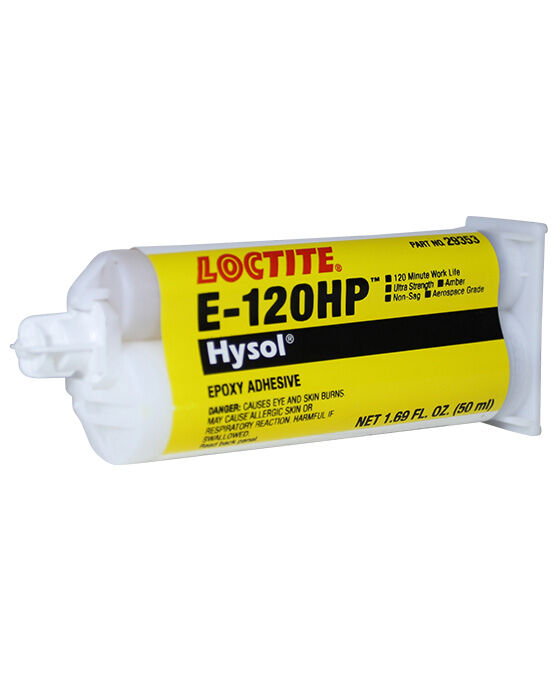

Loctite E-120HP Hysol - 50 ml - 2:1

INSTRUCTIONS - QUICK AND SIMPLE

• Be sure to prepare both surfaces by roughing or sanding. To sand the inner diameter of a carbon fiber tube (or other material) use a properly sized Abrasive Flex Hone.
• Follow this by degreasing the part with isopropyl alcohol or acetone and cleaning thoroughly. It is most common to bond to the ID of our carbon tubes rather than the OD given the tighter dimensional tolerances (+/-0.004” vs. +/-0.012”). 120 grit sand paper should work fine
• Minimize galvanic corrosion between two dissimilar materials (aluminum included) by using Bond Line Controller. Our glass beads come in various diameters and can be mixed into the adhesive / epoxy during mixing. This serves 2 purposes, 1- forces a consistent bond line between two concentric parts and 2- Ensures isolation of the two materials
• Choose the correct size Bond Line Controller - This depends on the gap between your two parts. If you are specifying this gap to a machinist, we would typically recommend a bond line (gap) of around 0.008” to 0.013” and use product #1031 and #1030 respectively. Also, it is recommended for every 3oz. of adhesive you use 2g of Bond Line. *Note - Some parts may be forced into position if the bond line bead matches the bond gap identically. This is not always necessary to ensure concentricity.
• Some of our adhesives (titled "Dual Cartridge") require both a gun (Applicator) and dispensing nozzles (Mix Nozzles).

 INSTRUCTIONS - LONG AND THOROUGH (click to view and print)
