Telescoping Tubes

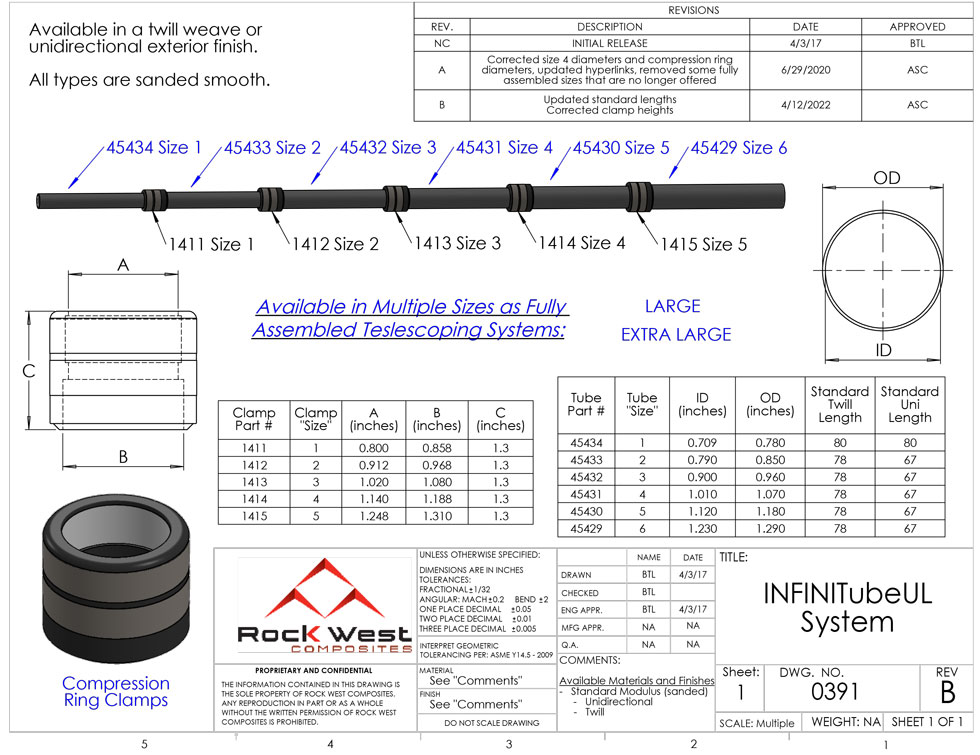

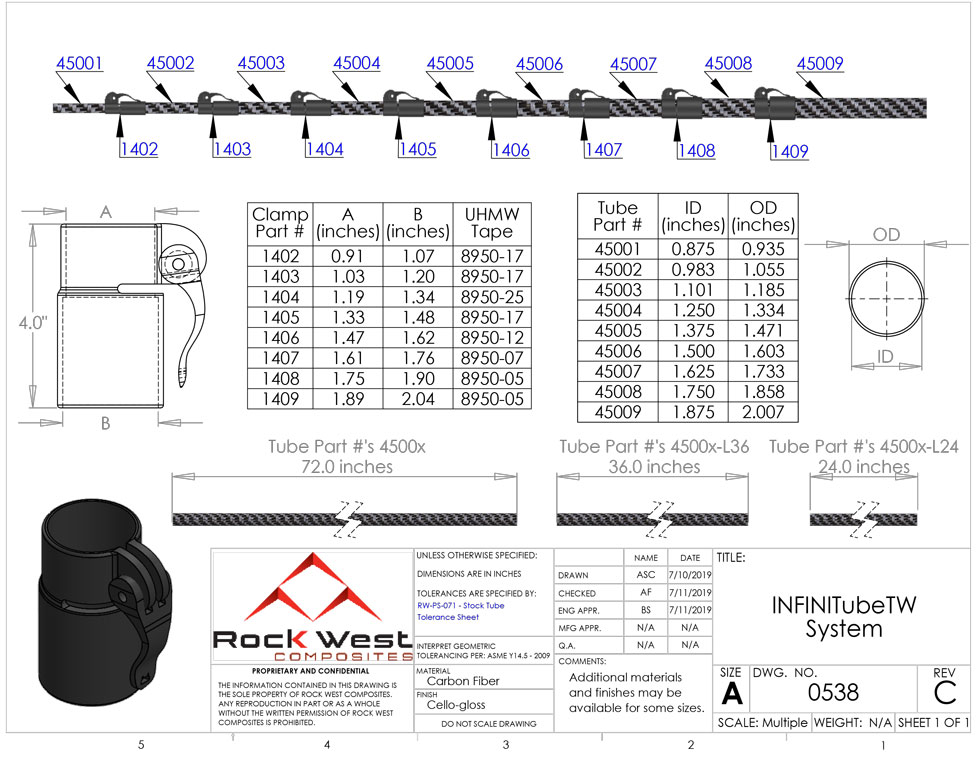

Rock West Composites proudly offers the most innovative system of telescoping tubing products using round carbon fiber and fiberglass tubing. You can Build Your Own using our assorted Tubes below (Telescoping Tubes) or purchase Fully Assembled Telescoping Tubes. INFINITube is available in three tubing lineups: TW (Tapered Wall); V (Versatile); and UL (Ultra Light). The INFINITube family is the ideal system for creating collapsible and open booms.
Ultralight Telescoping Tubes - Fully Assembled
P/N: ULTRALIGHT_TELESCOPING_TUBES_ASSEMBLED
INFINITubeV Telescoping Tubes - Fully Assembled
P/N: INFINITUBEV-FULLY-ASSEMBLED
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 00 - 0.25 (6.35mm) x 0.352 (8.94mm) x 74 Inch (1880mm) (Globally Sourced)
P/N: 46400-G-DL Available Now: 116
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 00 - 0.250 X 0.352 X 62 Inch
P/N: 46400 Available Now: 33
Tube - Round - INFINITubeV - Intermediate Modulus - Spread Tow - Size 00 - 0.250 X 0.35 X 62 Inch
P/N: 46400-IM Available Now: 6
Tube - Round - INFINITubeV - High Modulus - Plain Weave - Size 00 - 0.250 X 0.352 X 62 Inch
P/N: 46400-HM Available Now: 3
Tube - Round - INFINITubeV - Ultra High Modulus - Unidirectional - Size 00 - 0.250 X 0.355 X 62 Inch
P/N: 46400-UHM-UNI Available Now: 4
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 01 - 0.375 X 0.476 X 62 Inch
P/N: 46401 Available Now: 126
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 01 - 0.375 X 0.476 X 91 Inch - Globally Sourced
P/N: 46401-LONG-G-DL Available Now: 181
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 01 - 0.375 (9.52mm) x 0.476 (12.1mm) x 74 Inch (1880mm) (Globally Sourced)
P/N: 46401-G-DL Available Now: 191
Tube - Round - INFINITubeV - High Modulus - Plain Weave - Size 01 - 0.375 X 0.476 X 62 Inch
P/N: 46401-HM Available Now: 3
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 01 - 0.375 X 0.476 X 91 Inch
P/N: 46401-LONG Available Now: 60
Tube - Round - INFINITubeV - Intermediate Modulus - Spread Tow - Size 01 - 0.375 X 0.476 X 62 Inch
P/N: 46401-IM Available Now: 2
Tube - Round - INFINITubeV - Intermediate Modulus - Spread Tow - Size 02 - 0.500 X 0.60 X 74 Inch
P/N: 46402-IM Available Now: 9
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 02 - 0.50 (12.7mm) x 0.601 (15.3mm) x 74 Inch (1880mm) (Globally Sourced)
P/N: 46402-G-DL Available Now: 205
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 02 - 0.500 X 0.604 X 74 Inch
P/N: 46402 Available Now: 66
Tube - Round - INFINITubeV - Intermediate Modulus - Spread Tow - Size 03 - 0.625 X 0.727 X 74 Inch
P/N: 46403-IM Available Now: 21
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 03 - 0.625 (15.88mm) x 0.731 (18.6mm) x 74 Inch (1880mm) (Globally Sourced)
P/N: 46403-G-DL Available Now: 67
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 03 - 0.625 X 0.731 X 74 Inch
P/N: 46403 Available Now: 10
Tube - Round - INFINITubeV - High Modulus - Plain Weave - Size 03 - 0.625 X 0.731 X 74 Inch
P/N: 46403-HM Available Now: 25
Tube - Round - INFINITubeUL - Standard Modulus - 2x2 Twill Sanded - Size 1 - 0.709 x 0.780 x 80 Inch
P/N: 45434-SM Available Now: 2
Tube - Round - INFINITubeUL - Standard Modulus - Unidirectional Sanded - Size 1 - 0.709 x 0.780 x 80 Inch
P/N: 45434 Available Now: 68
Tube - Round - INFINITubeUL - Standard Modulus - Unidirectional Sanded - Size 2 - 0.790 x 0.850 x 67 Inch
P/N: 45433 Available Now: 74
Tube - Round - INFINITubeUL - Standard Modulus - 2x2 Twill Sanded - Size 2 - 0.790 x 0.850 x 78 Inch
P/N: 45433-SM-LONG Available Now: 26
Tube - Round - INFINITubeV - Intermediate Modulus - Spread Tow - Size 04 - 0.750 X 0.85 X 74 Inch
P/N: 46404-IM Available Now: 3
Tube - Round - INFINITubeV - High Modulus - Plain Weave - Size 04 - 0.750 X 0.856 X 74 Inch
P/N: 46404-HM Available Now: 5
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 04 - 0.750 X 0.856 X 74 Inch
P/N: 46404 Available Now: 14
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 04 - 0.75 (19.05mm) x 0.856 (21.7mm) x 74 Inch (1880mm) (Globally Sourced)
P/N: 46404-G-DL Available Now: 79
Tube - Round - INFINITubeV - High Modulus - Plain Weave - Size 04 - 0.750 X 0.856 X 30 Inch
P/N: 46404-HM-L30
Tube - Filament Wound - Fiberglass - Sanded - INFINITubeV - Size 04 - 0.750 x 0.856 x 12 Inch - - Available up to 108 Inches
P/N: 46404-FWG Available Now: 102
Tube - Round - INFINITubeTW - Standard Modulus - Twill - Size 1 - 0.875 x 0.935 x 72 Inch
P/N: 45001 Available Now: 64
Tube - Round - INFINITubeUL - Standard Modulus - 2x2 Twill Sanded - Size 3 - 0.900 x 0.960 x 78 Inch
P/N: 45432-SM-LONG Available Now: 19
Tube - Round - INFINITubeUL - Standard Modulus - Unidirectional Sanded - Size 3 - 0.900 x 0.960 x 67 Inch
P/N: 45432 Available Now: 54
Tube - Round - INFINITubeV - Intermediate Modulus - Spread Tow - Size 05 - 0.875 X 0.981 X 74 Inch
P/N: 46405-IM Available Now: 22
Tube - Filament Wound - Fiberglass - Sanded - INFINITubeV - Size 05 - 0.875 x 0.981 x 12 Inch - - Available up to 84 Inches
P/N: 46405-FWG Available Now: 38
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 05 - 0.875 (22.23mm) x 0.981 (24.9mm) x 74 Inch (1880mm) (Globally Sourced)
P/N: 46405-G-DL Available Now: 113
Tube - Round - INFINITubeV - High Modulus - Plain Weave - Size 05 - 0.875 X 0.981 X 74 Inch
P/N: 46405-HM Available Now: 23
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 05 - 0.875 X 0.981 X 74 Inch
P/N: 46405 Available Now: 37
Tube - Round - INFINITubeTW - Ultra High Modulus - 1k Plain Weave - Size 02 - 0.983 x 1.052 X 72.0 IN
P/N: 45002-UHM Available Now: 1
Tube - Round - INFINITubeTW - Standard Modulus - Twill - Size 2 - 0.983 x 1.055 x 72 Inch
P/N: 45002 Available Now: 34
Tube - Round - INFINITubeUL - Standard Modulus - Unidirectional Sanded - Size 4 - 1.010 x 1.070 x 67 Inch
P/N: 45431 Available Now: 9
Tube - Round - INFINITubeUL - Standard Modulus - 2x2 Twill Sanded - Size 4 - 1.010 x 1.070 x 78 Inch
P/N: 45431-SM-LONG Available Now: 1
Tube - Round - INFINITubeV - Intermediate Modulus - Spread Tow- Size 06 - 1.000 X 1.097 X 74 Inch
P/N: 46406-IM Available Now: 38
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 06 - 1.000 X 1.106 X 36 Inch
P/N: 46406-L36 Available Now: 1
Tube - Round - INFINITubeV - Standard Modulus - Twill - Size 06 - 1.000 X 1.106 X 74 Inch
P/N: 46406 Available Now: 163
Tube - Round - INFINITubeV - Standard Modulus - Twill Painted Gloss - Size 06 - 1.000 (25.4mm) x 1.102 (28mm) x 74 Inch (1880mm) (Globally Sourced)
P/N: 46406-G-DL Available Now: 88
Tube - Round - INFINITubeV - High Modulus - Plain Weave - Size 06 - 1.000 X 1.106 X 74 Inch
P/N: 46406-HM Available Now: 66
Tube - Filament Wound - Standard Modulus - Sanded - INFINITubeV - 1.00 x 1.106 x 12 Inch - - Available up to 120 Inches
P/N: 46406-FWC Available Now: 26
Tube - Filament Wound - Fiberglass - Sanded - INFINITubeV - 1.00 x 1.106 x 12 Inch - - Available up to 120 Inches
P/N: 46406-FWG Available Now: 86
Tube - Round - INFINITubeUL - Standard Modulus - Unidirectional Sanded - Size 5 - 1.120 x 1.180 x 67 Inch
P/N: 45430 Available Now: 122
Tube - Round - INFINITubeUL - Standard Modulus - 2x2 Twill Sanded - Size 5 - 1.120 x 1.180 x 78 Inch
P/N: 45430-SM-LONG Available Now: 19
Tube - Round - INFINITubeTW - Standard Modulus - Twill - Size 3 - 1.101 x 1.185 x 72 Inch
P/N: 45003 Available Now: 6
Tube - Round - INFINITubeV - Intermediate Modulus - Spread Tow - Size 07 - 1.125 X 1.22 X 74 Inch
P/N: 46407-IM Available Now: 3
